DRO 200T Readout Operations
9

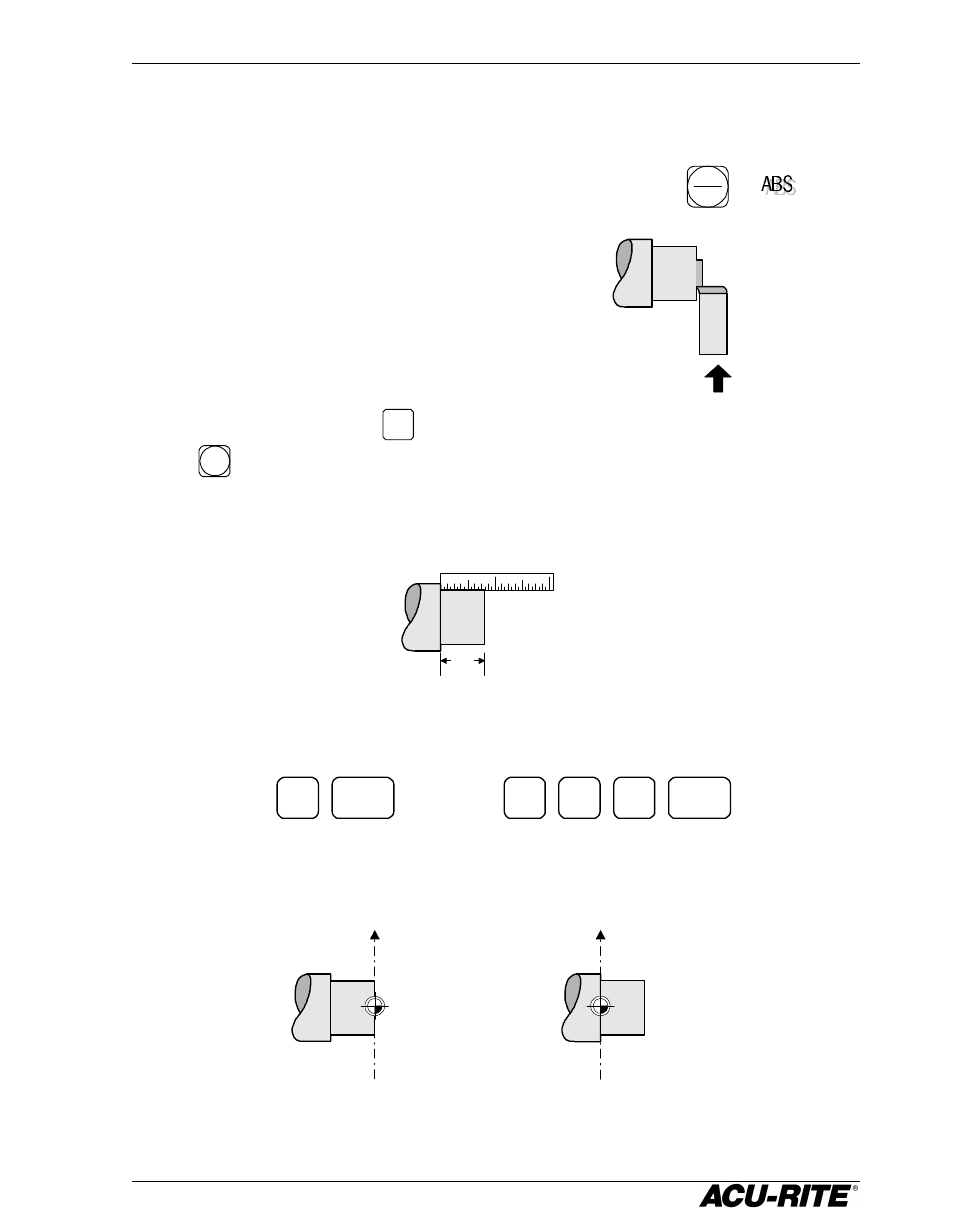

Setting Absolute Zero with the Tool under Load
Longitudinal Axis
1.
Make sure that the absolute position is displayed.
2.
Machine the face of the workpiece.
3.
While the tool is still contacting the
workpiece, press the
ZERO key for the appropriate axis, then the
LOCK
AXIS
key. The readout will lock this tool position in the display,
even if you move the tool.
4.
Move the tool away and measure the face location, if required .
5.
Enter the face location.
.83
X
8 3
ENTER
.
If you want zero offset from
the face of the workpiece
0
ENTER
X
If you want zero on the
face of the workpiece
ABS
INCR
