Please follow these preparation guide lines.
• Understand your mounting requirements.
• Mount with lip seals down and away from the work area.
• Brackets should be kept as short as possible and rigid.
• Surfaces must be in good condition, clean, and free of dirt.
Remove paint from machined mounting surfaces.
• Alignment brackets must not be removed until instructed.
• Machine travel can not exceed the encoder measuring length.
• Either limit machine travel or obtain correct length scale.
• Determine cable exit direction before installing.
• To change cable exit direction; remove base and rotate 180°. • Never mount with lip seals upward or towards work area.
3 ACU-RITE ®

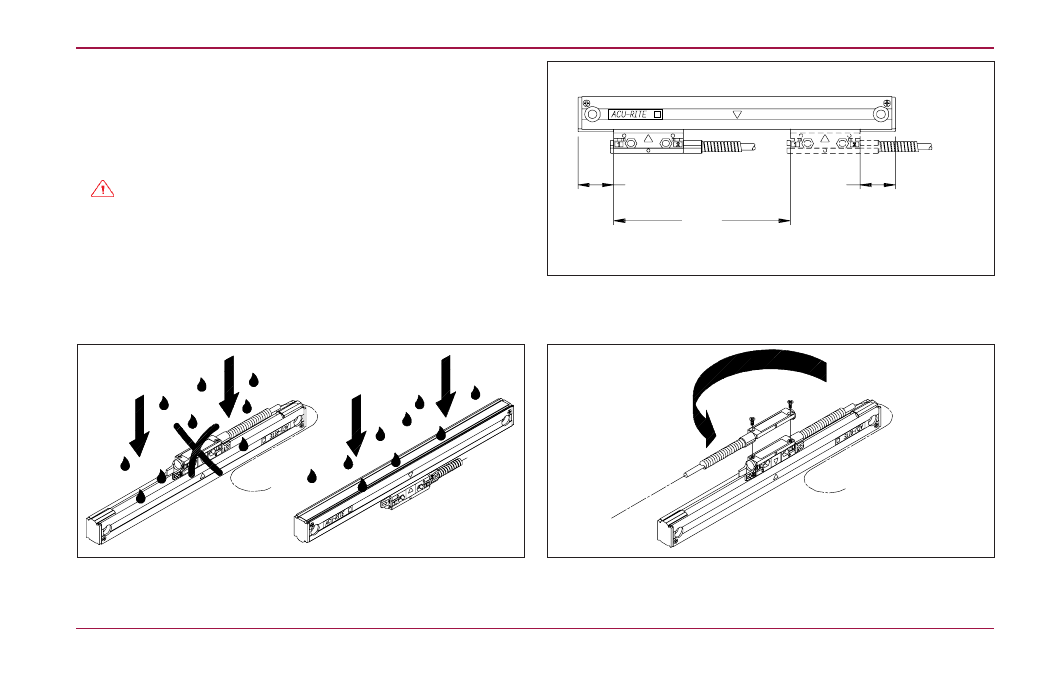

ENC150 Mounting Preparation
“L” = Measuring length
+ 1.75” nominal
over travel
“L”
1.150 1.150
Cable direction
Rotate reading head
base 180°
