ACU-RITE ® 14
Electrical Shielding ENC 150
Connect a ground wire from the terminal on the back of the read-
out to the machine or earth ground. Attach a ground wire from
the machine to a solid earth ground.

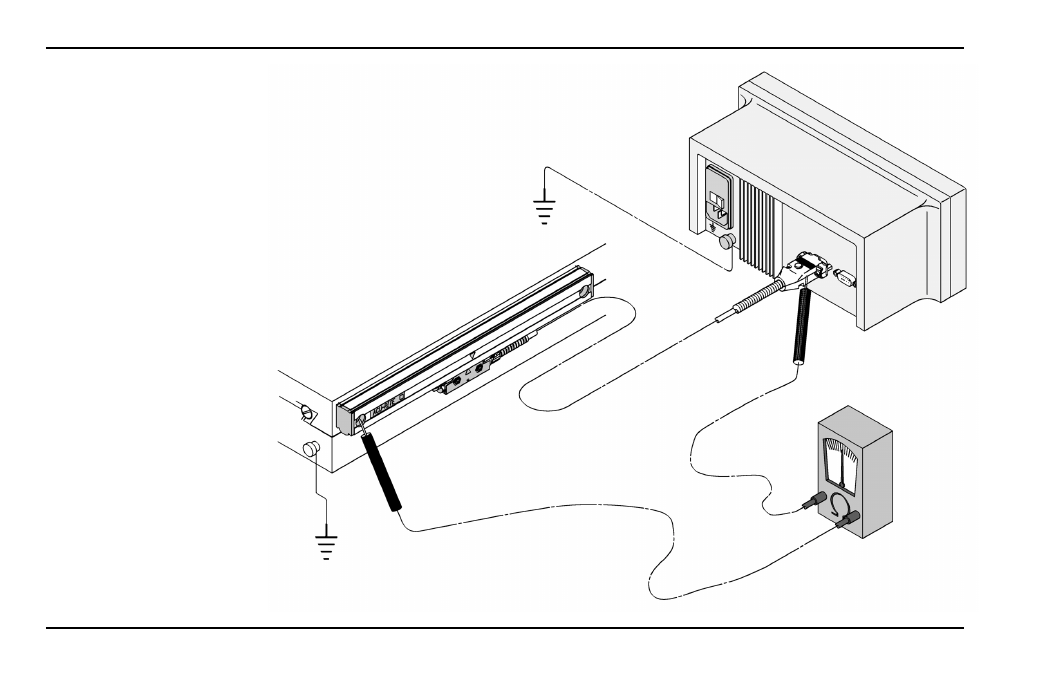

With the encoder attached to the machine and the cable con-
nected to the readout, check shielding by measuring resistance
between connector housing and scale unit. Desired value: 1
Ω Ω Ω Ω Ω
max.
