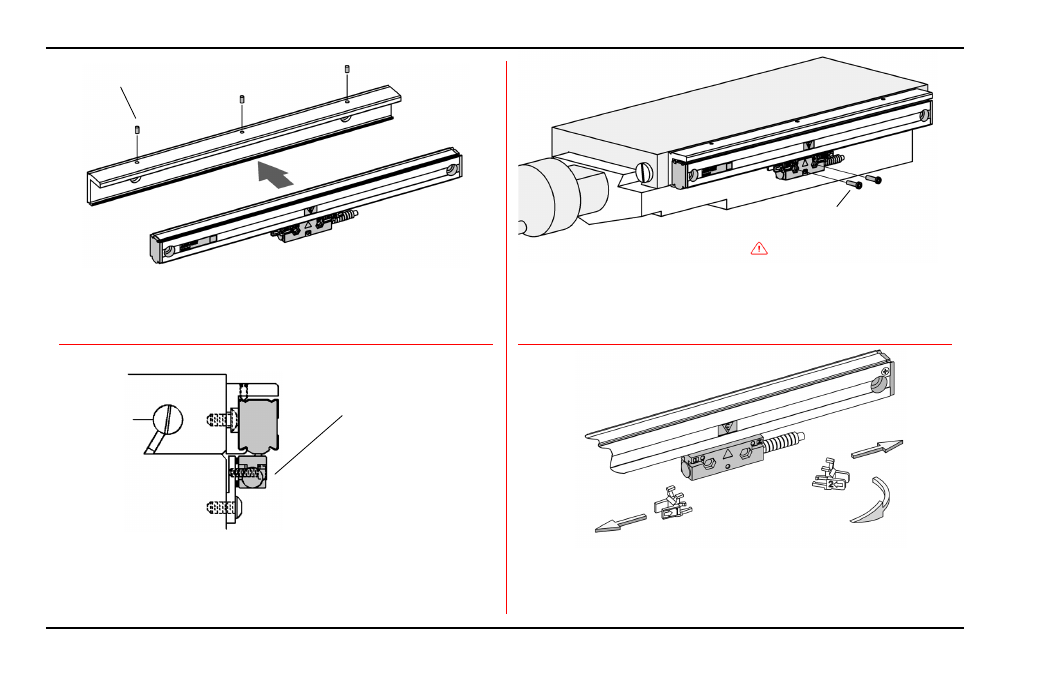

• Insert the encoder into the spar.
• Center the encoder from end to end with the spar.
• Lock in place by tightening the M4 set screws. • Attach the bracket to the machine.
• Align the reading head mounting holes with the bracket holes.
• Attach head to bracket / Set leveling screws / Secure fasteners.
• To locate the reading head bracket, attach it to the reading head.
• Center the axis and mark the bracket mounting holes.
• Remove the bracket, drill / tap holes for 1/4-20 (M6).
M4 x 8mm set screws
8-32 x 5/8” SHCS
(M4 x 16mm)
Do not tighten prior to adjusting
leveling set screws.
ACU-RITE ® 12
Reading head bracket
8-32 x 5/8” SHCS
(trim if necessary)
Spar Installation Procedure ENC 150
• Slide the brackets away from the reading head.
• Remove the alignment brackets and save for future use.
• Proceed to page 13, “Checking Your Installation”.
Alignment bracket removal
Slide brackets away from reading head and cable.
Twist 45°
