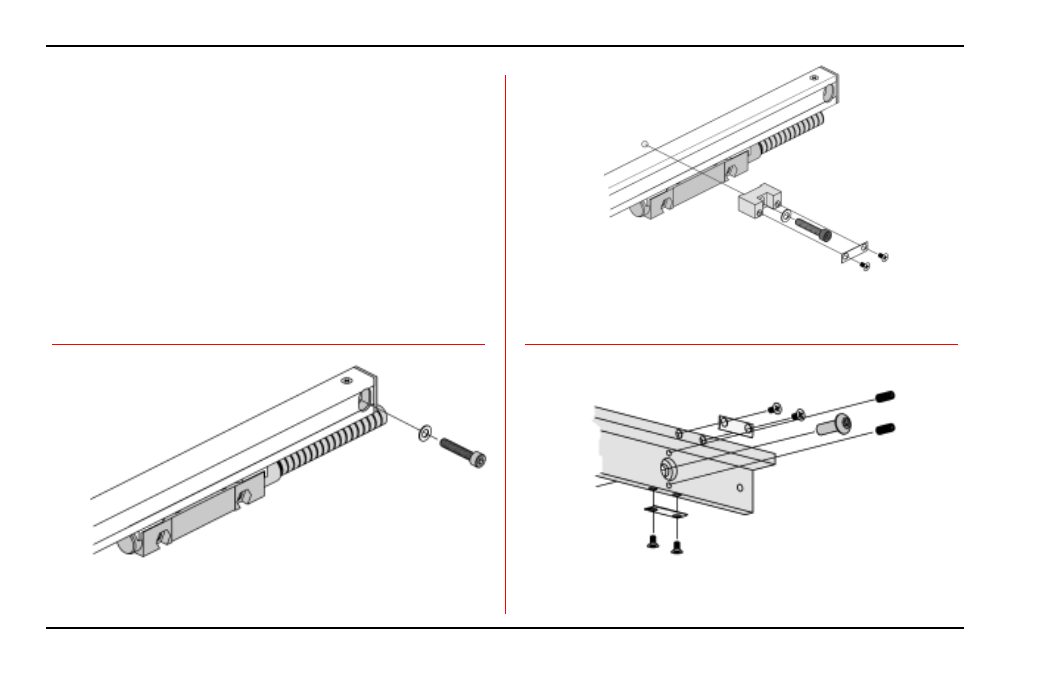

Mounting Requirements MicroScale
Mounting options can be adapted to machine mounting surfaces
using spacers, standoffs, and leveling screws.
• Measuring length and mechanical configuration of your equipment
determines your options.
• Length related mounting options shown.
• Backup spar mounting optional for all lengths 18” or less.
• Mount the backup spar following the same procedure as required
for mounting without a backup spar, using the same tolerances.
• 7” and smaller: End mounting holes with encoder mounted to a
continuous flat surface, or with center surface on same plane as
end mounting surfaces.
• 20” and longer: Backup spar required.
• 8” to 18”: End mounting holes with center support.
ACU-RITE ® 6
End mounting holes
Center support
assembly
Encoder
retaining clip
Spar leveling
screws
Upper and lower clip
assembly typical
Backup spar
mounting
Spar
fastener
