13 ACU-RITE ®

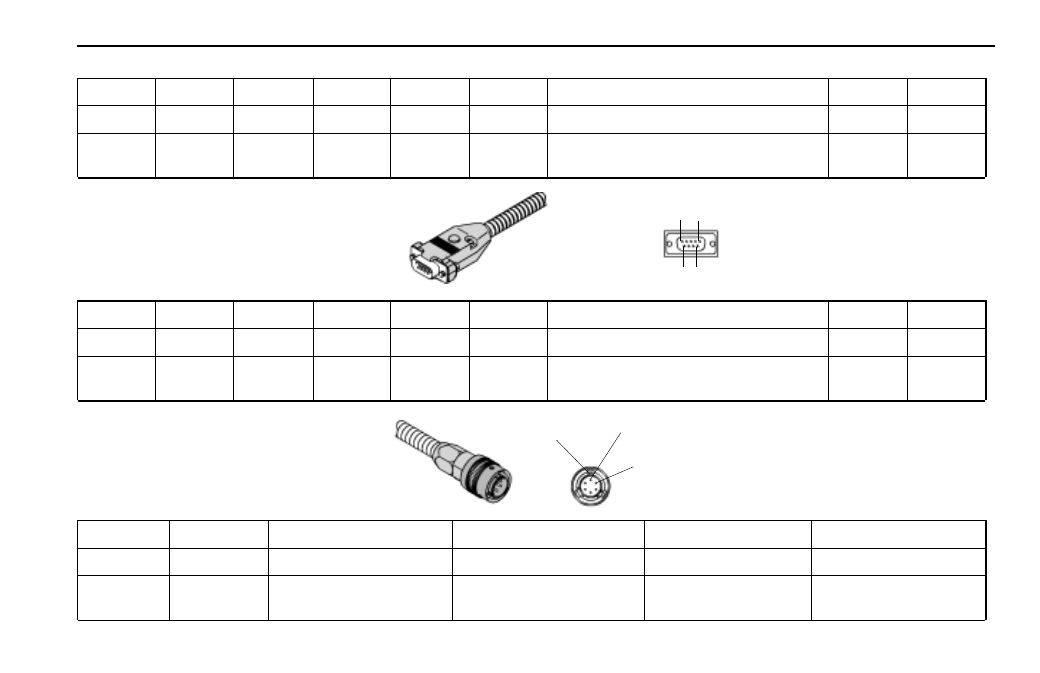

MicroScale Output Signals and Pin-Outs
Digital Differential
Digital single ended
Analog Differential
A
B
Large key
1
6 9
5
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9
N/C Green Yellow Blue Red White Brown Pink Gray
N/C Channel Channel Channel Channel Ground Vcc, + 5.1 Channel Channel
A+ A- B+ B- ± 0.1 VDC @ 140mA max. R+ R-
Pin A Pin B Pin C Pin D Pin E Pin F
Green Blue Brown White Drain Pink
Channel A Channel B Vcc, + 5.1 Common (power supply Shield, reading head Channel R
± 0.1 VDC @ 140mA max. and return signal return) casting ground (Reference Mark)
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9
N/C Green Yellow Blue Red White Brown Pink Gray
N/C Channel Channel Channel Channel Ground Vcc, + 5.1 Channel Channel
A+ A- B+ B- ± 0.1 VDC @ 140mA max. R+ R-
