uu Maintenance Under the Hood u Engine Compartment Covers *
Main
tenan
ce
Engine Compartment Covers *

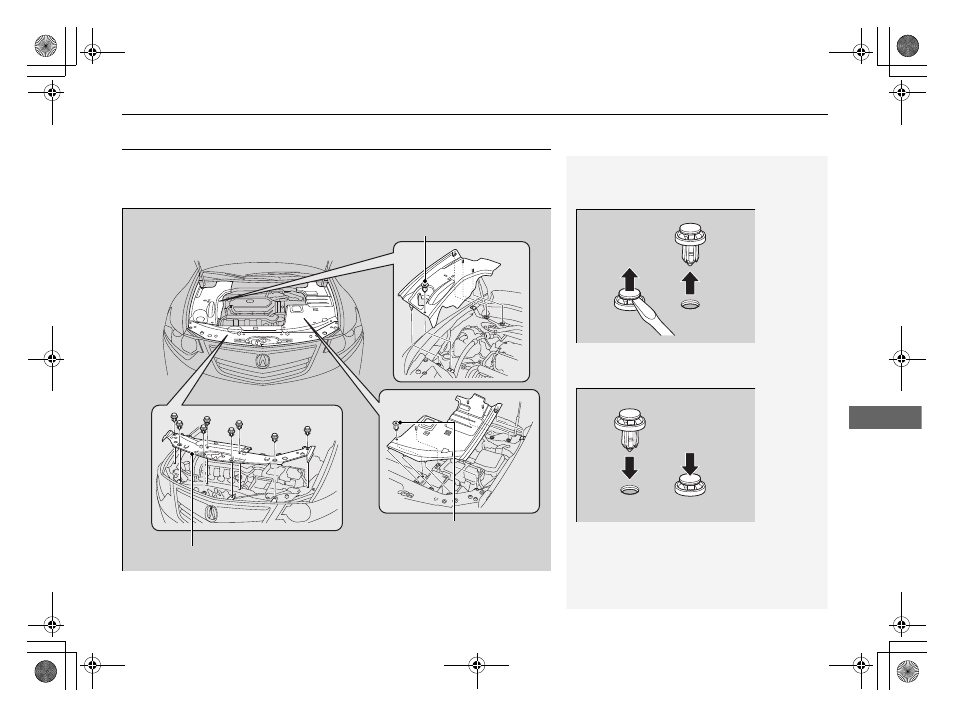

The component parts in the engine compartment are protected by three covers.
You may need to remove the covers when you perform certain maintenance work.
To remove the covers: 1 Engine Compartment Covers *
Insert a flat-tip screwdriver, lift and remove the
central pin to remove the clip.
Insert the clip with the central pin raised, and push
until it is flat.
Push until the
pin is flat
Right Engine Compartment Cover
Remove the holding clips
Left Engine Compartment Cover
Remove the holding clips
Bulkhead Cover Remove the holding clips
* Not available on all models
