Using The Scan Tool
3 – 12 • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
3
Connecting The Scan Tool
To diagnose a vehicle, connect the OBD II Cable to the Scan Tool.
If you just want to power up the tool to do self-tests, code lookup, review
or printing data from the last vehicle tested, then you do not need to
attach the OBD II Cable. The internal battery provides power for this
.

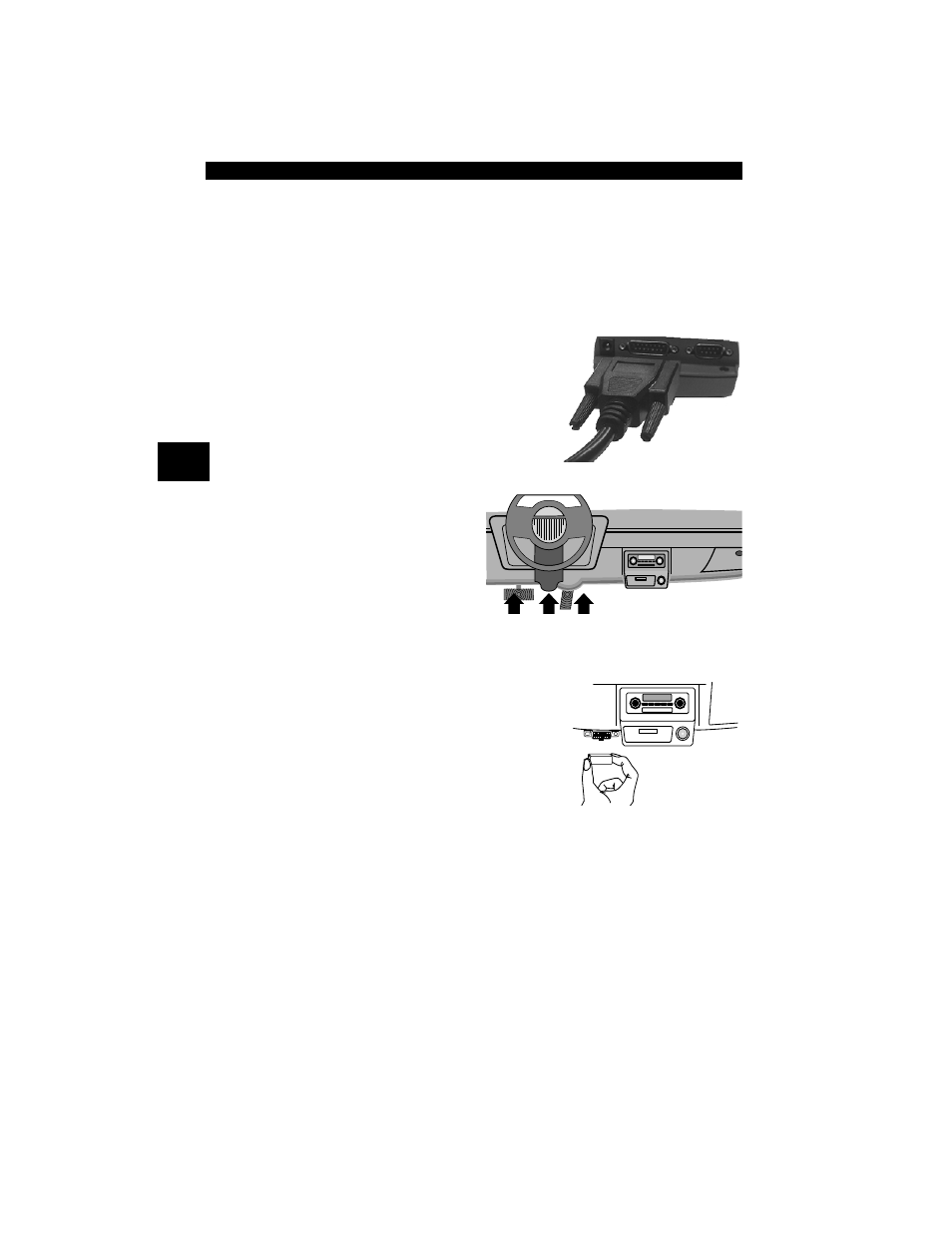

1.Connect OBD II Cable to Scan Tool
•Make sure pins are not bent.
2.Find DLC on vehicle.
•Look under the dashboard
on the driver’s side of the
vehicle.
•If the DLC is not located
under the dashboard, a
label should be there telling
the location.
3.Remove DLC cover if required.
4.Connect OBD II Cable to vehicle.
•Make sure pins are not bent.
Diagnostic
Connector
