SECTION 6—REAR WHEELS
26
Part No.1125095
SECTION 6—REAR WHEELS
ƽ WARNING
After any adjustments, repair or service and before use, make sure all attaching
hardware is tightened securely. Otherwise, injury or damage could result.
CAUTION
As with any vehicle, the wheels and tires should be checked periodically for cracks
and wear, and should be replaced.
Removing/Installing Rear Wheels
NOTE: For this procedure, refer to FIGURE 6.1.
1. Remove the dust cap (if applicable), hex screw and locknut that secure the rear wheel
and axle spacer to the transport chair.
2. Repeat STEP 1 for the opposite rear wheel.
3. To reinstall the rear wheels onto the transport chair, reverse STEPS 1-2.
NOTE: Make sure the axle spacer is between the rear wheel and the transport chair frame.

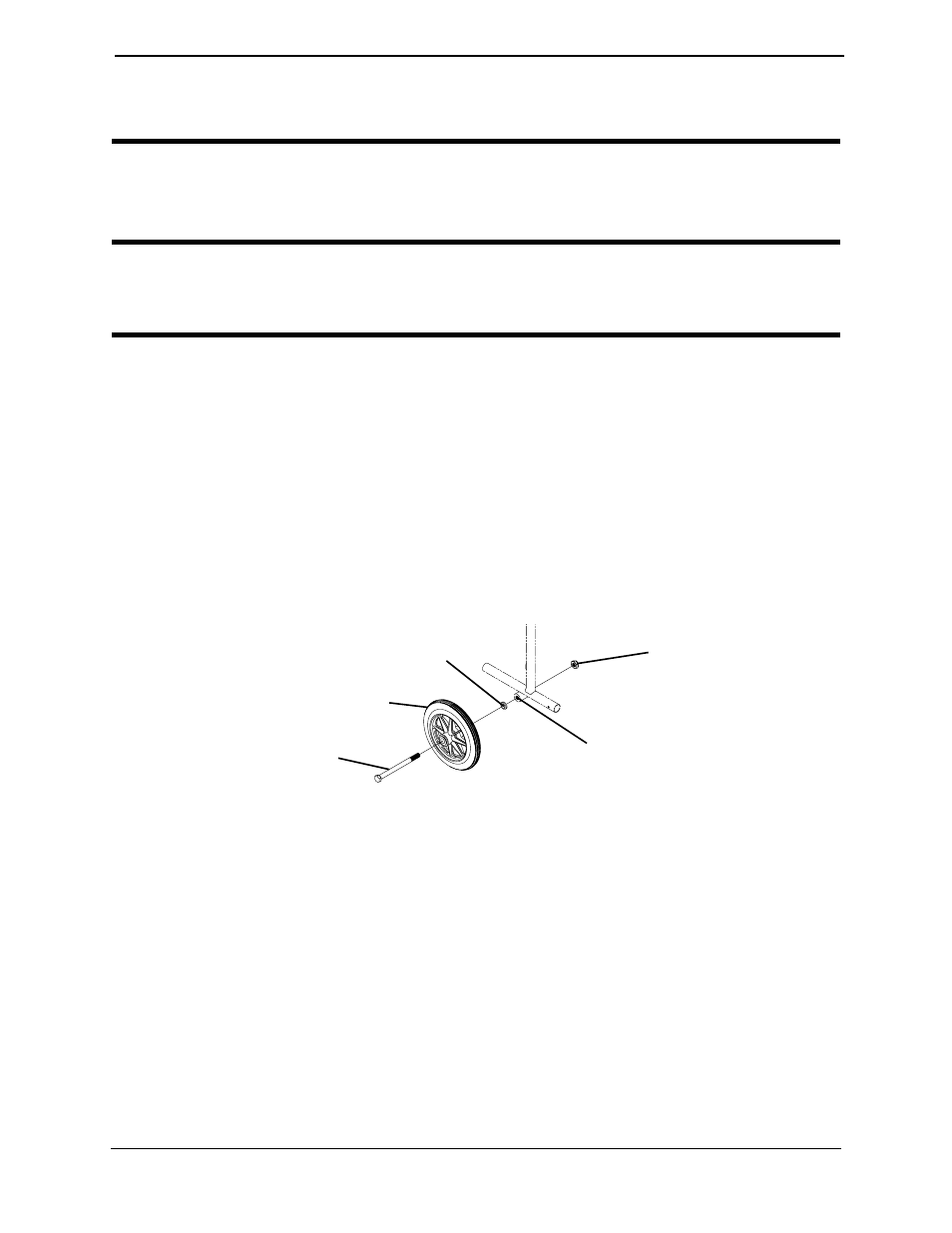

FIGURE 6.1 Removing/Installing Rear Wheels
Hex Screw
Rear Wheel
Axle Spacer
Axle Mounting
Hole
Locknut
NOTE: Rear wheel shown for Invacare Transport and Lightweight Transport. Dust cap for
Bariatric Transport and Lite Transport not shown.
