SECTION 5—BACK
24
Part No.1125095
SECTION 5—BACK
ƽ WARNING
After any adjustments, repair or service and before use, make sure all attaching
hardware is tightened securely. Otherwise, injury or damage could result.
Unfolding/Folding the Fold-Down Back
NOTE: For this procedure, refer to FIGURE 5.1.
Folding
1. Disengage the release mechanism on the back canes.
2. Pull the handles down.
Unfolding
ƽ WARNING
When unfolding the back, ensure all occupant's and/or assistant’s body parts are
away from the folding mechanism. Otherwise, pinching and injury may occur.
Make sure the release levers are securely locked in place before using the transport
chair.
1. Pull up on the two back canes until the release mechanisms lock in place.
NOTE: There will be an audible click.
2. Pull on the handles to make sure the back is locked in place.

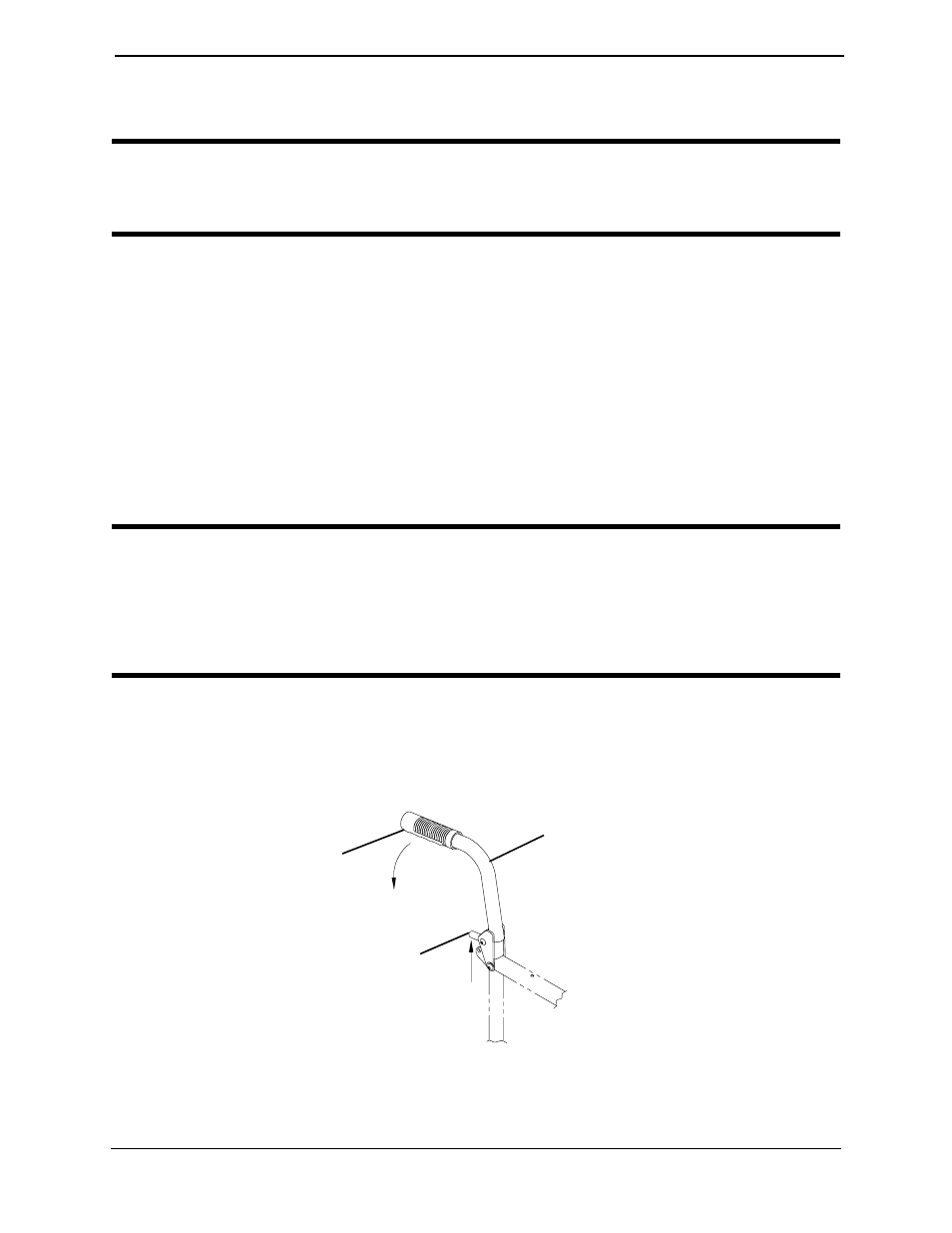

FIGURE 5.1 Unfolding/Folding the Fold-Down Back
Handle
Release Mechanism
Back Cane
NOTE: Handle shown for the Transport and the Lightweight Transport.
