9
EverGo User Manual
4. Gently insert the battery(s) into
the battery compartment located
on top of the device. Before
inserting the battery(s), be certain
that the battery connector on the
bottom of the battery lines up
with the arrow located next to
the battery slot and the Philips
Respironics logo faces the inside
of the device . Pull back the plastic
retainer to allow the battery to fit
properly.
5. If your device uses a second battery,
you may remove or insert the
secondary battery using the small
flap on the top of the carrying
case to gain access to the battery
compartment, shown here. Refer to
the diagram under the flap which
shows how the battery is inserted.
Again, the Philips Respironics
logo should face the inside of the
device.
6. After the battery(s) is inserted, check to make sure it is level with or
slightly below the top of the plastic case. When fully inserted, the
plastic retainer tab holds the battery in place. If the battery extends
above the top gray surface, it may be in backwards. Remove it and
insert it correctly. Do not force the battery.
7. Zip the case closed and keep
it zipped during use.
8. Touch the screen once
to verify that the battery
symbol(s) is visible. If you do
not see battery symbol(s), the
battery(s) has been inserted
incorrectly. Reinsert it if
necessary.

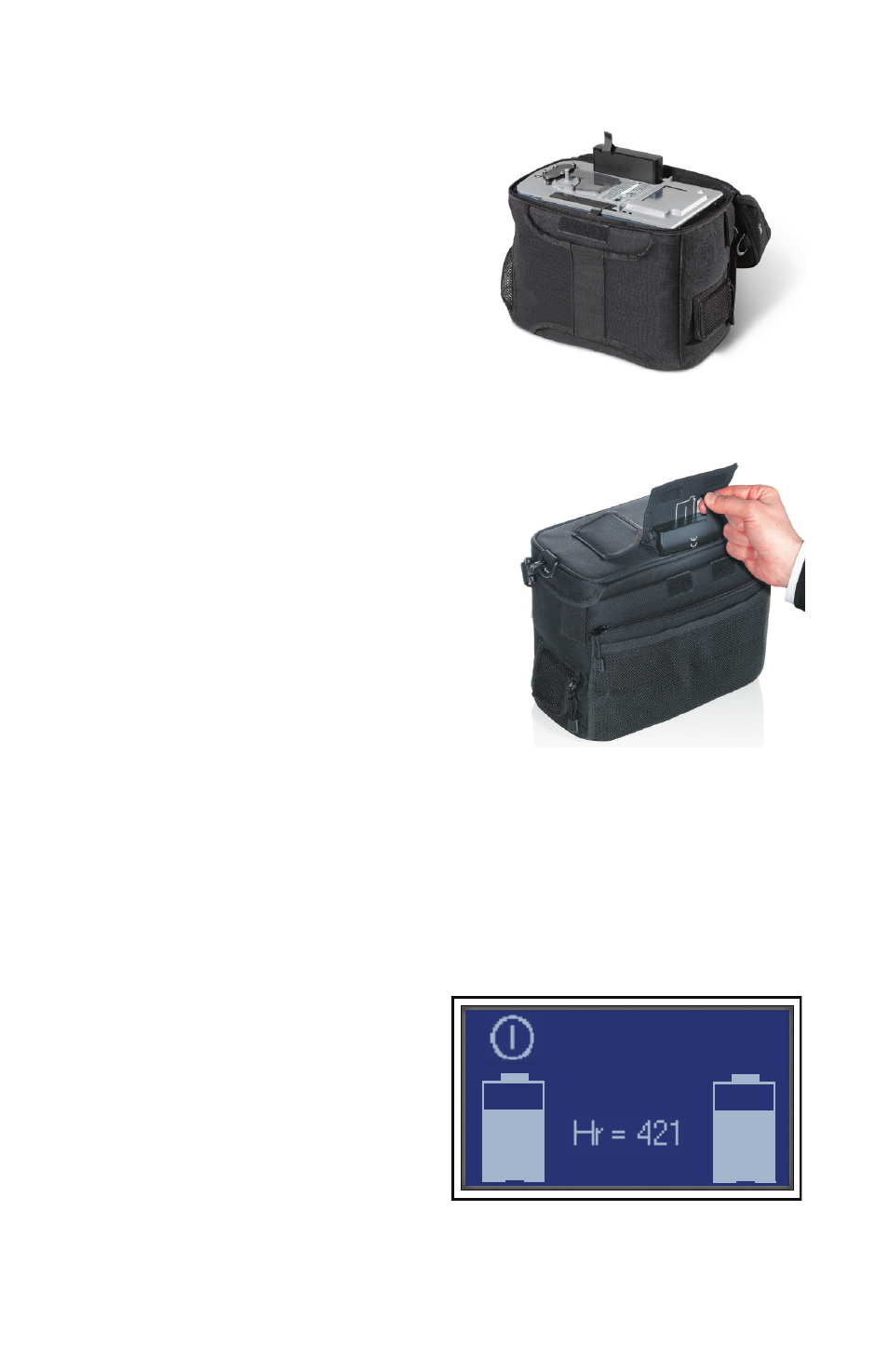

Figure 3. Inserting the primary
battery.
Figure 5. Typical startup screen showing
2 batteries, each 3/4 full, with 421 hours of
device usage and with software version 1.0.0.0.
VER 1.0.0.0
Figure 4. Inserting the secondary
