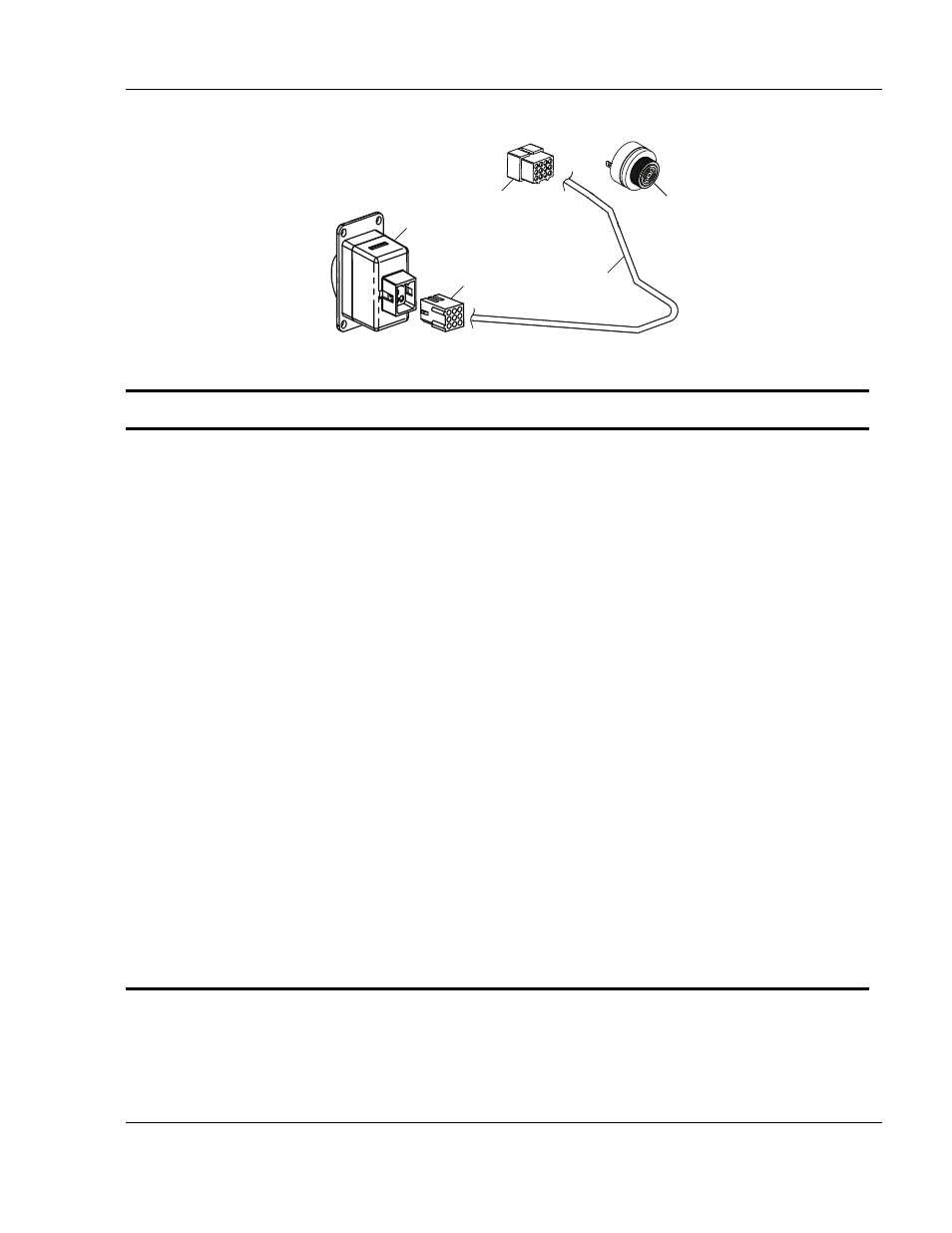

Figure 25. Electrical Components
FIG # ITEM PART # 1234 NOMENCLATURE UPA
25 01 345-6196-04 Switch, Cockpit Remote 1
ATTACHING PARTS
– 201-0408 Screw, PHP 4-40 x 1/4” SS 4
– 247-0400 Washer, Internal Lock SS #4 4
– 241-0440 Nut, 4-40 x 1/4” Hex SS 4
***
– 591-0428 . Label, ELT Cautionary Use Advisory 1
***
02 151-5009 Plug, 9-Pin 1
***
– 151-6628 . Terminal, Crimp Female 0.062 Dia. 9
***
03 151-5012 Receptacle, 12-Pin 1
***
– 151-6627 . Terminal, Crimp Male 0.062 Dia. 12
***
04 130-4004 Buzzer (ELT Audible Alert) 1
***
WIRING HARNESS
(Ref. Only)
02
03
04
01
