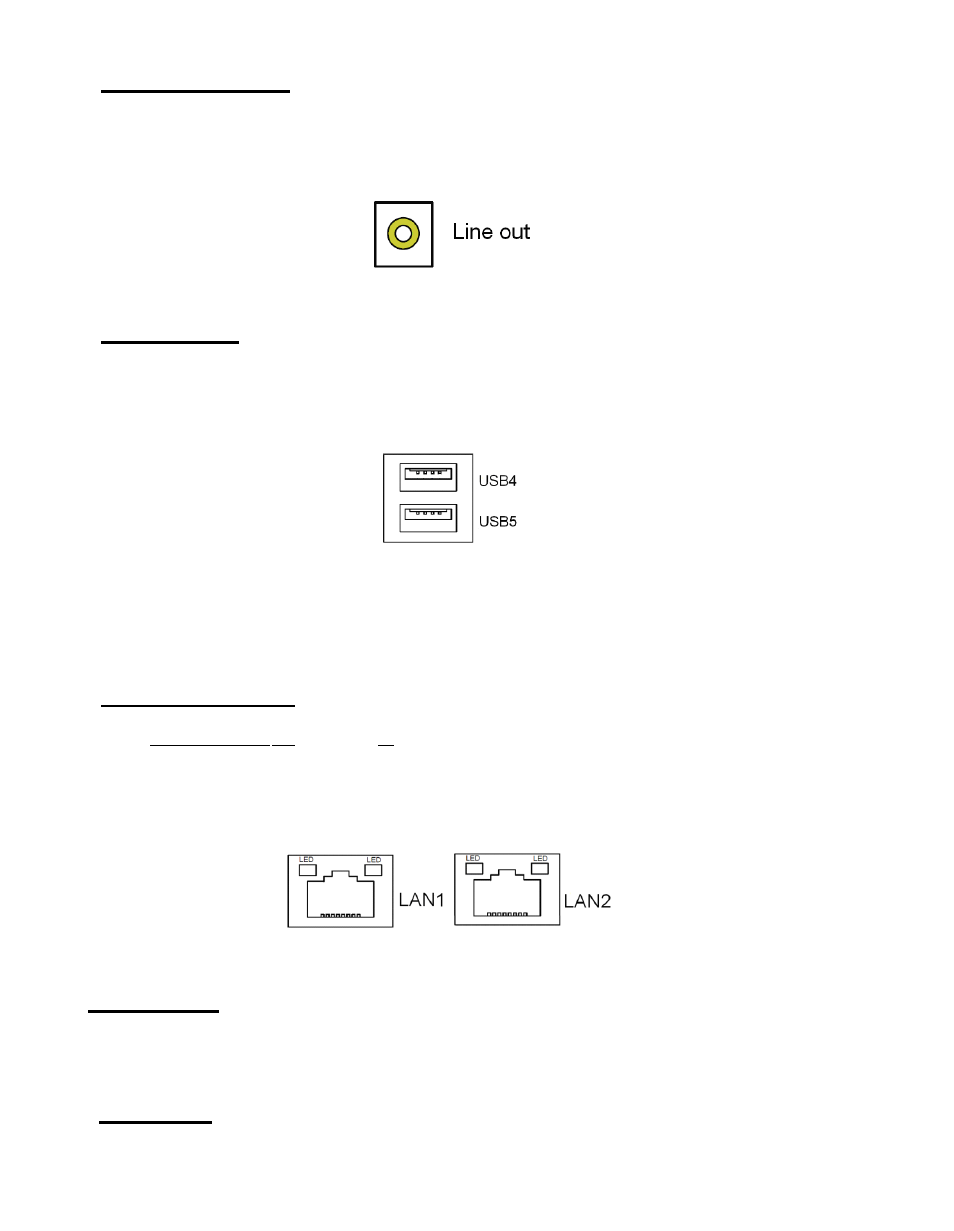

23. LINE_OUT:

(Diameter 3.5mm Jack), HD Audio port, An onboard Realtek ALC662 codec is used to

provide high quality audio I/O ports. Line Out can be connected to a headphone or

amplifier.


24. USB45:

USB4/USB5 (Double stack USB type A), Rear USB connector, it provides up to 4

USB2.0 ports, High-speed USB 2.0 allows data transf ers up to480 Mb/s ,s upport USB

full-speed and low-speed signaling.

Each USB Type A Re ceptacle (2 Ports) Current limited value is 1.5A.

If the external USB device current exceeds 1.5 A, please separate connectors

into different Receptacle.

25. LAN1/LAN2:

LAN1/LAN2: (RJ 45

Connector

),

Rear LAN port, Two standard 10/100/1000M RJ-45

Ethernet ports are provided. Used Realtek RTL8111E chipset, LINK LED (green) and

ACTIVE LED (yellow) respectively located at the left-hand and right-hand side of the

Ethernet port indicate the activity and transmission state of LAN.



26. BUZ1:

Onboard buzzer.


27 LED1:

LED STATUS. Green LED for Motherboard Pow er status.
