You can establish the connection of one or more A12S2-SJ JBOD units. Up to three A12S2-SJ JBOD expansion
storage expansion units can be linked to a A12S2-PS RAID. See below:
1. Connect the RAID system EXP port to the SAS port (see port with the SAS icon on the rear panel ) of the
JBOD1 using an SAS cable.
2. To connect to the next JBOD, connect the EXP port of JBOD1 to the SAS port (see port with the SAS icon on
the rear panel ) of the JBOD2 using an SAS cable.
3. Follow the same procedures to connect an additional JBOD3, also using the SAS cable.
4. Set the chassis ID:
• A12S2-PS (RAID) = 0
• A12S2-SJ (JBOD1) = 1
• A12S2-SJ (JBOD2) = 2
• A12S2-SJ (JBOD3) = 3

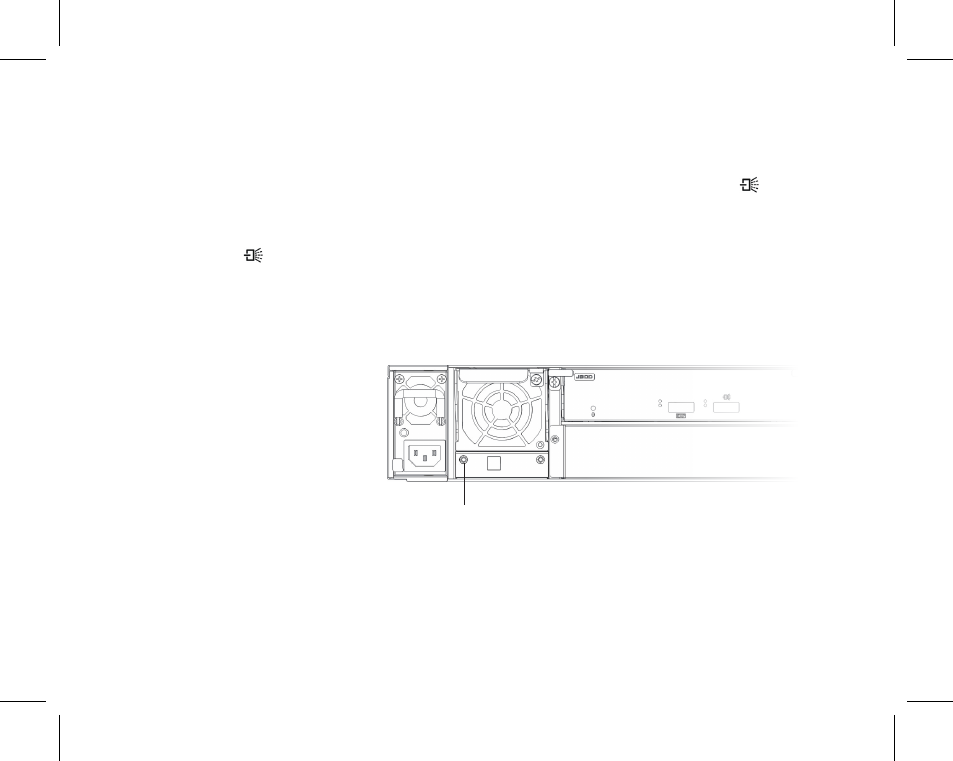

chassis ID
