Step 2: Making Connections
The JBOD system has one controller with two x4 SAS ports that enables you to connect to a host computer,
a RAID system or expand the JBOD enclosure. To use a x4 SAS cable to connect the JBOD system to a host
computer or to a RAID system. Follow the procedures below:
Host Sever
HBA

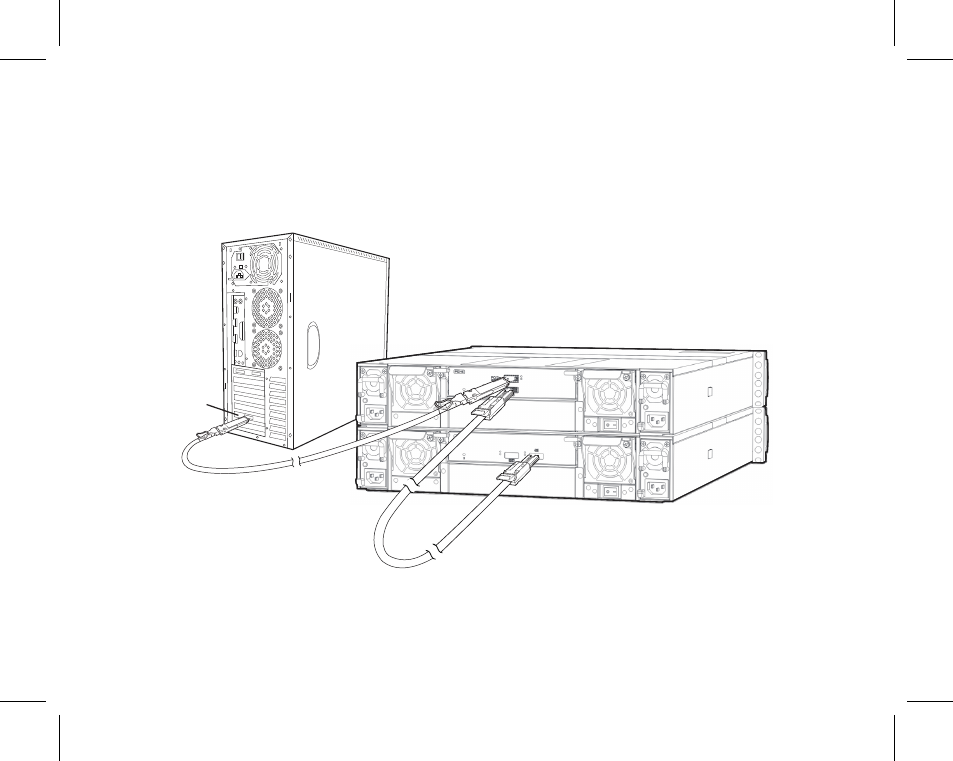

Figure 1-2 A12S2-SJ JBOD connection with a host server (workstation computer) and the A12S2-PS RAID storage system.
