Accusys 76500/76510
22

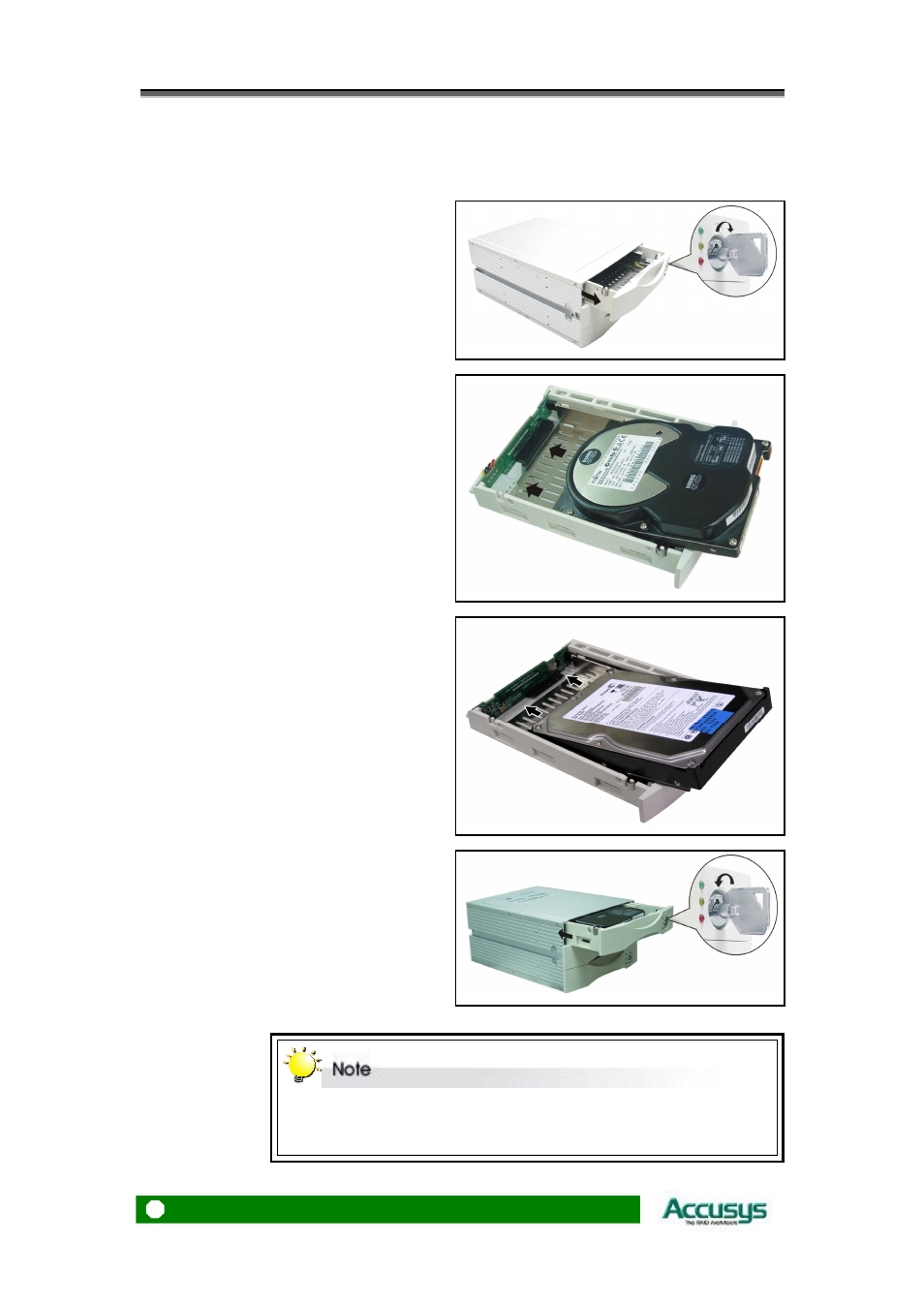

Fixed connector drive carrier
The ACS-76500/76510 should be fitted with three hard disk drives. Load each drive into a
drive carrier as follows:
For ACS-76500
1. Unlock the drive carrier and slide it out of
the RAID box.
2. Place the disk drive in the drive carrier,
so that the power and IDE connectors
are lined up with the connectors inside
the carrier.
3. Connect the power connector to the disk
drive first, then carefully push the disk
drive so that the drive’s IDE connector is
seated securely into the IDE connectors
in the disk carrier.
4. Push the power connector into the drive
connected to ensure it is firmly secured.
5. Secure the disk drive by screwing it to
the drive carrier case.
6. Slide the loaded disk drive carrier into
the ACS-76500/76510 RAID box, and
lock it.
The disk carrier connector at the back of each RAID box disk carrier slot can
be damaged if the disk carrier is not properly aligned when inserted. Insert the
disk carrier gently to avoid damage.
For ACS-76500
For ACS-76510
