Chapter 3 – Setting up the RAID box
19
Mounting RAID box
The ACS-76500/76510 RAID box can be installed inside a computer case or set up externally.
This section describes both procedures.
Turn off and disconnect all electrical power from the system before beginning
installation.

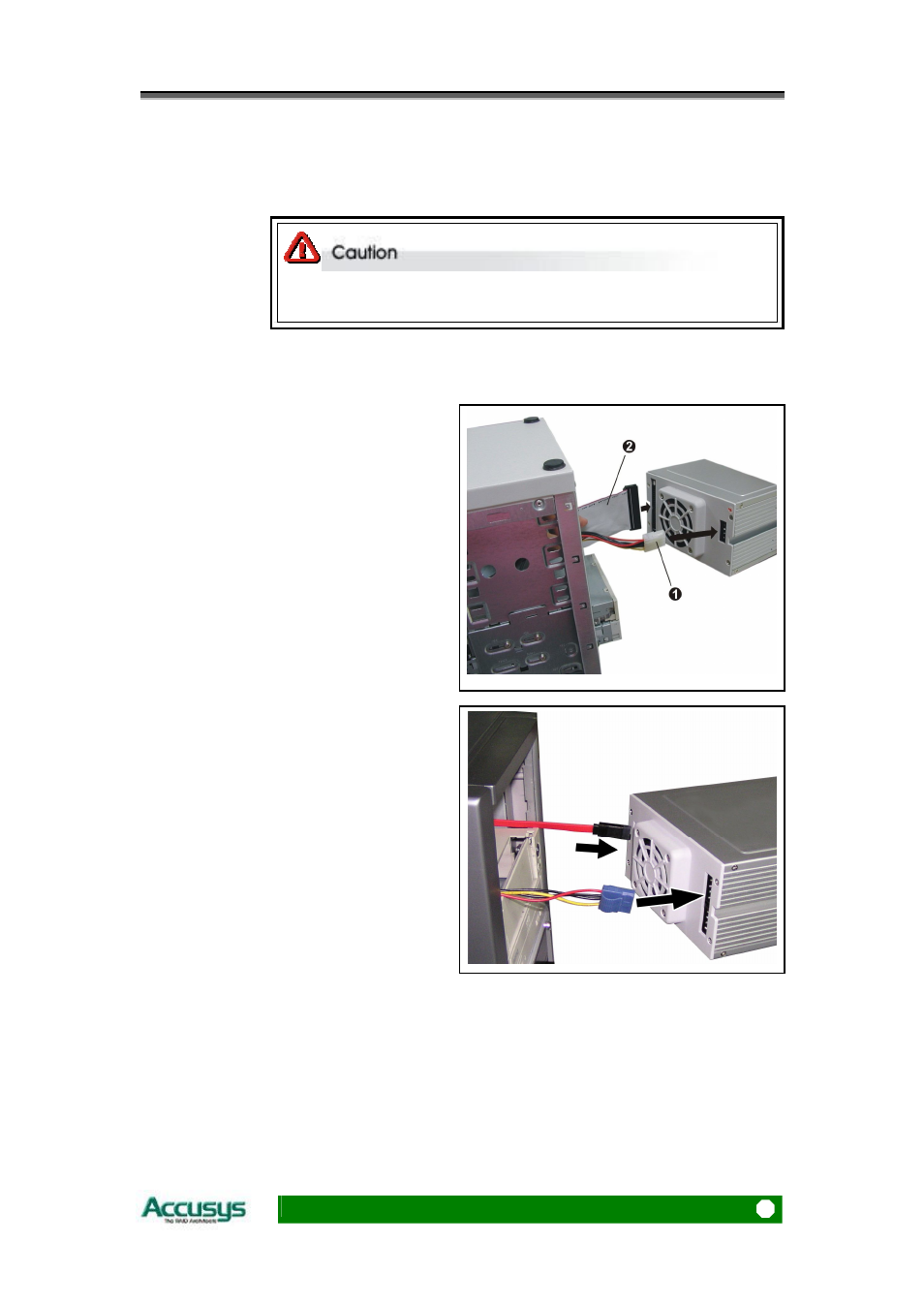

Mounting RAID box in system
The ACS-76500/76510 RAID box fits into the space of two half-height 5¼-inch drive bays.
1. Remove the cover and front bezel from
the system case.
2. Feed a power cable through the
opening.
3. Feed an IDE/SATA cable through the
opening.
4. Connect the two cables to the connectors
on the rear of the RAID box.
5. If planning to use the ACSView GUI to
monitor the status of your RAID, you
should also connect a 3-pin RS-232
cable to the terminal on the RAID box (To
monitor ACS-76500 by ACSView GUI,
you may use an IDE cable).
For ACS-76500
For ACS-76510
