17

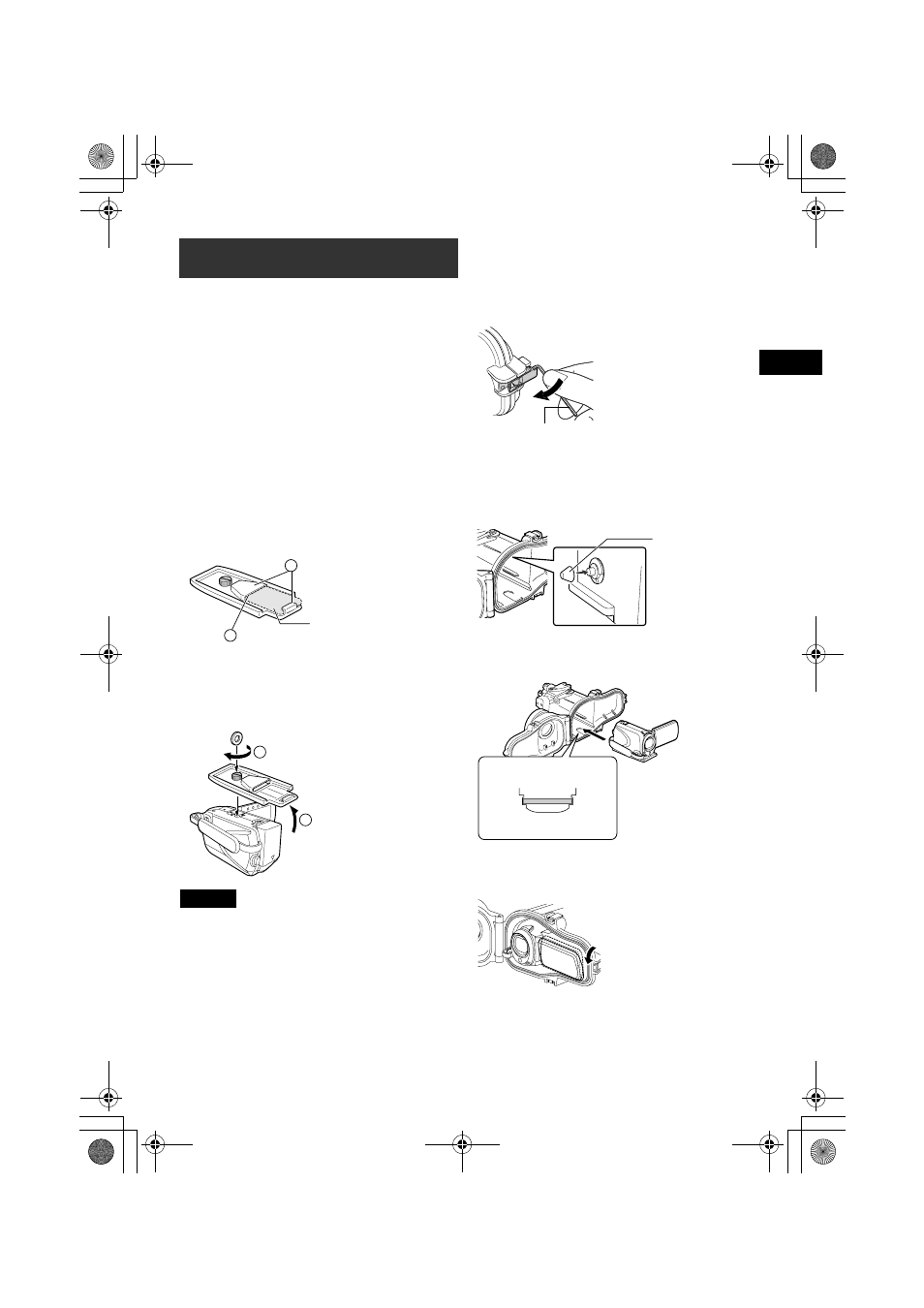

A Setup the camera.
z For models equipped with light, turn off the
light.
z Open the lens cover.
z Set to the shooting mode (video/still
image).
¹ Even when the shooting mode is set to
“video”, still images can be captured by
pressing the still image lever during video
recording.
z It is recommended to set to the auto
shooting mode.
z Insert the battery and the microSD/
microSDHC card or SD/SDHC card
beforehand if needed.
z To turn off the camera, press and hold the
power button for more than 2 seconds.
B Insert the drying agent at the back of the
base.
C Attach the base to the bottom of the
camera.
z Align the tripod screw hole at the bottom of
your camera with the screw of the base,
and tighten the screw.
z The camera turns on automatically when the
LCD monitor is opened. To turn off the camera,
press and hold the power button for more than
2 seconds.
D Fold the grip belt.
z Make sure the grip belt is not caught
between the marine case when sealing.
E Open the marine case.
z If it is difficult to open buckles, use the
small hexagonal wrench (buckle opener).
F Attach the power button cap.
(Not required for GZ-HM545 to GZ-HM570.)
z Fit the hollow of the power button cap to
the protrusion of the power button on the
case.
G Insert the camera into the marine case.
z Align the base attachment groove with the
base to insert.
H Adjust the angle of the LCD monitor.
z The LCD monitor can be tilt upwards to a
maximum angle of 30 degrees.
Attaching the Marine Case to the
Camera
Caution
1
2 Catch
Drying agent
Pass underneath
2
1
Tighten the screw
Open up the LCD monitor
Small hexagonal wrench
(Buckle opener)
Power button cap
Base attachment groove
Base
Marine case internal base
