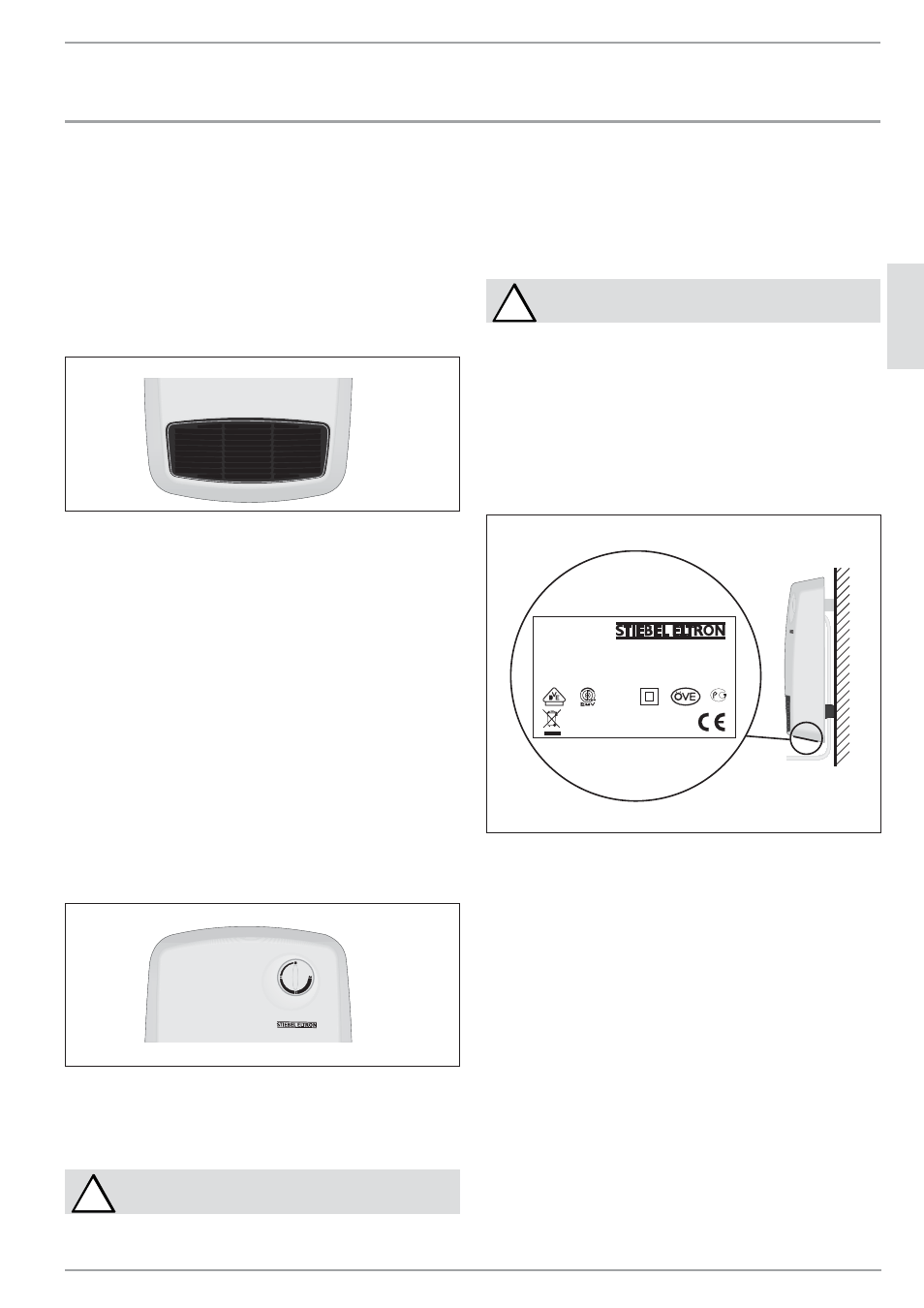

3. Appliance description
The appliance is an electric direct heater for installation on a wall.
It is suitable as e.g. a full heating system in bathrooms, or for use
between seasons and use as a booster heater in smaller rooms,
such as hobby and guest rooms.
For heating, the room air is drawn in by the appliance fan via
apertures in the back panel, heated by the heating element, and
blown out evenly, without sensation of a draught, via the air outlet
grille at the bottom of the appliance.
Air outlet grille
C2
6
_0
7
_3
1
_0
0
6
7
3.1 Standard delivery
— Rapid wall mounted heater with power cable and profiled
plug
— Wall retainer
— Operation and installation instructions
3.2 Special accessories
If required, the appliance can be operated with a commercially
available external room thermostat. For this, turn the temperature
rotary selector clockwise as far as it will go. Fit the room thermostat
as far from the appliance as possible, at least 1.5 m above the
ground.
(See also chapter "Specification".)
4. Operation
The required room temperature can be infinitely adjusted at the
temperature rotary selector. The set temperature of the room air
is then constantly maintained by repeated, brief heating via the
thermostat in the appliance.
Temperature selector
C2
6
_0
7
_3
1
_0
0
6
7
If you want to use the appliance as a frost stat, turn the temperature
rotary selector anti-clockwise as far as it will go. In this position,
the thermostat switches on the heating automatically if the room
temperature drops to approx. 6 °C.
!
Switching the appliance OFF
To switch OFF, pull the appliance power plug.
5. Cleaning, care and maintenance
If a pale brownish discolouration appears on the appliance casing,
wipe this off as soon as possible with a damp cloth. Clean the
appliance when cold with ordinary cleaning products. Avoid
abrasive or corrosive cleaning products.
!
Please note!
Never spray cleaning product into the air slot.
6. What to do if...
...the appliance does not heat:
Check the temperature set at the appliance and the MCB/fuse in
your fuse box.
If you cannot remedy the fault, contact your contractor. To speed
your call for assistance, provide the number on the type plate
(no. 185274 - XXXX - XXXXXX):
Type plate example
Montageanweisung beachten!
Made in E.C.
Typ: CBS 20 S
Nr.: 185274 - 8249 - 100001
2,0 kW 1/N ~ 230 V 50 Hz 8,7 A
IP24
Ⱥə
XXXX - XXXXXX
