32 | PSH UniverSal el www.Stiebel-eltron.CoM
inStallation
SPeCifiCation
16. specification

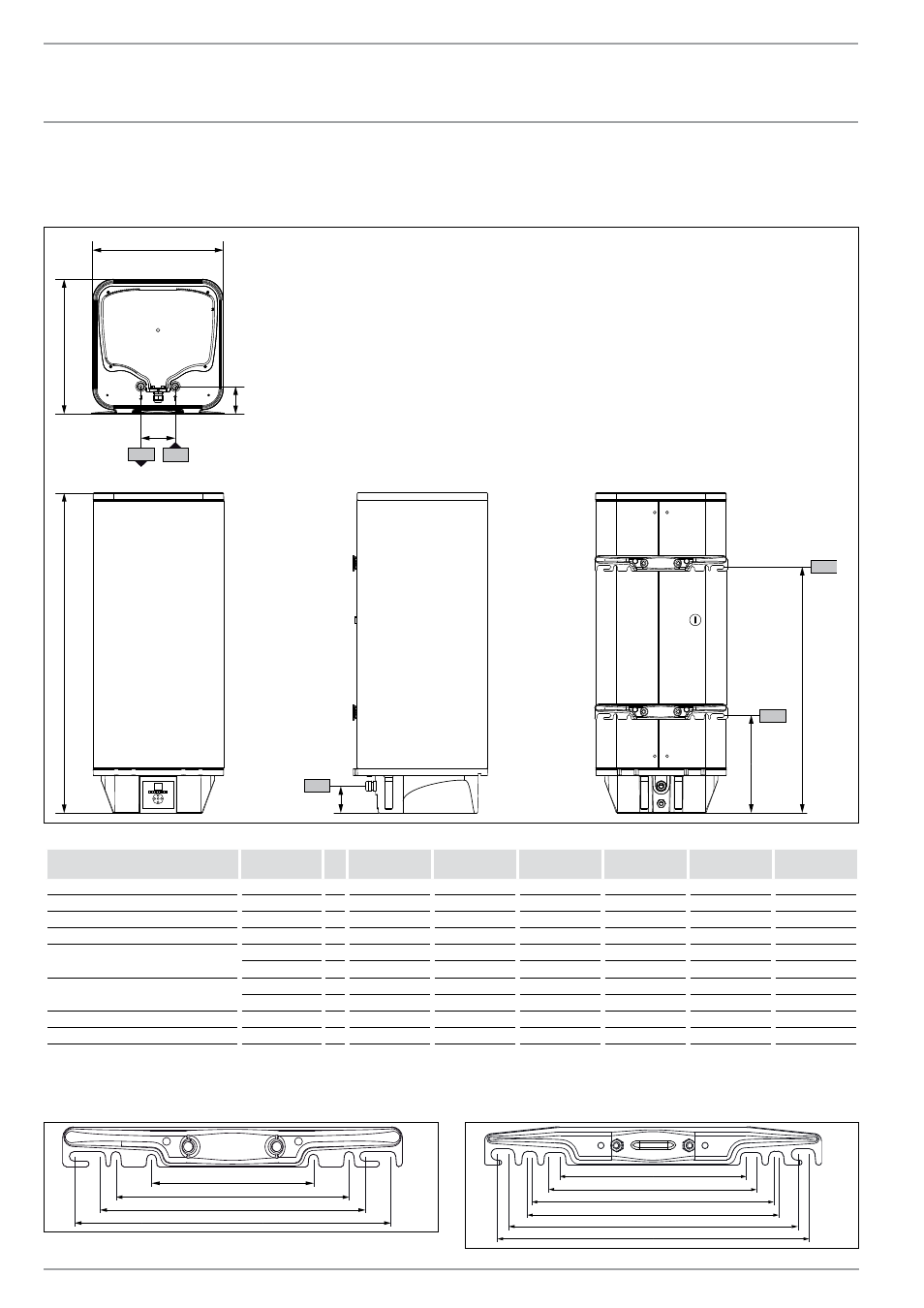

16.1 dimensions and connections
100
a20
a30
a10
c01 c06
b01
i14
i15
D
00000
18
70
5
PSH 30
Universal el
PSH 50
Universal el
PSH 80
Universal el
PSH 100
Universal el
PSH 120
Universal el
PSH 150
Universal el
a10 Appliance Height mm 676 931 893 1045 1200 1435
a20 Appliance Width mm 380 380 475 475 475 475
a30 Appliance Depth mm 380 380 475 475 475 475
b01 Entry electrical cables Height mm 78.5 78.5 78.5 78.5 78.5 78.5
c01 Cold water inlet Male thread G ½ A G ½ A G ½ A G ½ A G ½ A G ½ A
Rear clearance mm 80 80 85 85 85 85
c06 DHW outlet Male thread G ½ A G ½ A G ½ A G ½ A G ½ A G ½ A
Rear clearance mm 80 80 85 85 85 85
i14 Wall mounting bracket 1 Height mm 445 705 592 735 870 1090
i15 Wall mounting bracket 2 Height mm 210 270 270 300 300 300
wall mounting bracket
30 - 50 l
184
265
300
360
80
�0
2�
07
�0
00
5
80 - 150 l
450
415
360
350
300
265
80
�0
2�
07
�0
00
6
