3) USB
The USB ports allow you to share your files or printer through them. Each port can support both printer and USB mass
storage devices.
Note 1: Please plug the external power to your USB mass storage devices.
Note 2: Please plug the USB mass storage dedicated to this NAS router in the USB 1 port for better
management function and plug the USB flash disk used to share files among different PCs and notebooks in
the USB 2 port for instant setup.
4) Reset
The Reset button allows you to:
1) If problems persist or you experience extreme problems or you forgot your password, press the reset button for
longer than 5 seconds and the router will reset itself to the factory default settings (warning: your original
configurations will be replaced with the factory default settings)
Front Panel
On the router’s front panel there are LED lights that inform you of the router’s current status. Below is an explanation of
each LED and its description.

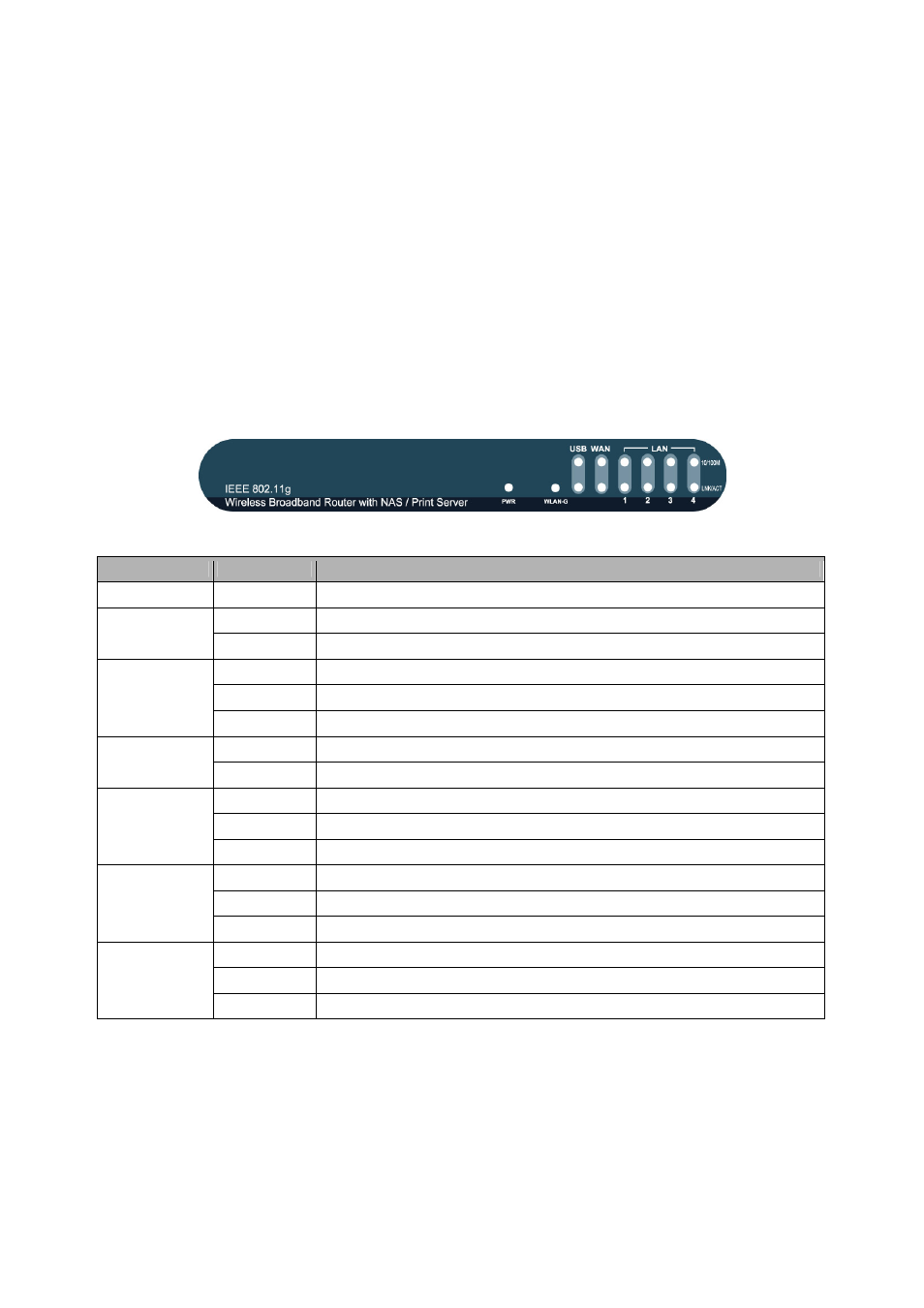

Figure 1.1
LED
Light Status
Description
PWR
ON
Router’s power supply is on
ON
WAN port 100Mbps is connected
WAN 10/100M
Off
WAN port 10Mbps is connected
ON
WAN is connected
Off
No WAN connection
WAN LNK/ACT
Flashing
WAN port is Activity (ACT)
ON
LAN port 100Mbps is connected
LAN 10/100M
(Port 1-4)
Off
LAN port 10Mbps is connected
ON
LAN is connected
Off
No LAN connection
LAN LNK/ACT
(Port 1-4)
Flashing
LAN port is Activity (ACT)
ON
USB storage device is connected
Off No
USB storage device connection
USB
Flashing
USB printer is printing. (ACT)
ON
Wireless LAN has been activated
Off
Wireless LAN is disabled
WLAN-G
Flashing
Wireless LAN is Activity (ACT)
