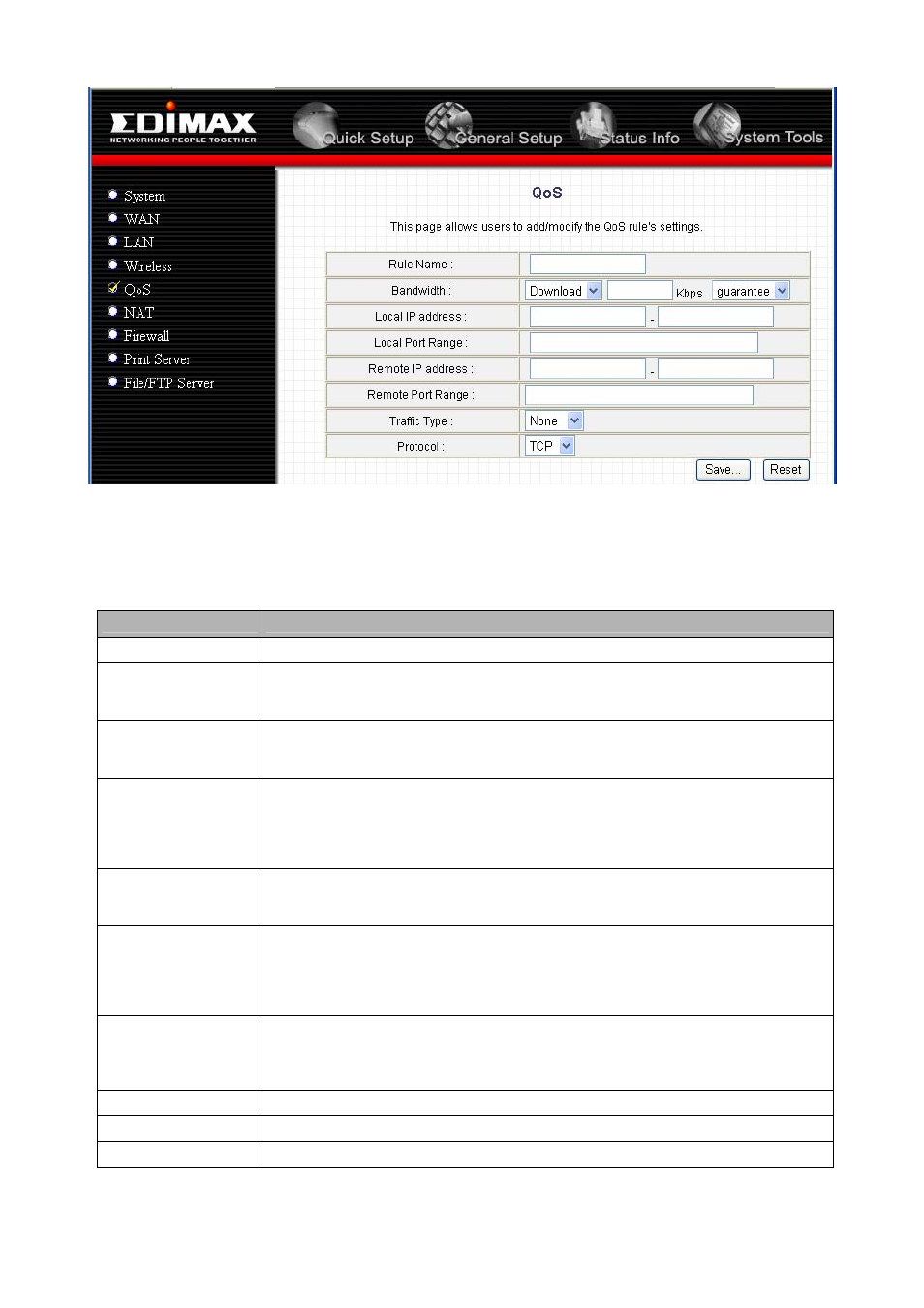

Parameters Description
Rule Name The name of this rule.
Bandwidth
You can assign the download or upload bandwidth by the unit of Kbps (1024 bit per
second). You can limit the maximum bandwidth consumed by this rule by selecting
“Maximum”. You also can reserve enough bandwidth for this rule by selecting “Guarantee”.
Local IP Address
Enter the local IP address range of the packets that this rule will apply to. If you assign
192.168.2.3 – 192.168.2.5, it means 3 IP addresses: 192.168.2.3, 192.168.2.4 and
192.168.2.5
Local Port Range
Enter the local port range of the packets that this rule will apply to. You can assign a single
port number here or assign a range of port numbers by assigning the first port number and
the last port number of the range. The two numbers are separated by a dash “-“, for
example “101-150” means from port number 100 to port number 150 – the range of 50 port
numbers.
Remote IP Address
Enter the remote IP address range of the packets that this rule will apply to. If you assign
192.168.2.3 – 192.168.2.5, it means 3 IP addresses: 192.168.2.3, 192.168.2.4 and
192.168.2.5
Remote Port Range
Enter the remote port range of the packets that this rule will apply to. You can assign a
single port number here or assign a range of port numbers by assigning the first port
number and the last port number of the range. The two numbers are separated by a dash
“-“, for example “101-150” means from port number 100 to port number 150 – the range of
50 port numbers.
Traffic Type
Select the traffic type of the packets that this rule will apply to. We list some popular
applications here to ease the configuration. You also can get the same result by using
other parameters, for example source or destination port number, if you are familiar with
the application protocol.
Protocol Select the protocol type of the packets that this rule will apply to.
Apply Apply and exit the form.
Reset Clear the content of this form.
Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance
sections or start using the router (with the advance settings in place)
