40
3.3.2 Port Forwarding
This function is used to open ports on your device and
redirect data from those ports to a single PC on your network
(WAN-to-LAN traffic). It allows remote users to access
services on your LAN, such as FTP for file transfers or SMTP
and POP3 for e-mail. The device accepts remote requests for
these services at your global IP address. It uses the specified
TCP or UDP protocol and port number, and redirects these
requests to the server on your LAN with the LAN IP address
you specificed. Note that the specified private IP address
must be within the available range of the subnet where the
device is in.

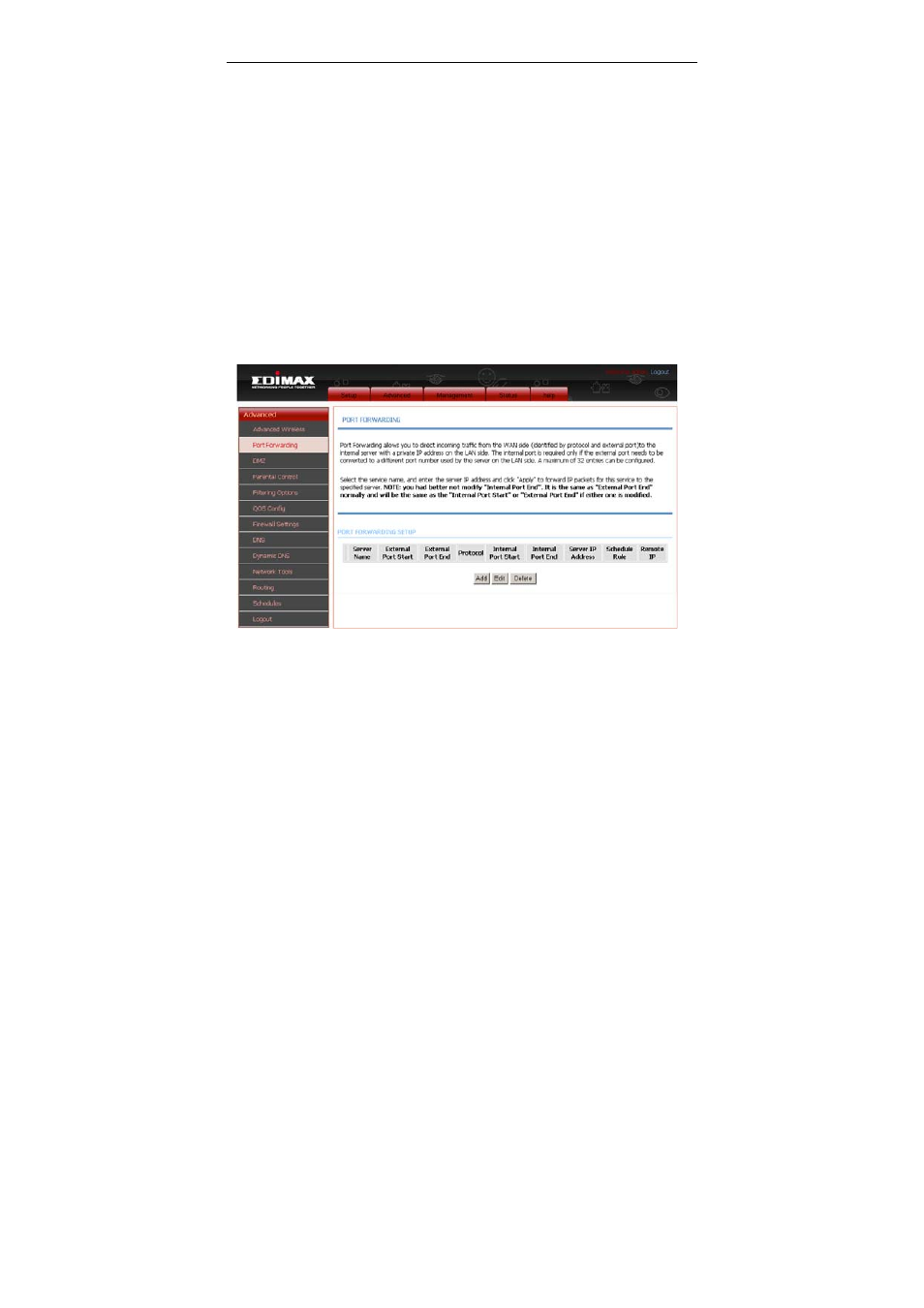

Choose ADVANCED > Port Forwarding. The page shown in
the following figure appears.
Click Add to add a virtual server.
