28

VC Table.

Modify

Select a PVC in the Current ATM VC Table, then modify
the parameters of this PVC. When you finish, click this
button to apply the change of this PVC.

Delete Selected

Select a PVC in the Current ATM VC Table, then click
this button to delete this PVC.

Click this button, the following screens will appear. In
these pages, you can modify the PVCs’ parameters.


3-5-2 ATM Settings

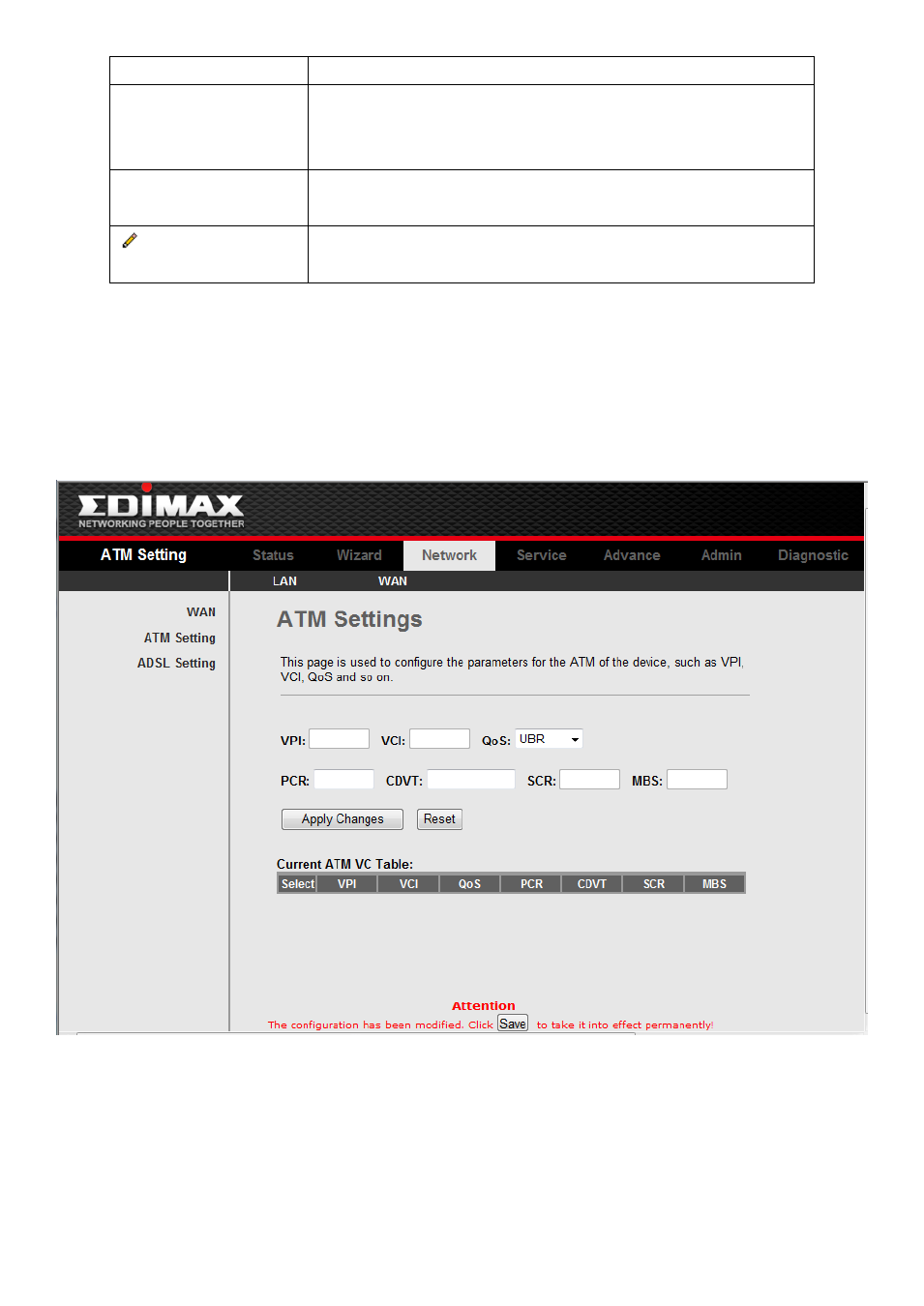

Click ATM Setting, the screen of Fig 3.5.1-3 will appear. In this page, you can configure

the parameters of the ATM for your ADSL router, include QoS type, PCR, CDVT, SCR and
MBS.

Fig 3.5.1-3
