20

3-4 Network \ LAN

Click LAN in the menu to open the sub-menu which contains 2 items: LAN Settings and

DHCP Settings. You can use the LAN configuration to define an IP address for the DSL
Router and configure the DHCP server.

3-4-1 LAN Settings

On this screen you can change the device's IP address. The preset IP address is

192.168.1.1. This is the Private IP address of the DSL Router. This is the address under which
the device can be reached in the local network. It can be freely assigned from the block of
available addresses.

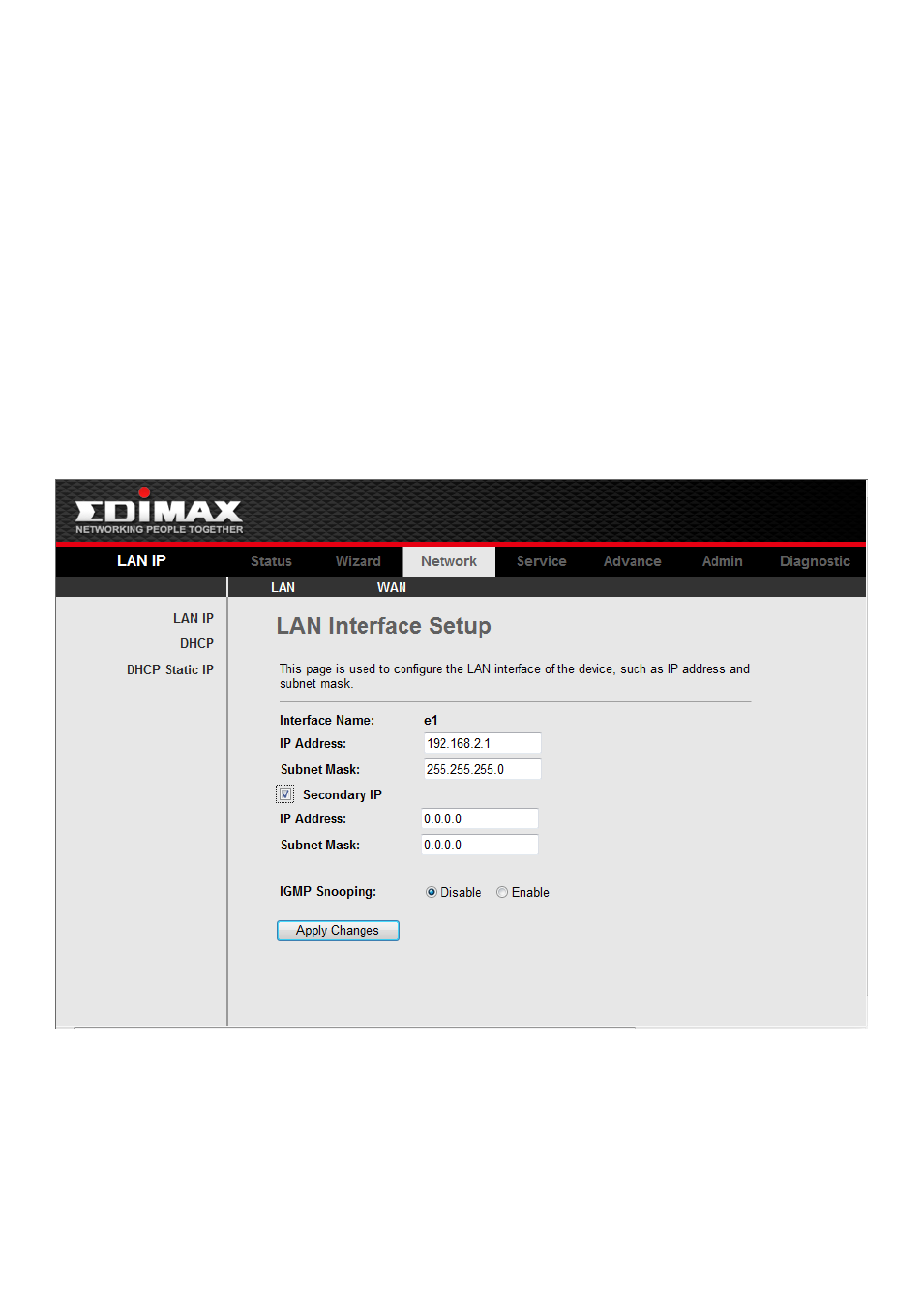

Click LAN Settings in the sub-menu to open the screen of Fig 3.4.1. In this page you can

config the LAN network.

Fig 3.4.1
