E-10
Right
Left
Audio output
S-Video Video
Cr/Pr Cb/Pb Y
Component

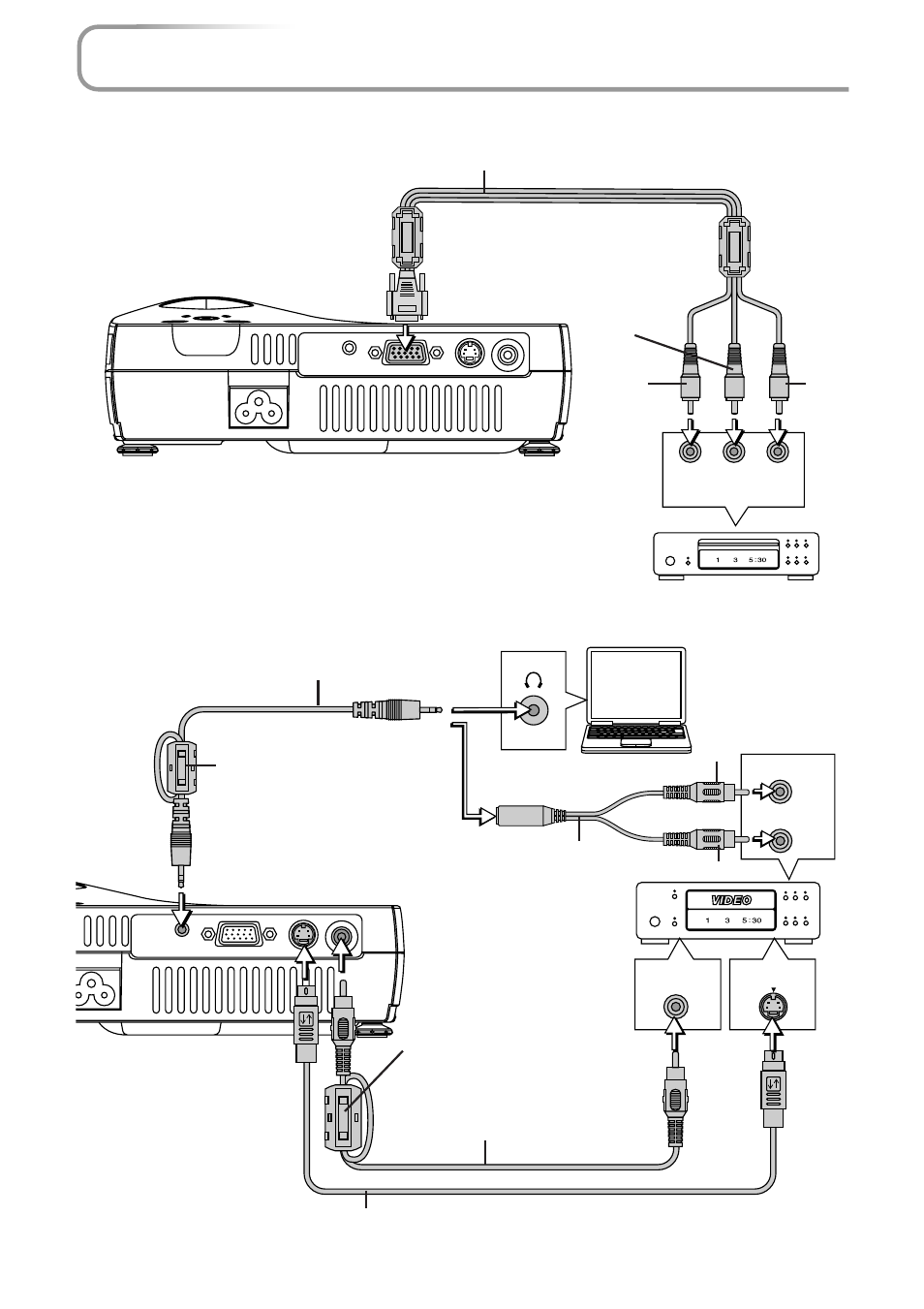

Connections with the Video Equipment
Audio cable (Mini plug)
(Commercially available)
Component cable (Available as an option)
(Mini D-sub 15-pin to RCA
ן3)
( No.78-8118-8843-3 )
Video cable (RCA pin plug)
(Commercially available)
S-Video cable (Mini DIN 4-pin plug) (Commercially available)
Green Red
Blue
Red
White
* When the projector does not project using this connection,
please select “Component” under menu items [Input
Format]
Ǟ [RGB].
* If the color is very odd when using a YPbPr or YCbCr con-
nection, it will be necessary to select the Color Space un-
der menu items [Color]
Ǟ [Color Space].
Audio conversion cable
(Mini-jack/ RCA pin plug)
(Commercially available)
Ferrite core (Supplied item)
Ferrite core (Supplied item)
