E-16
1
INPUT selector button
This button switches between INPUT 1 and INPUT 2
each time it is pressed. Check the INPUT 1/2 indicator
5 to see which is in use.
2
STANDBY/ON (Switch) button
This button switches between power-on and standby
each time it is pressed.
When standby mode is activated, the STANDBY
indicator
4 lights up.
When the power-on is activated, the STANDBY
indicator
4
is off. You can tell that the power is on since
the INPUT 1/2 indicator 5 and other indicators are lit
up.
Standby mode
In this state, this unit consumes a very small
quantity of power to receive infrared signals from
the remote control transmitter.
3
PROGRAM selector button
This button is used for selecting the DSP program. The
selections cycle through A
→
B
→
C
→
D
→
E
→
OFF
→
A
when pressed.
A: Dolby Pro Logic Enhanced
B: Dolby Pro Logic
C: Concert
D: Sports
E: Mono Movie
Check the PROGRAM indicator 7 when making the
selection.
4
STANDBY indicator
This indicator lights up when in standby mode.
5
INPUT 1/2 indicators
These indicators light up to show whether INPUT 1 or 2
is selected.
6
VOLUME indicators
These indicators light up according to the setting of the
VOLUME buttons
9 on the remote control transmitter.
7
PROGRAM indicators
These indicators light up to show the selected DSP
program.
Remote control sensor
The sensor is a window for receiving the signal from the
remote control transmitter.

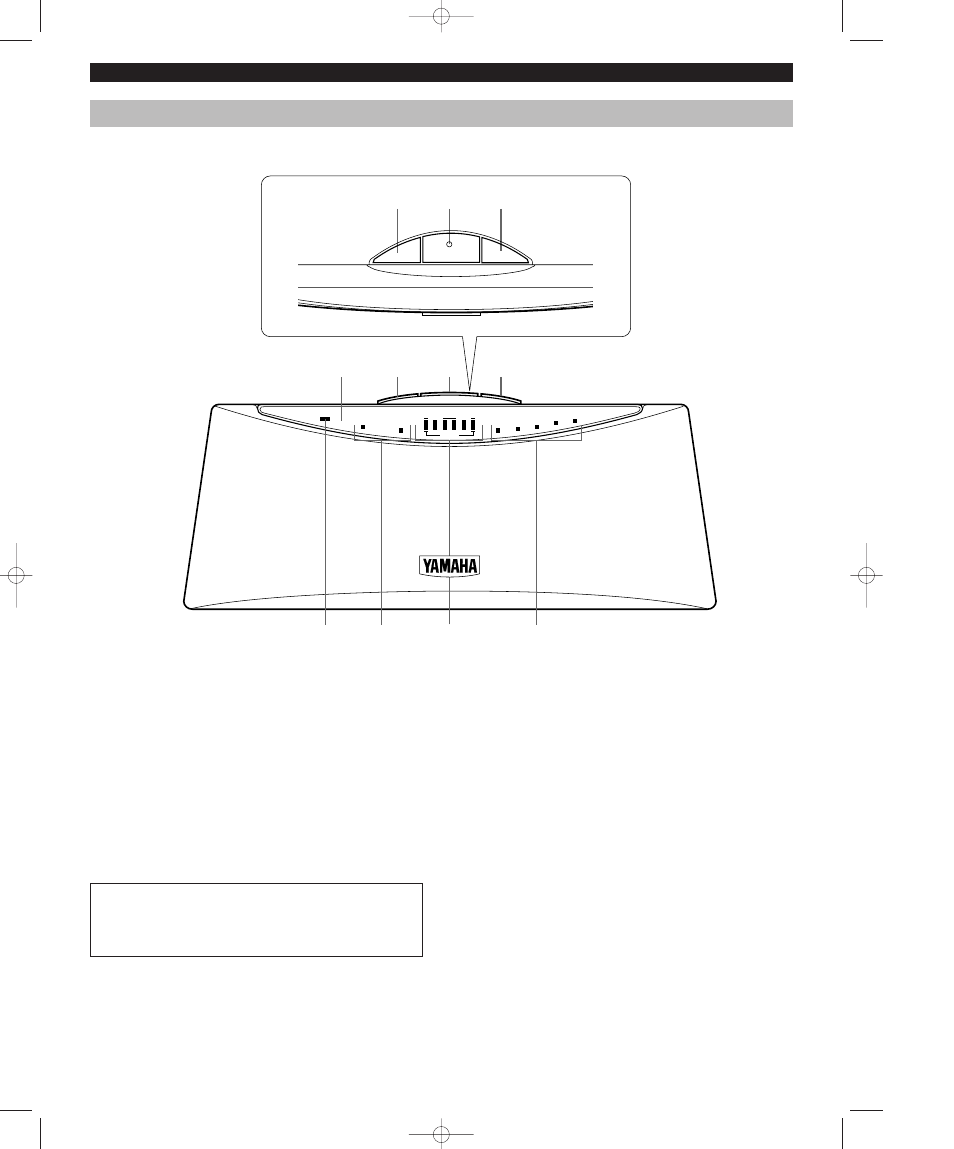

STANDBY
INPUT 1 C
INPUT 2
L
A B
E D C
VOLUME
R
4 5 6 7
STANDBY/ON INPUT PROGRAM
1 3 2
1 3 2
REAR
CONTROLS AND THEIR FUNCTIONS
CONTROLS AND THEIR FUNCTIONS
CENTER SPEAKER (WITH CONTROL UNIT)
Remote control
sensor
