ZyXEL G-162/G-360 User’s Guide
WLAN Networking 1-3
1.3.1 Site Survey

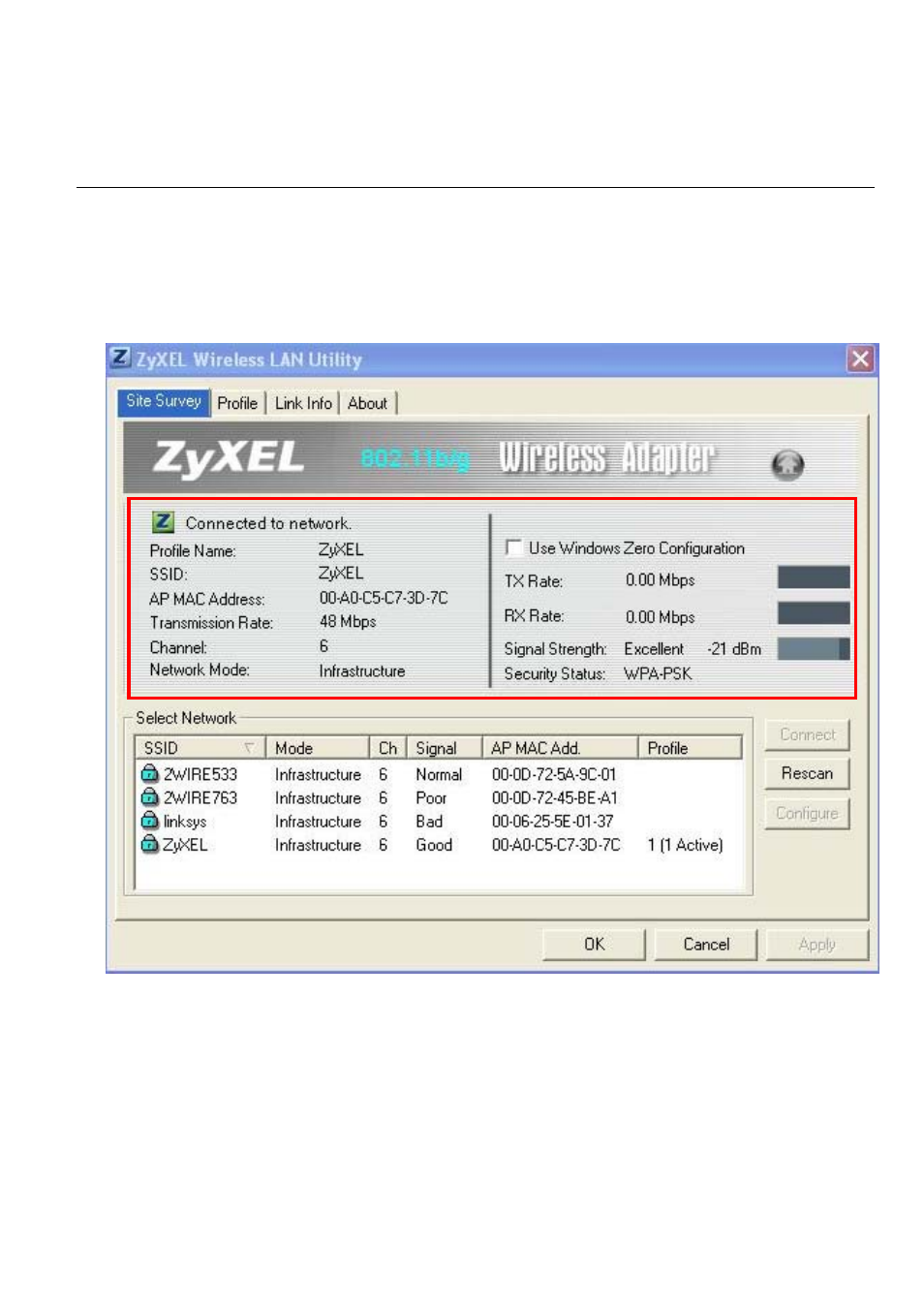

Site Survey screen shows how the network is presently configured: network mode, information, channel,
signal strength, etc. The Selected Network window shows you a list of SSIDs in your vicinity. Information
regarding each SSID is also shown as Security Status, SSID, Mode, Ch, Signal, AP MAC Add and Profile.
The “Current Status” (Top Red Rectangle) windows shows the network status, Profile Name, SSID, AP MAC
Address, Transmission Rate, Channel, Network Mode, TX Rate, RX Rate, Signal Strength and Security Status
between the client and AP/Router.
