PoE-80 User’s Guide

23

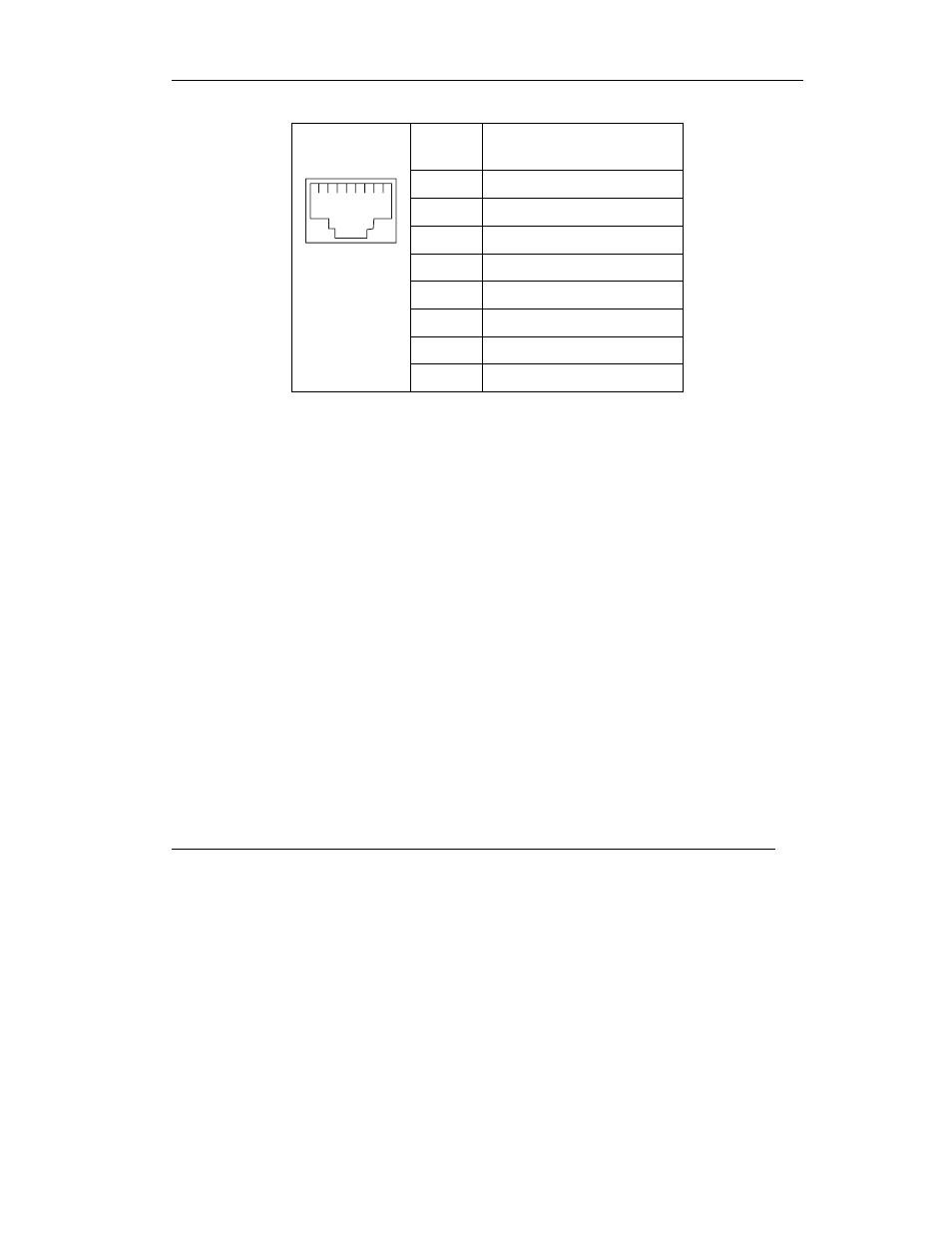

7.1 DATA OUT PoE Injector RJ-45 Port Pin Assignments

PIN NO

RJ-45 SIGNAL

ASSIGNMENT

1

Output Transmit Data +

2

Output Transmit Data -

3 Receive

Data

+

4 Power

+

5 Power

+

6

Receive Data -

7 Power

-

1 2 3 4 5 6 7 8

8 Power

-
