PoE-80 User’s Guide

11

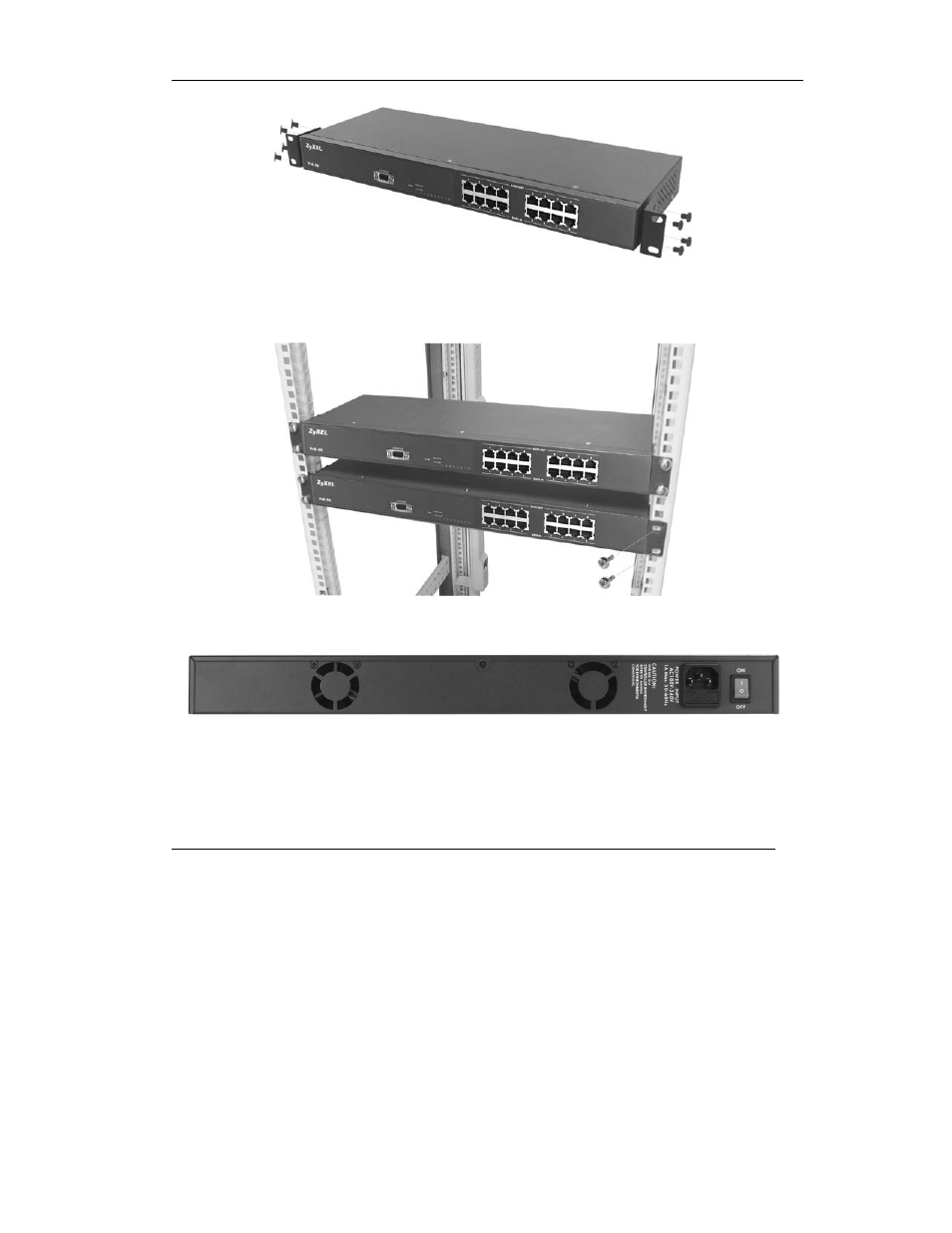

Step 2. After attaching both mounting brackets, position the PoE-80 in the rack by lining up the

holes in the brackets with the appropriate holes on the rack. Secure the PoE-80 to the
rack with the rack’s mounting screws.

2.3 Rear Panel Connections

Connect the female end of the power cord to the power receptacle. Connect the male end to a 100-
240V AC, 50-60 Hz power source (wall outlet). Push the power switch to the ON position.
