Technical guide, Affinity™ series single package cooling units

background image

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

360101-XTG-A-0108

TECHNICAL GUIDE

®

DESCRIPTION

These packaged cooling air conditioners are designed for
outdoor installation. Only utility and duct connections are
required at the point of installation.

Field-installed electric heater accessories are available to
provide electric heat combined with electric cooling.

STANDARD FEATURES / BENEFITS

OPERATING EFFICIENCY - All units provide high operating
efficiencies and have a minimum EER of 8.8 or above.

ON SITE FLEXIBILITY - All model sizes share a common,
compact design cabinet with a single footprint. The installer has
the flexibility of setting one curb and placing the proper tonnage
unit on that curb after the internal load has been determined.
Field convertible duct connections from side shot to down shot
allows the installer to have greater flexibility and needs to carry
less inventory.

LOWER INSTALLATION COST - Installation time and costs
are reduced by easy power and control wiring connections. The
small base dimension means less space is required on the
ground or roof, plus, the installer can fit this unit between the
wheel wells of full size pick-up truck. All models are well under
400 pounds.

All units are completely wired, charged with R-22 and tested
prior to shipment. Unique test stations using a new state of the
art computerized process system are used to insure product
quality. Refrigerant charge, and component part numbers are
verified via computers at installation. Vital run test statistics
such as system pressure, motor currents, air velocity and
temperature and unit vibration are monitored and recorded by
the system to insure unit performance.

Equal size, side supply and return duct connections allows easy
hook-up of ducts to match low crawl spaces without transition
pieces.

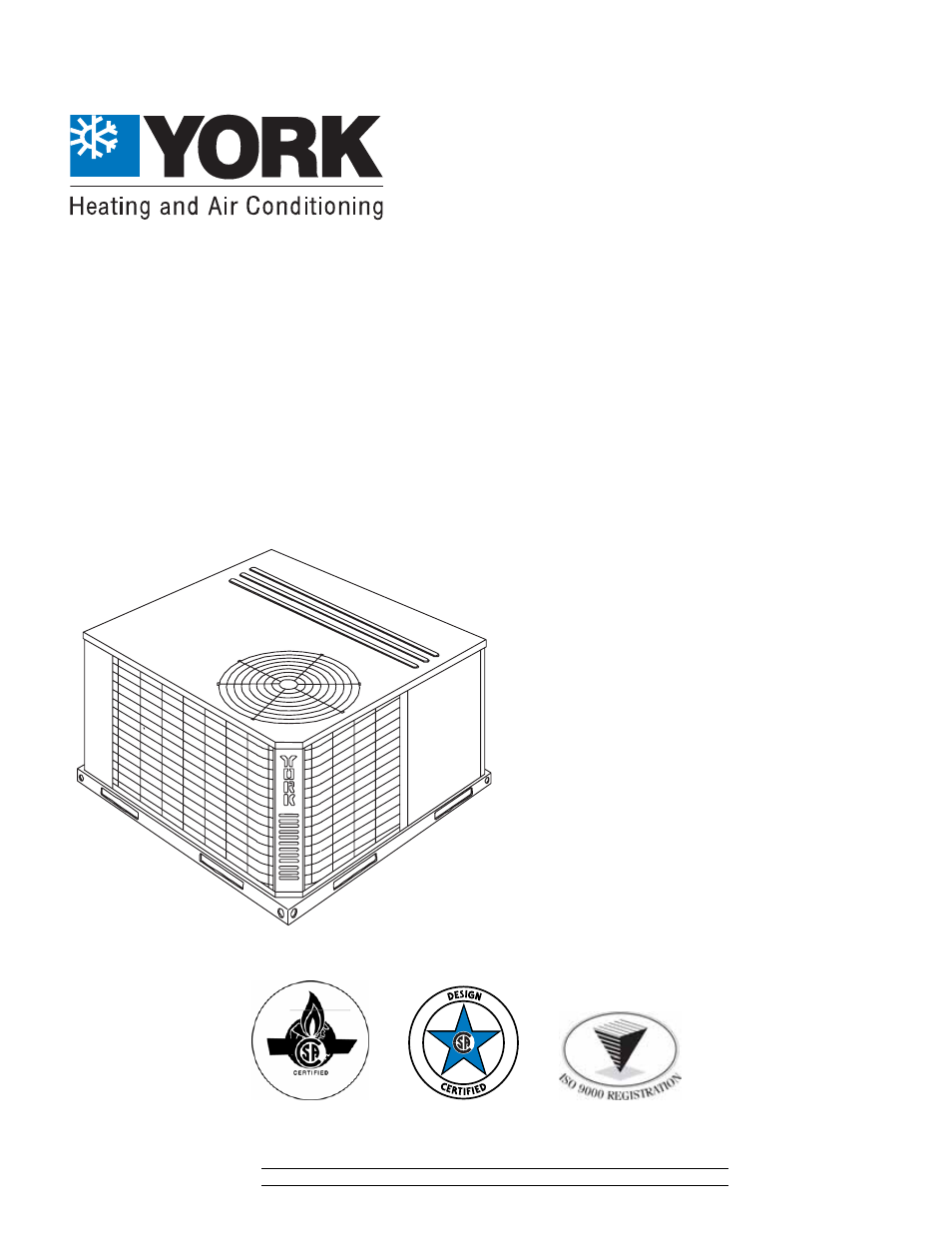

AFFINITY™ SERIES

SINGLE PACKAGE
COOLING UNITS

D2EB018 THRU 060
1.5 THRU 5 TON
8.8 - 9.4 EER
EXPORT

ISO 9001

Certified Quality

Management System
