York SUNLINE PLUS D1EE036 - Manual (Page 24)

036-21411-002-A-0204
24 Unitary Products Group

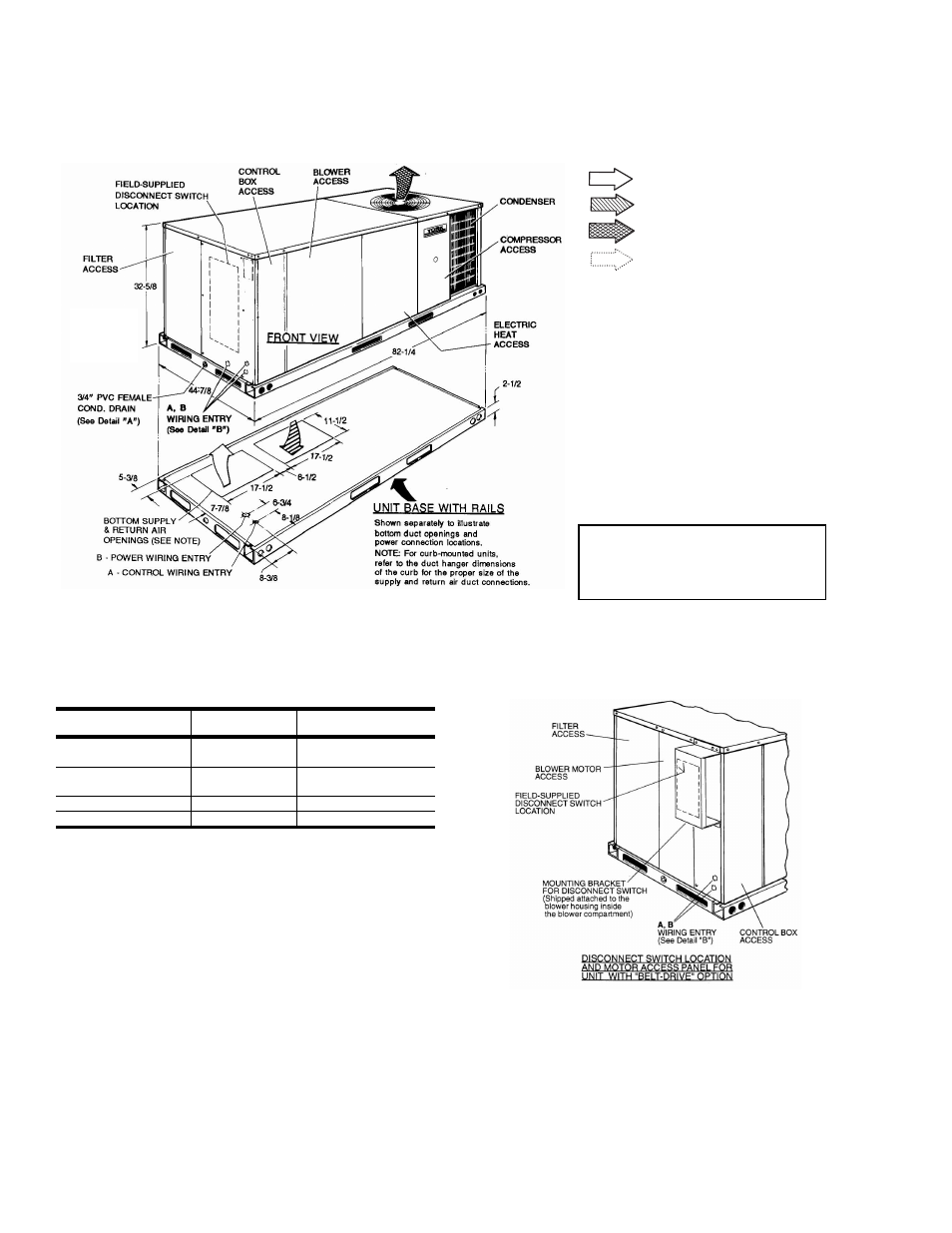

FIGURE 9 - UNIT DIMENSIONS DEE 3, 4, & 5 TON
DEE UNITS
3-5 TON
TABLE 23: UTILITIES ENTRY DATA
HOLE
KNOCKOUT
SIZE (DIA.)
USED FOR
A 7/8” 1
1. Knockouts in the bottom of the unit can be located by
the slice in the insulation.
Control Wiring (Side or
Bottom) 2
2. DO NOT remove the 2” knockout ring.
B 2”
Power Wiring (Side or
Bottom)
C 1-5/8” Gas Piping (Front)
D 1-1/2” Gas Piping (Bottom)
FIGURE 10 -ACCESS PANELS AND DISCONNECT
R E T U R N A I R
S U P P L Y A I R
O U T D O O R A I R
O U T D O O R A I R
( E c o n o m i z e r )
All dimensions are in inches. They are
subject to change without notice. Cer-
tified dimensions will be provided upon
request.
