Prestige 2602HW Series Quick Start Guide
8

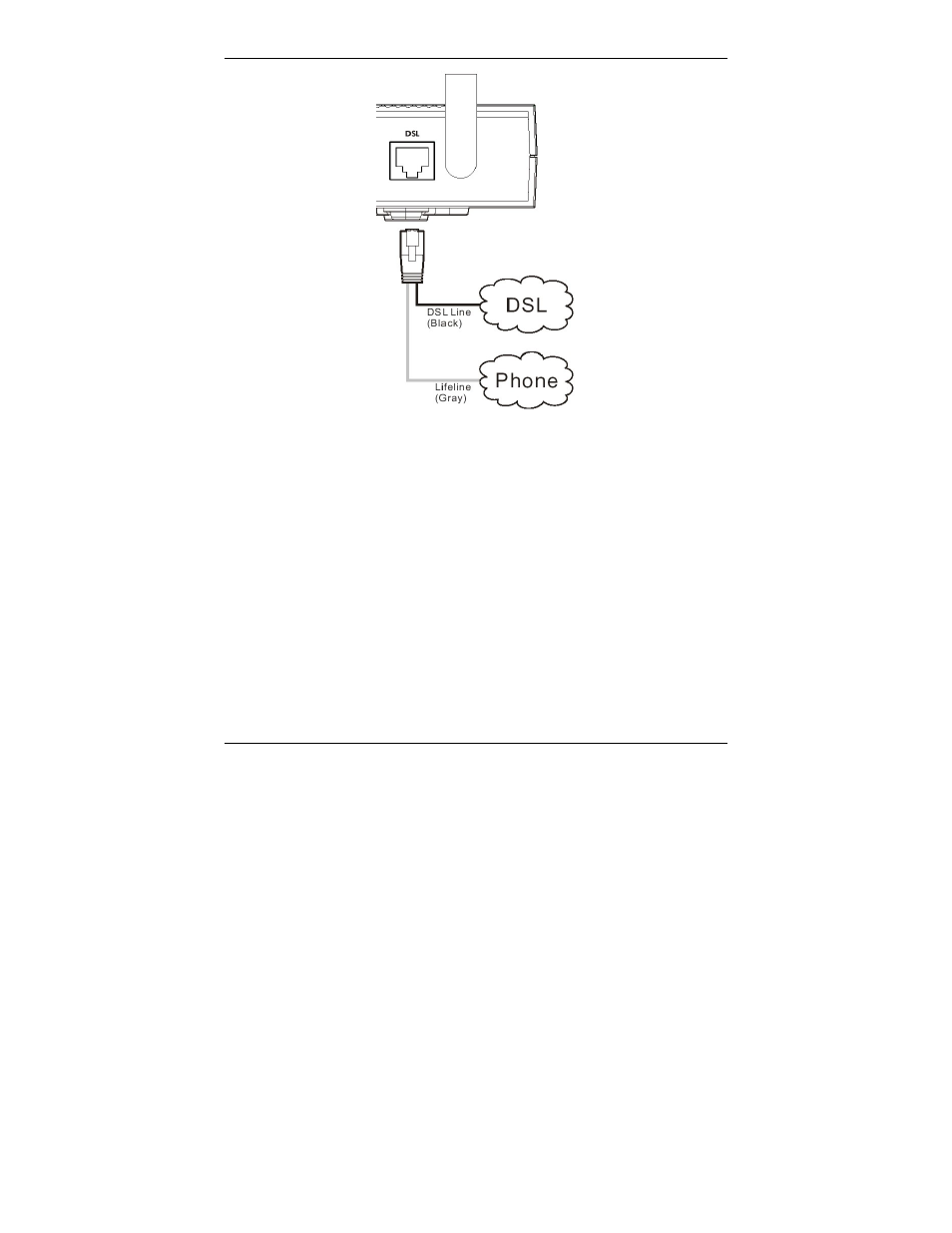

Figure 2 Prestige 2602HWL Phone and DSL Connections
The DSL port handles both the ADSL and regular telephone service connections. The
phone line port is also known as an FXO (Foreign Exchange Office) port.
1. The P2602HWL includes a v-shaped cable with one black wire and one gray wire.
Connect the end where the wires join to the P2602HWL’s DSL port.
2. Connect the black wire to the “modem” jack on a telephone or ISDN splitter (not
included).
3. Connect the gray wire to the splitter’s “phone” jack or a telephone wall jack.
" If you are using T-ISDN (UR-2), connect the gray wire to the (included) UR-
2 to TAE connector before connecting it to the telephone splitter’s “phone”
jack or a telephone wall jack.
4. Connect the splitter’s “line” jack to a telephone (or ISDN) wall jack.
