Prestige 2602HW Series Quick Start Guide
6

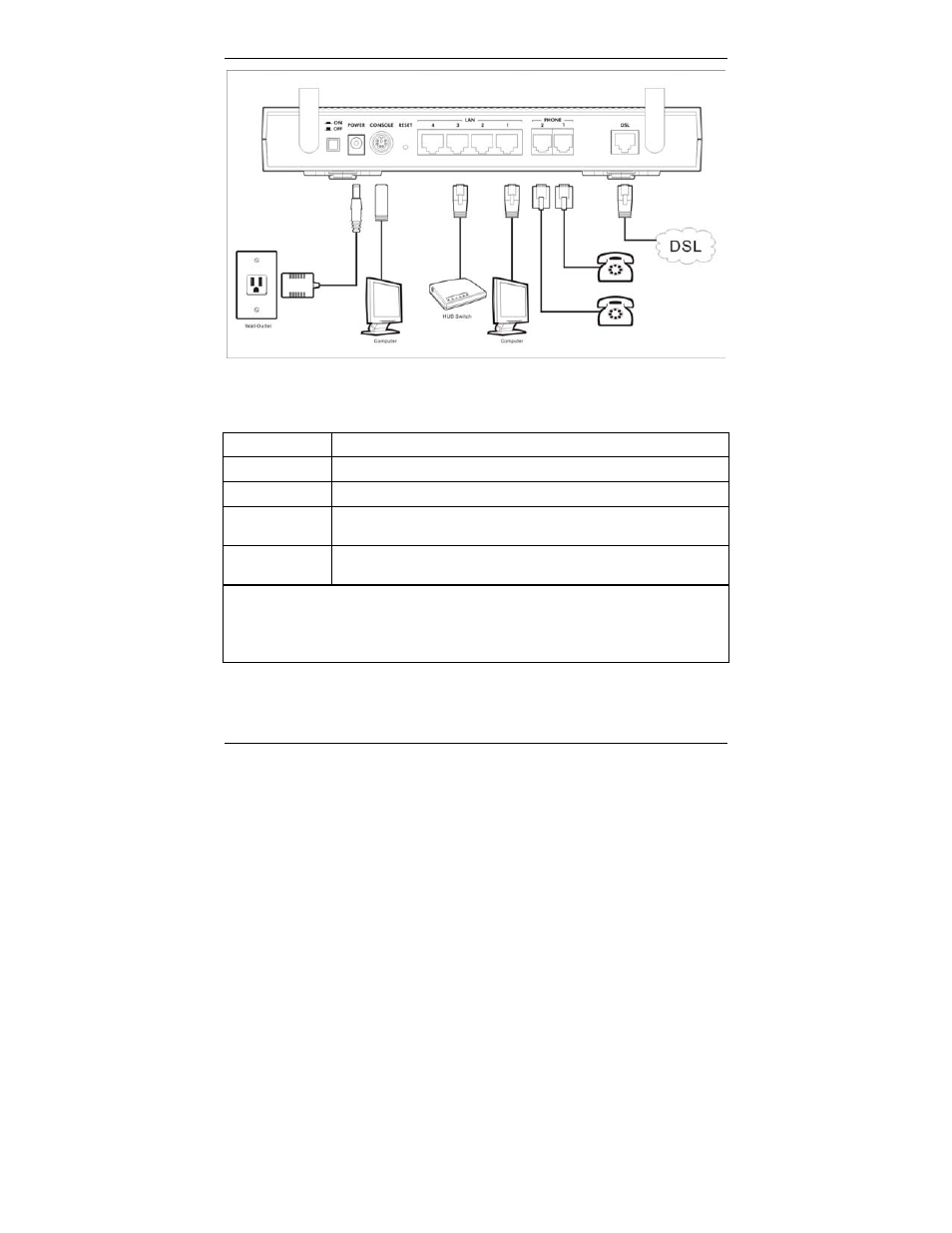

Figure 1 Rear Panel Hardware Connections
Table 1 Rear Panel Description
LABEL DESCRIPTION
1. DSL Connect to a telephone jack using the included telephone wire.
2. LAN 1..4 Connect to a computer/external hub using an Ethernet cable.
3. PHONE
1~2
Connect analog telephones to these ports using telephone wire.
These are also known as FXS (Foreign Exchange Station) ports.
4. POWER
18V DC
Connect to a power source using only the included power adaptor for
your region (see your User’s Guide).
After you’ve made the connections, connect the power adaptor to a power supply and
push in the power button to turn on the Prestige.
The PWR/SYS LED blinks while performing system testing and then turns steady on if
the testing is successful. A LAN LED turns on if a LAN port is properly connected.
