CLP-990
Connections
2.
Using a MIDI interface and the Clavinova’s MIDI connectors

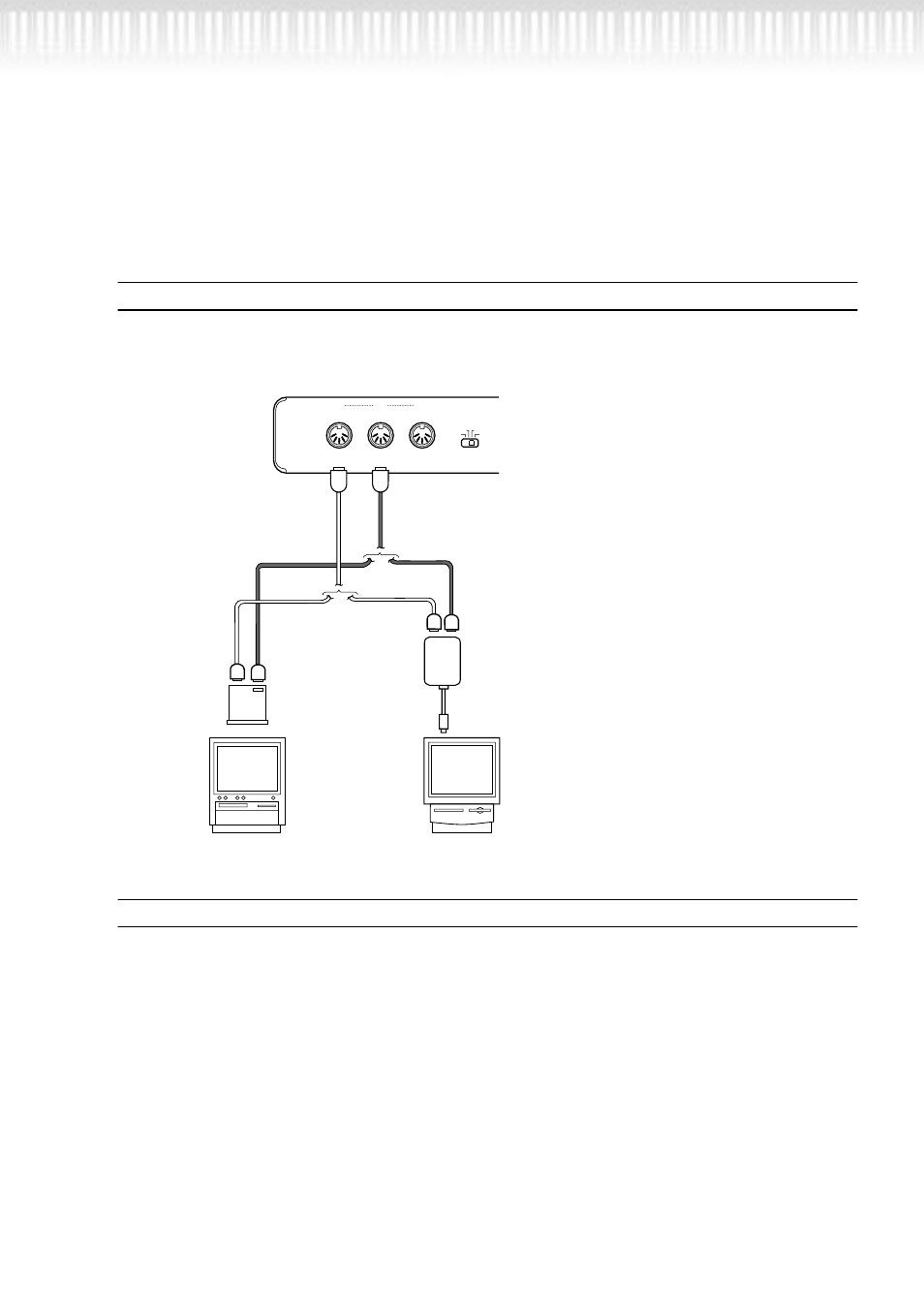

Connection
Use a MIDI interface device to connect a computer to the Clavinova using special MIDI cables.
Clavinova HOST SELECT switch setting
Set the Clavinova HOST SELECT switch to “MIDI.”
MIDI
OUT IN THRU
HOST SELECT
PC-1 PC-2
Mac MIDI
Clavinova
Windows Macintosh
MIDI
OUT
MIDI
OUT MIDI
IN
MIDI
IN
MIDI
OUT
MIDI
IN
MIDI interface
MIDI interface
