Select the source to be recorded.
2
Play the source and then turn the VOLUME control up
to confirm the input source. (For detailed information
on the tuning operations, refer to the page 20.)
3
Begin recording on the tape deck (or MD recorder etc.)
or VCR connected to this unit.
4
If the tape deck (or MD recorder etc.) is used for
recording, you can monitor the sounds being recorded
by pressing TAPE/MD MONITOR so that the “TAPE
MONITOR” indicator lights up on the display.
Note
The settings of DSP and the VOLUME, BASS, TREBLE and
BALANCE controls have no effect on the material being
recorded.
l6
20
28
40
60
l2
8
4
2
0
–dB
VOLUME

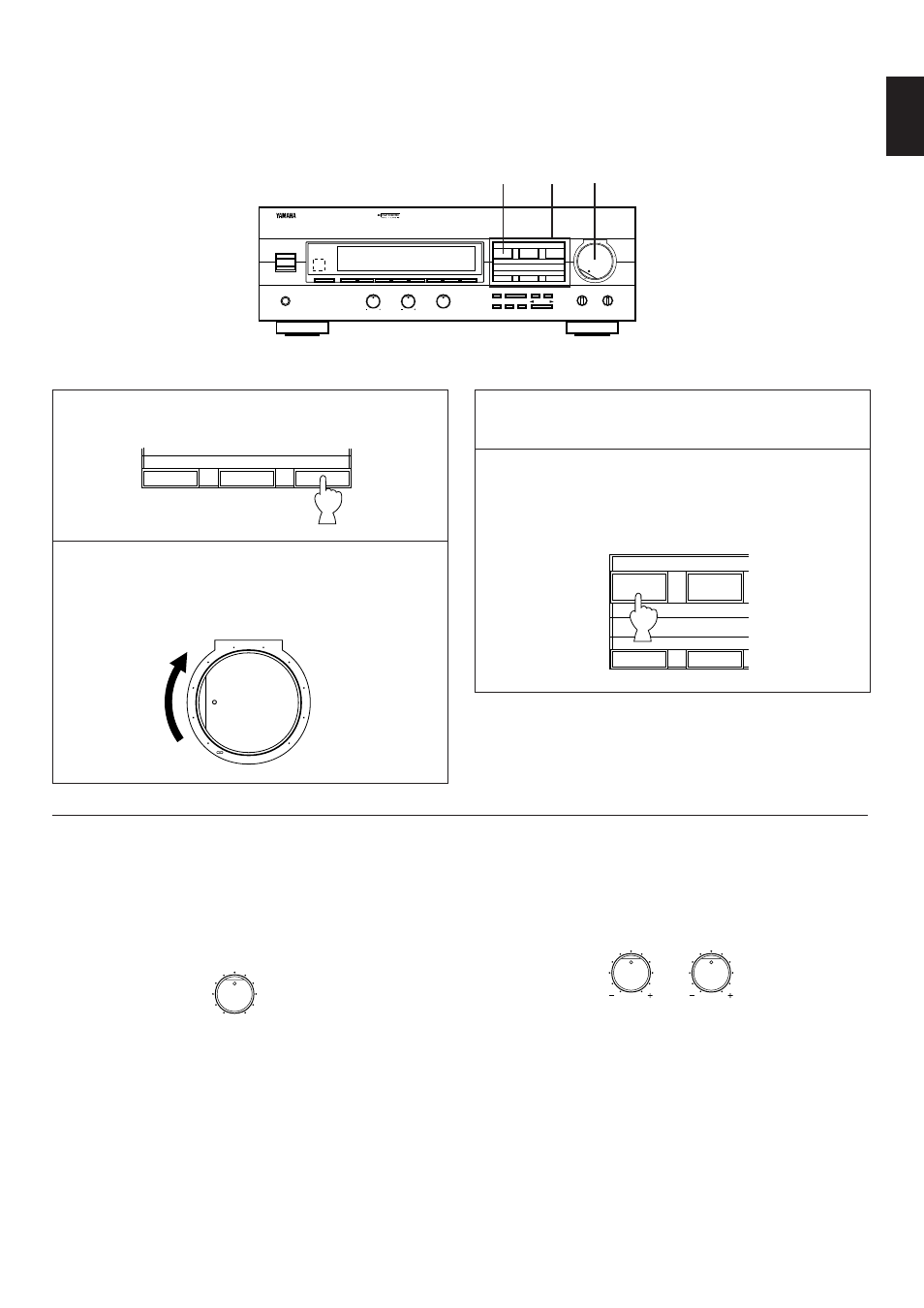

TO RECORD A SOURCE TO TAPE (OR MD)
