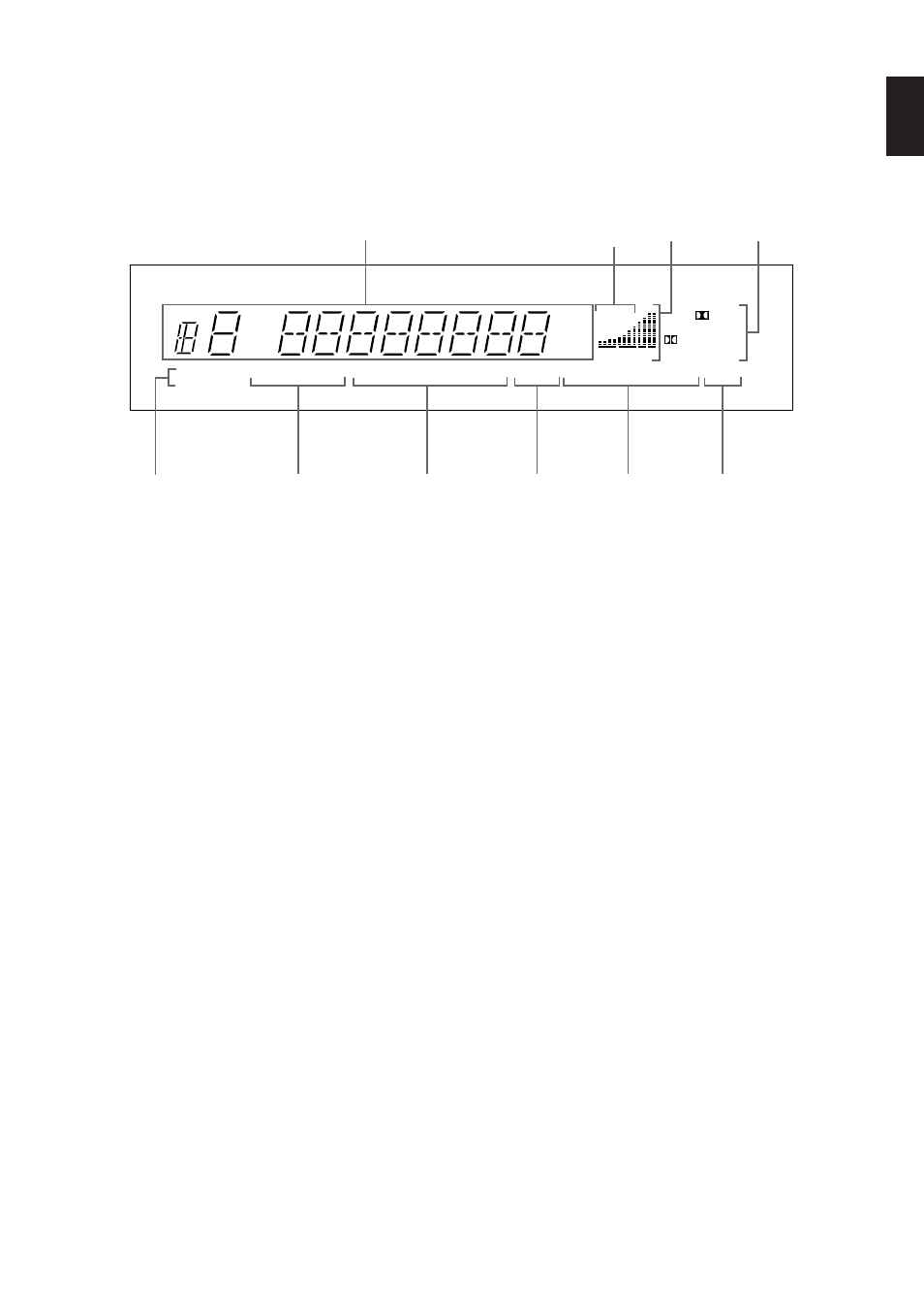

DISPLAY PANEL
1
Multi-information display
Displays various information, for example station frequency,
preset station number and name of selected input source.
2
STEREO indicator
Lights up when an FM stereo broadcast with sufficient signal
strength is received.
3
Signal-level meter
Indicates the signal level of the received station.
If multipath interference is detected, the indication decreases.
4
DSP program indicators
The name of a selected DSP program lights up when the built-
in digital sound field processor and/or the Dolby Pro Logic
Surround decoder is on.
5
MEMORY indicator
When the MEMORY button is pressed, this indicator flashes
for about 5 seconds. While this indicator is flashing, the
displayed station can be programmed to the memory by using
the A/B/C/D/E button and the preset station number selector
buttons.
6
AUTO TUNING indicator
Lights up when this unit is in the automatic tuning mode.
7
TAPE MONITOR indicator
Lights up when the tape deck (or MD recorder etc.) is selected
as the input source by pressing the TAPE/MD MONITOR
button.
8
SLEEP indicator
Lights up while the built-in SLEEP timer is functioning.
9
Center channel mode indicators
The name of a selected center channel mode lights up only
when a program which uses the Dolby Pro Logic Surround
decoder is selected.
0
TEST indicator
Flashes when the built-in test tone generator is functioning
(when the test-tone is output from speakers).
