CONTROLS AND THEIR FUNCTIONS

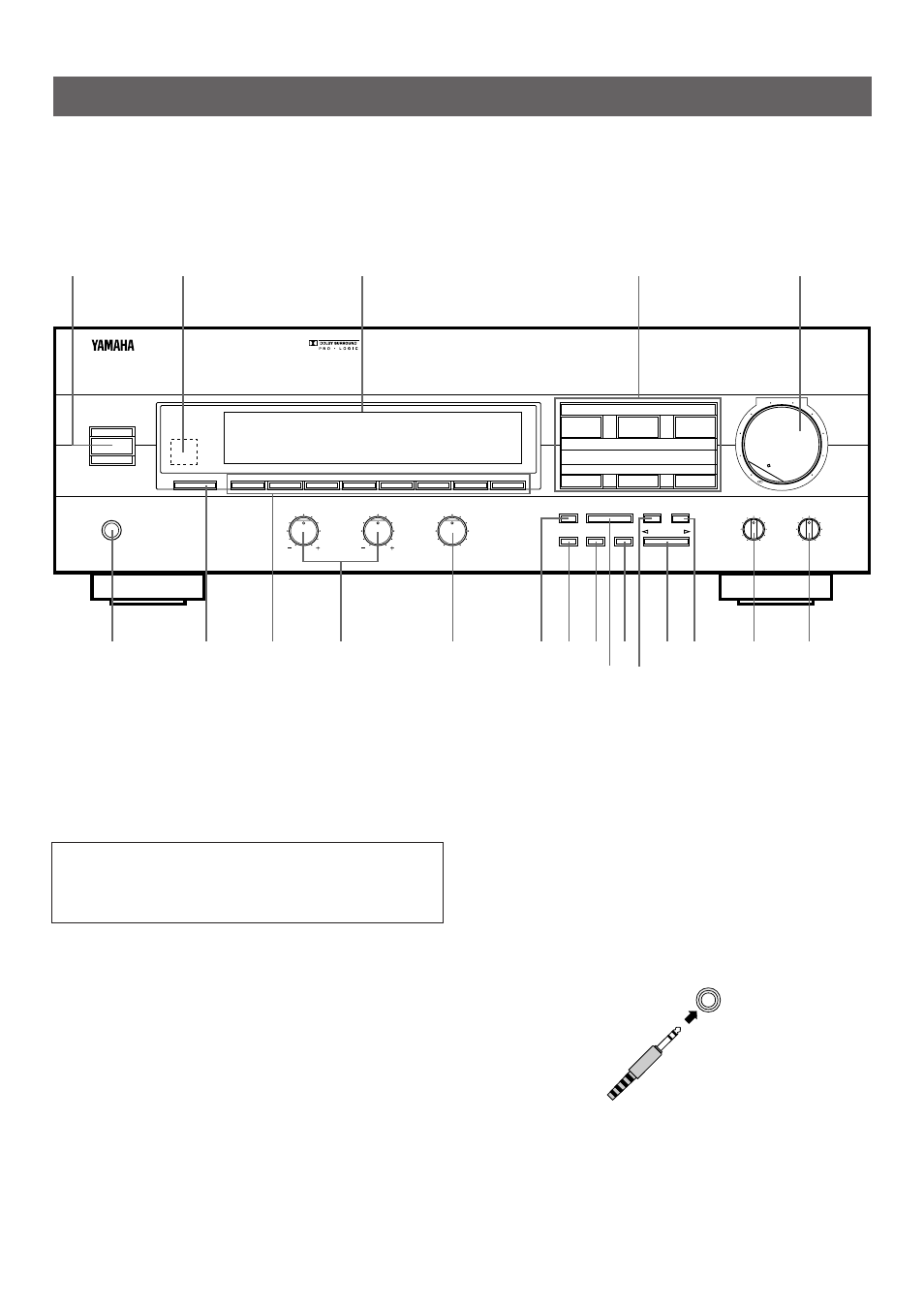

FRONT PANEL
STANDBY/ON
NATURAL SOUND AV RECEIVER
PHONES
BASS
TREBLE BALANCE
VOLUME
5
5
4
3
2
l
0
l
2
3
4
5
5
4
3
2
l
0
l
2
3
4
L
R
l6
20
28
40
60
l2
8
4
2
0
–dB
5
5
4
3
2
l
0
l
2
3
4
FM/AM
MAN'L/AUTO FM
TUNING
MODE
AUTO/MAN'L MONO
CENTER
MODE
DOWN TUNING UP
EFFECT
MEMORY
EDIT
PROGRAM
A/B/C/D/E
1
2
3
4
5
6
7
8
TAPE/MD
MONITOR
VIDEO
VCR
TUNER
CD
PHONO
REAR
LEVEL
CENTER
LEVEL
0
l0
0
l0
1
6
7
8
9
0
B C E
G
I
J
H
A
F
D
2
3
4
5
1
STANDBY/ON switch
Press this switch to turn on the power to this unit. Press it
again to turn this unit into the standby mode.
Standby mode
In this state, this unit consumes a very small quantity of
power to receive infrared-signals from the remote control
transmitter.
2
Remote control sensor
Receives signals from the remote control transmitter.
3
Display panel
Shows various information. (For details, refer to page 15.)
4
Input selector buttons
Select a program source to listen to or watch. When a button is
pressed, the name of the selected source appears on the
display.
5
VOLUME control
Used to raise or lower the volume level.
6
PHONES jack
When you listen with headphones privately, connect the
headphones to the PHONES jack and switch off the digital
sound field processor (so that no DSP program name is
illuminated on the display) by pressing the EFFECT button.
You can listen to the sound to be output from the main
speakers through headphones.
PHONES
