Adjust the Volume Balance and Changing Voices — Mixing Console
CVP-210/208 130

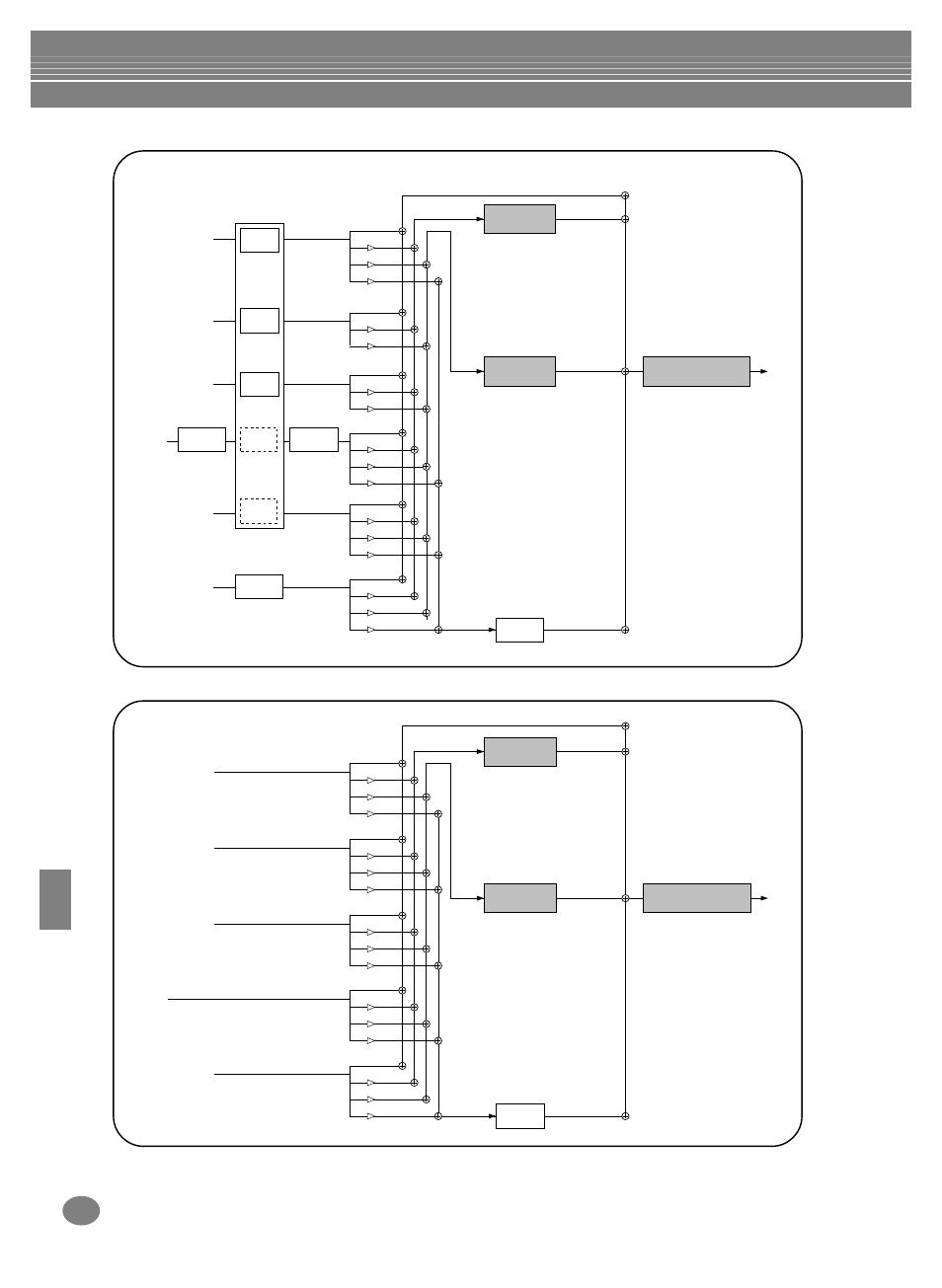

For Regular Voices (CVP-208)
OUT
Rev Send MAIN VOICE
Dry
Cho Send
DSP Send
Rev Send LAYER VOICE
Dry
Cho Send
Rev Send LEFT VOICE
Dry
Cho Send
Rev Send MIC
Dry
Cho Send
DSP Send
Rev Send
STYLE
(each channel)
Dry
Cho Send
DSP Send
CHORUS 1 Master EQ
REVERB 1
DRY LINE
DSP1
DSP1
MIC
Effect
Vocal
Harmony
When DSP is set
as an Insertion effect
(here PART is set to one
of the STYLE channels)
it is put here in the signal flow.
When DSP is set as a System effect,
it is put here in the signal flow.
Unused DSP blocks are automatically
assigned to the active parts.
Rev Send
SONG
(each channel)
Dry
Cho Send
DSP Send
DSP3
DSP4
DSP5
For Natural Voices
OUT
Rev Send MAIN VOICE
Dry
Cho Send
DSP Send
Rev Send LAYER VOICE
Dry
Cho Send
DSP Send
Rev Send LEFT VOICE
Dry
Cho Send
DSP Send
Rev Send MIC
Dry
Cho Send
DSP Send
Rev Send
Dry
Cho Send
DSP Send
CHORUS 2 BRILLIANCE
REVERB 2
DRY LINE
DSP2
STYLE/SONG
(each channel)
