Dimension GS-3012 Gigabit Ethernet Switch

3-4

Hardware Connections

Transceiver Removal

Use the following steps to remove a mini GBIC transceiver (SFP module).

Step 1.

Open the transceiver’s latch (latch styles vary).

Step 2.

Pull the transceiver out of the slot.

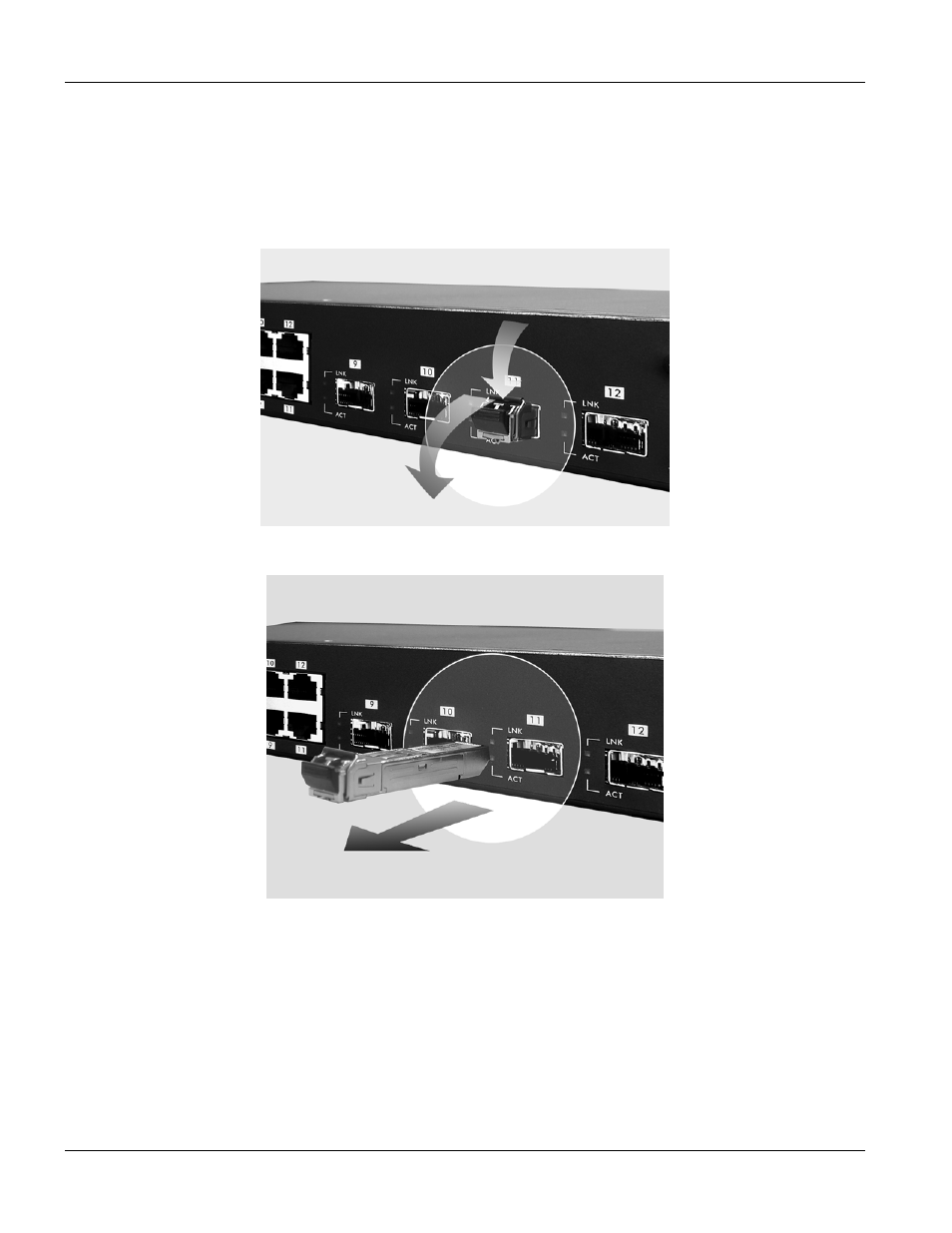

Figure 3-4 Opening the Transceiver’s Latch Example

Figure 3-5 Transceiver Removal Example

3.2.4 Management

Port

The MGNT (management) port is used for local management. The port is not used for network data transmission
meaning that it is out-of-band. Connect directly to this port using an Ethernet cable. You can configure the switch
via Telnet or the web configurator.

The default IP address of the management port is 192.168.0.1 with a subnet mask of 255.255.255.0.
