Dimension GS-3012 Gigabit Ethernet Switch
Hardware Connections 3-3
Type: SFP connection interface
Connection speed: 1 Gigabit per second (Gbps)
Transceiver Installation
Use the following steps to install a mini GBIC transceiver (SFP module).
Step 1. Insert the transceiver into the slot with the exposed section of PCB board facing down.
Step 2. Press the transceiver firmly until it clicks into place.
Step 3. The switch automatically detects the installed transceiver. Check the LEDs to verify that it is functioning
properly.

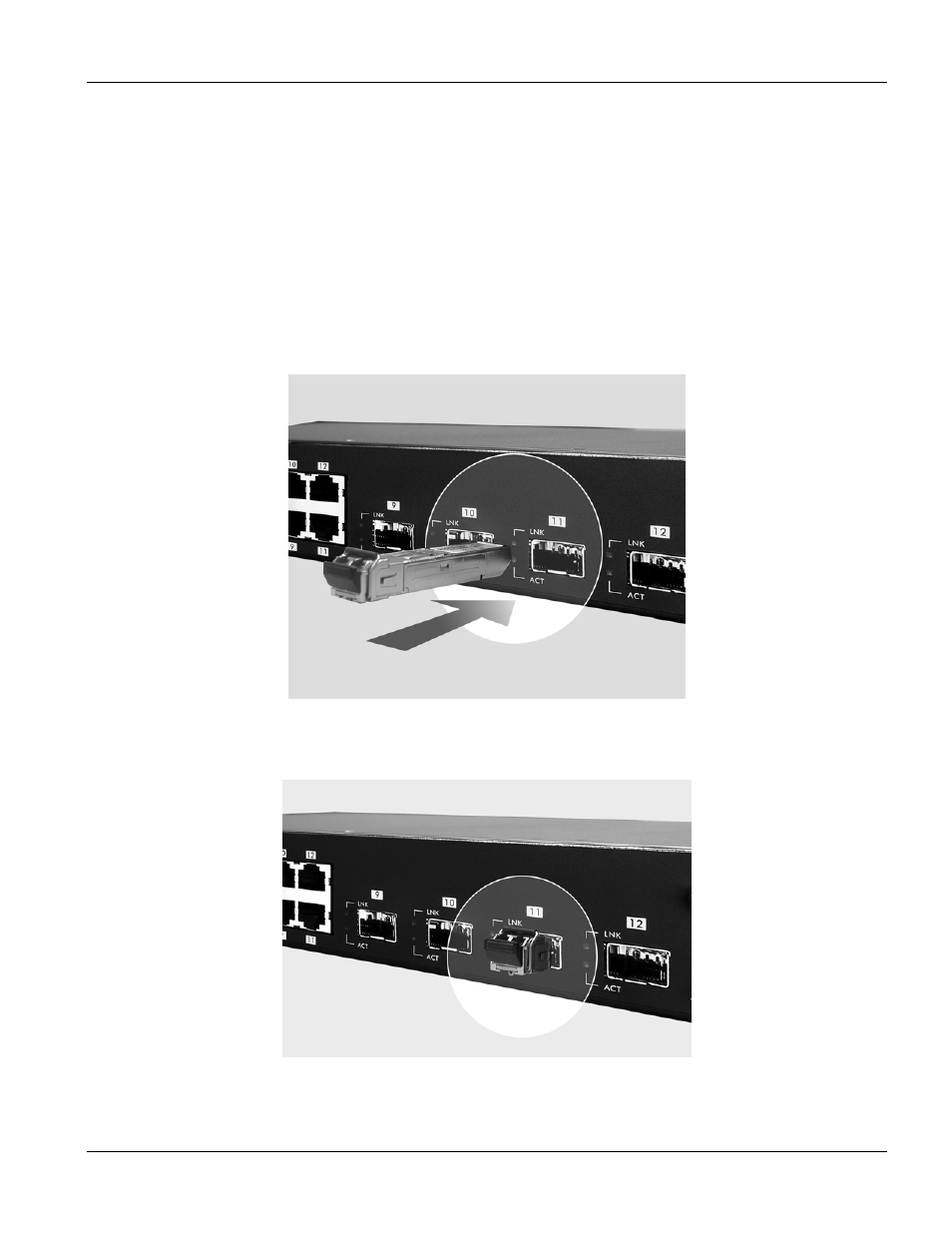

Figure 3-2 Transceiver Installation Example
Figure 3-3 Installed Transceiver
