SPEAKER SETUP
5

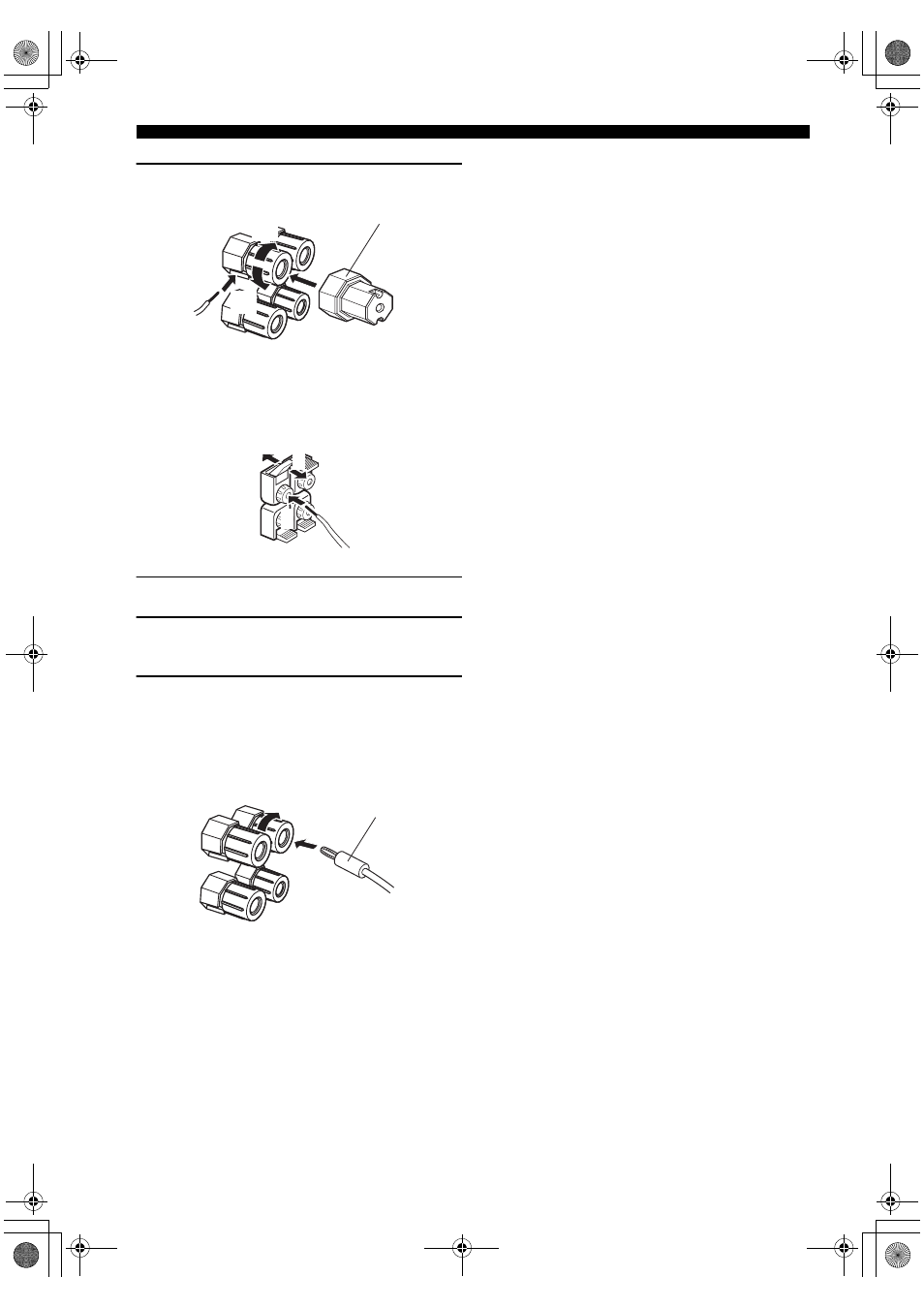

Tighten the knob to secure the wire.
■ Connecting to PRESENCE/ZONE 2 or
PRESENCE speaker terminals
1
Open the tab.
2
Insert one bare wire into the hole of each
terminal.
3
Return the tab to secure the wire.
■ Banana plug connections
First, tighten the knob and then insert the banana plug
connector into the end of the corresponding terminal.
y
You can also use banana plugs with the PRESENCE/ZONE 2 and
PRESENCE speaker terminals. Open the tab, then insert one
banana plug connector into the hole of each terminal. Do not
attempt to close the tabs after connecting the banana plugs.
Red: positive (+)
Black: negative (–)
5
4
3
Speaker terminal wrench
2
1 3
Banana plug
