Introduction
1–4 152602
shutdown. The Master inverter will disable the Slave inverter and
close the contactor in the
GT100E MS Combiner Box. The Master
inverter will go online.
Fault Condition
If the Master or Slave Inverter gets a fault or the status signal from either
inverter is lost, the inverters will shutdown and restart as stand alone
inverters.
Mis-configuration of Units
If the Master or Slave Inverter are mis-configured by the operator, the
inverters run as stand alone inverters.

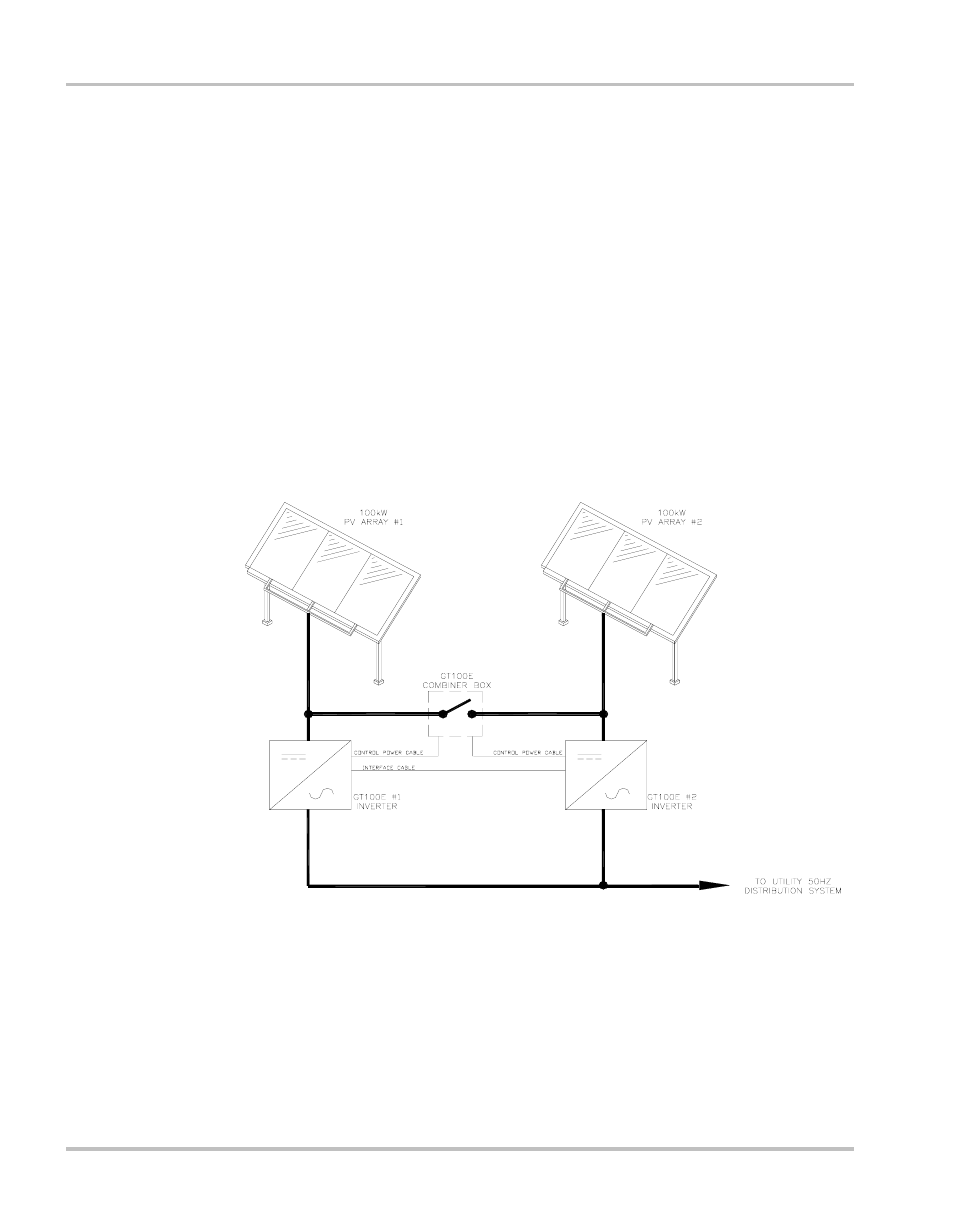

Figure 1-1 Configuration Diagram
