Table 15 rj-45 connector pin assignments, Cable pin assignments – ZyXEL Communications PLA-4xx Series User Manual
Page 58
Appendix A Product Specifications
PLA-4xx Series User’s Guide
58

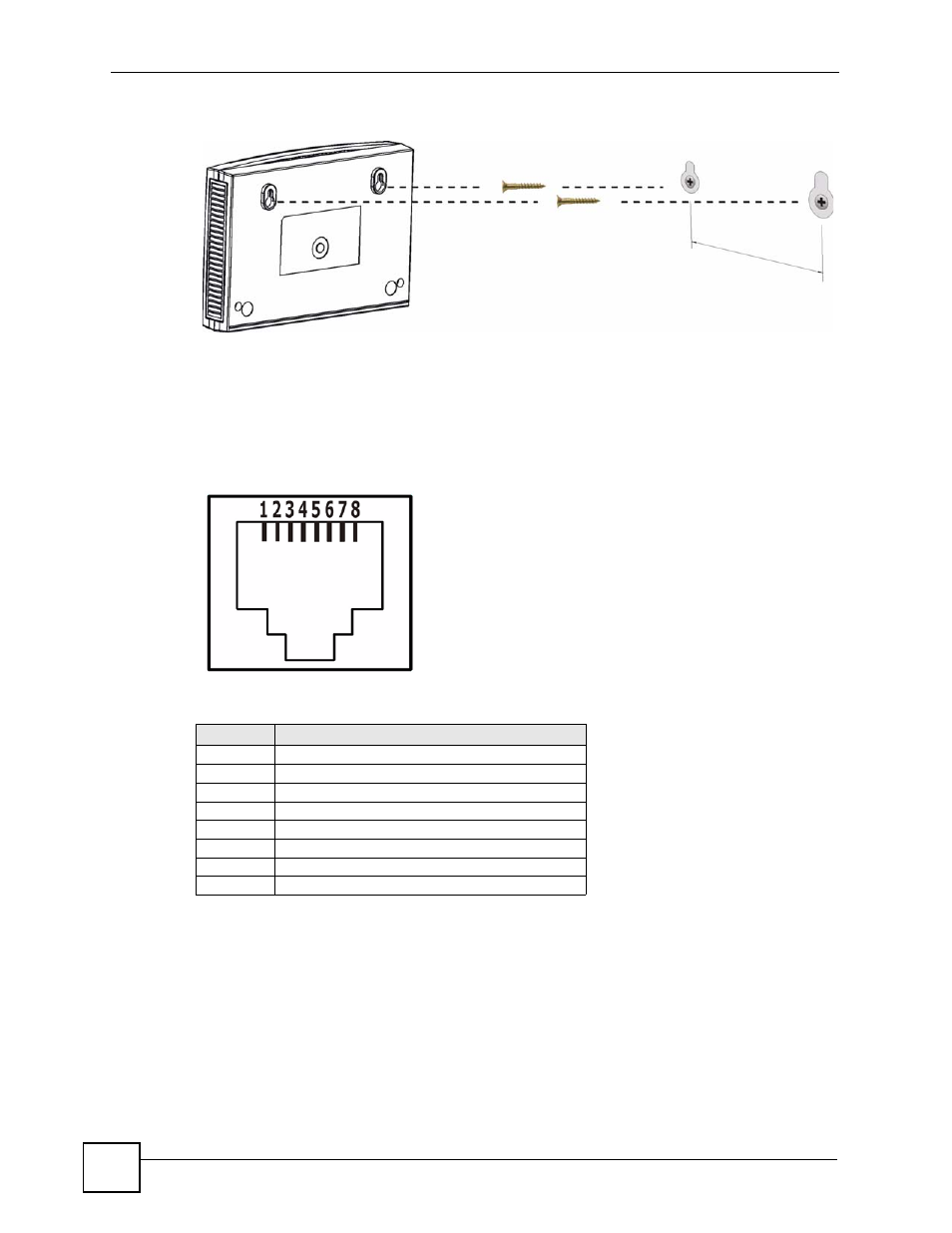

Figure 36 Wall-mounting Example
Cable Pin Assignments
RJ-45 Connector Pin Assignments
Figure 37 RJ-45 Connector Pins
Table 15 RJ-45 Connector Pin Assignments
PIN NO
RJ-45 SIGNAL ASSIGNMENT
1
RxD +
2
RxD -
3
TxD +
4
Not connected
5
Not connected
6
TxD -
7
Not connected
8
Not connected
