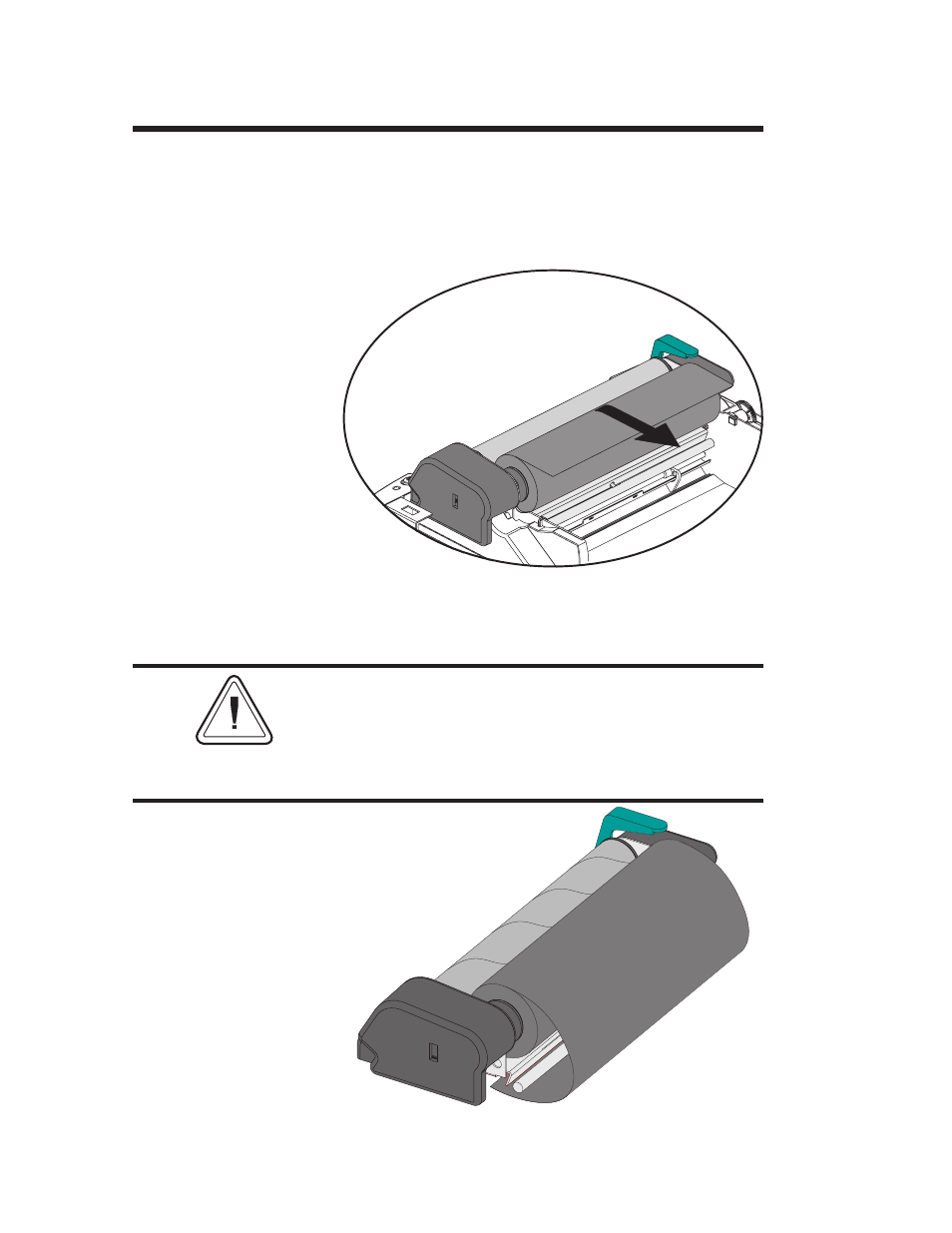

Step ➌ Install the ribbon roll onto the rear ribbon
(supply) spindle pair so that the ribbon feeds
from the top of the roll toward the back of the
printer. The ribbon roll installs the same as the
ribbon (take-up) core.
Wrap the ribbon around the print carriage,
aound the ribbon tracking bar and above the
media guide bracket.
Caution:
The ribbon does not follow the same path as the
labels. The ribbon threads above the brackets
that hold the media guides and transmissive
(gap) sensor guide bar.
