Step 10 When using the transmissive (gap) sensor for
top of form (label) sensing, verify that the sen-
sor is positioned at minimum label gap point or
centered over a tag hole. See Top of Form
Sensing, page 32, for more details on sensor
operation.

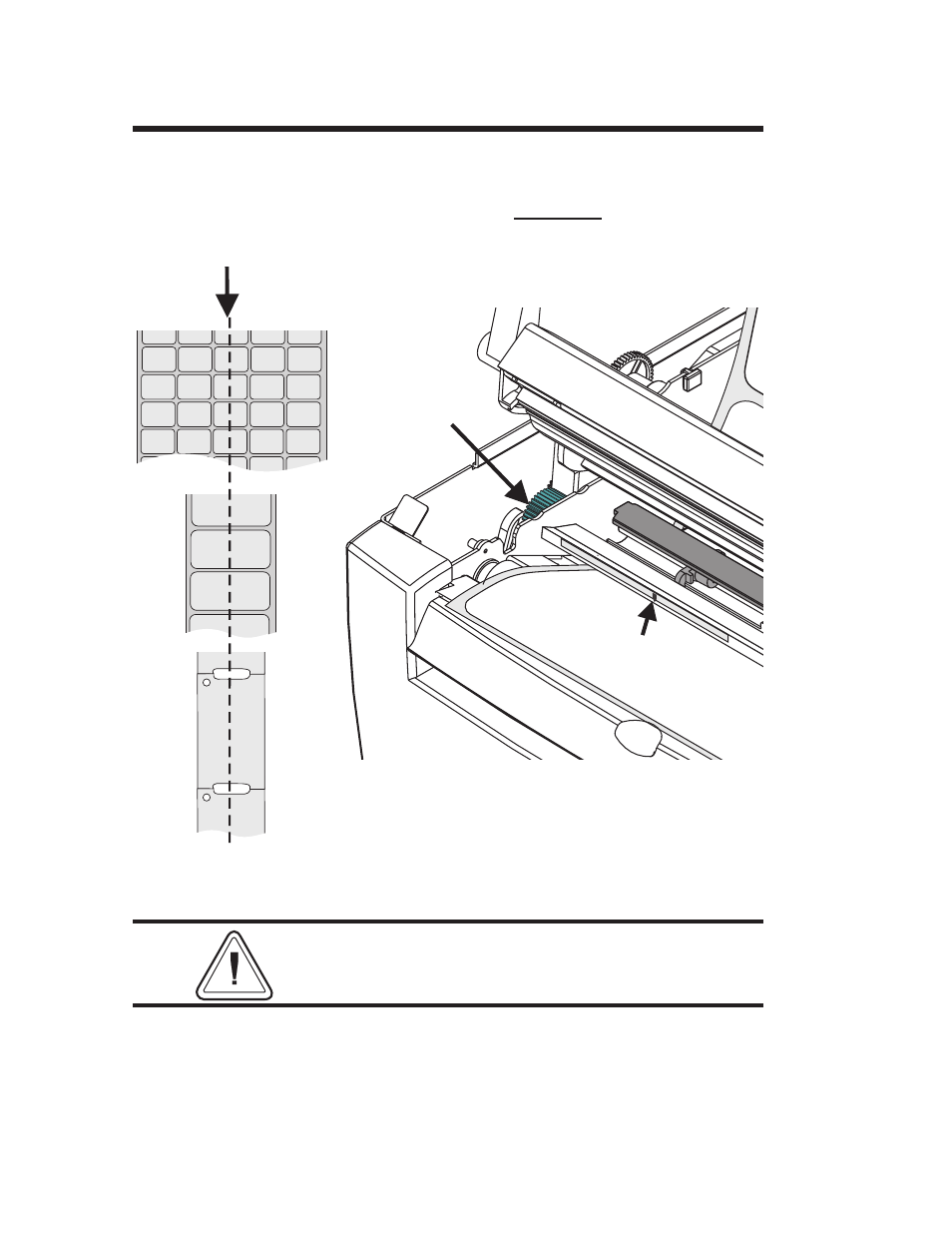

Turn the sensor’s adjustment wheel towards the
rear of the printer to move it into the middle.
Turn it towards the front of the printer to move it
out to the media edge. Do not position the sen-
sor at the edge of media.
Center the transmissive (gap) sensor for most
labels and always center it for continuous
media.
22
980181-001 Rev.C
Operation
Adjustment
Wheel
Sensor
Position
Marker
Sensor
Position
