Your new DTF-720
Page 9

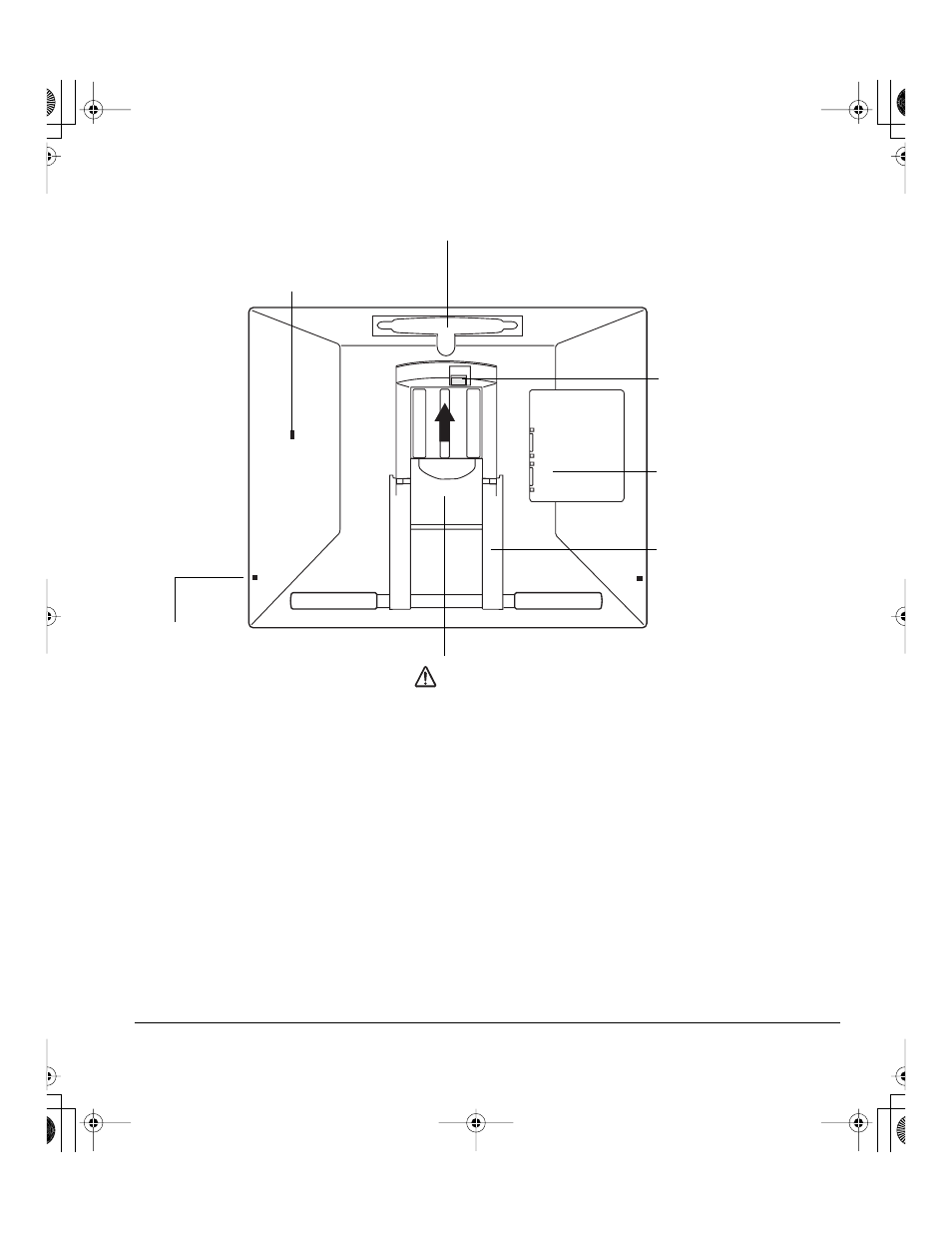

REAR VIEW
Important: Always store the pen display on a stable surface or in its original packing carton
when not in use. Be sure to adjust the stand to the low tilt position before packaging the
DTF-720. If you do not close the stand, the notched mechanism may be damaged during
transportation and storage.
Do not lift the unit by the stand; this may damage the stand mechanism. When lifting or moving
the DTF-720, always do so by grasping the main body casing.
Video, USB, and
power connectors
Kensington security slot
Allows easy attachment of a security cable.
Pen tether attachment point
If you will be using the pen
tether, connect it to the
attachment point located on the
left or right side of the unit.
Stand adjustment lever
Pull this lever to adjust the
stand. Release the lever
to lock the stand in place.
C AUTION Be careful to avoid catching
your finger in the gap of the
movable portion of the stand.
Stand
The stand can be used
to adjust the tilt angle of
the unit.
Pen storage compartment
