Raises and lowers squeegee assembly, Controls flow of cleaning solution to floor, Controls electric power to all switched components – Windsor COMPACT PTC17 User Manual

Page 3: Indicates charge condition of batteries

background image

‘I

SQUEEGEE

SOLUTION

MAIN

BATTERY

SOLUTION

VACUUM

BRUSH

SCRUB

LEVER

CONTROL

SWITCH

“ON”

“ON” LIGHTED “ON” LIGHTED LIFT LEVER

LEVER

LIGHT

LIGHT

SWITCH

SWITCH

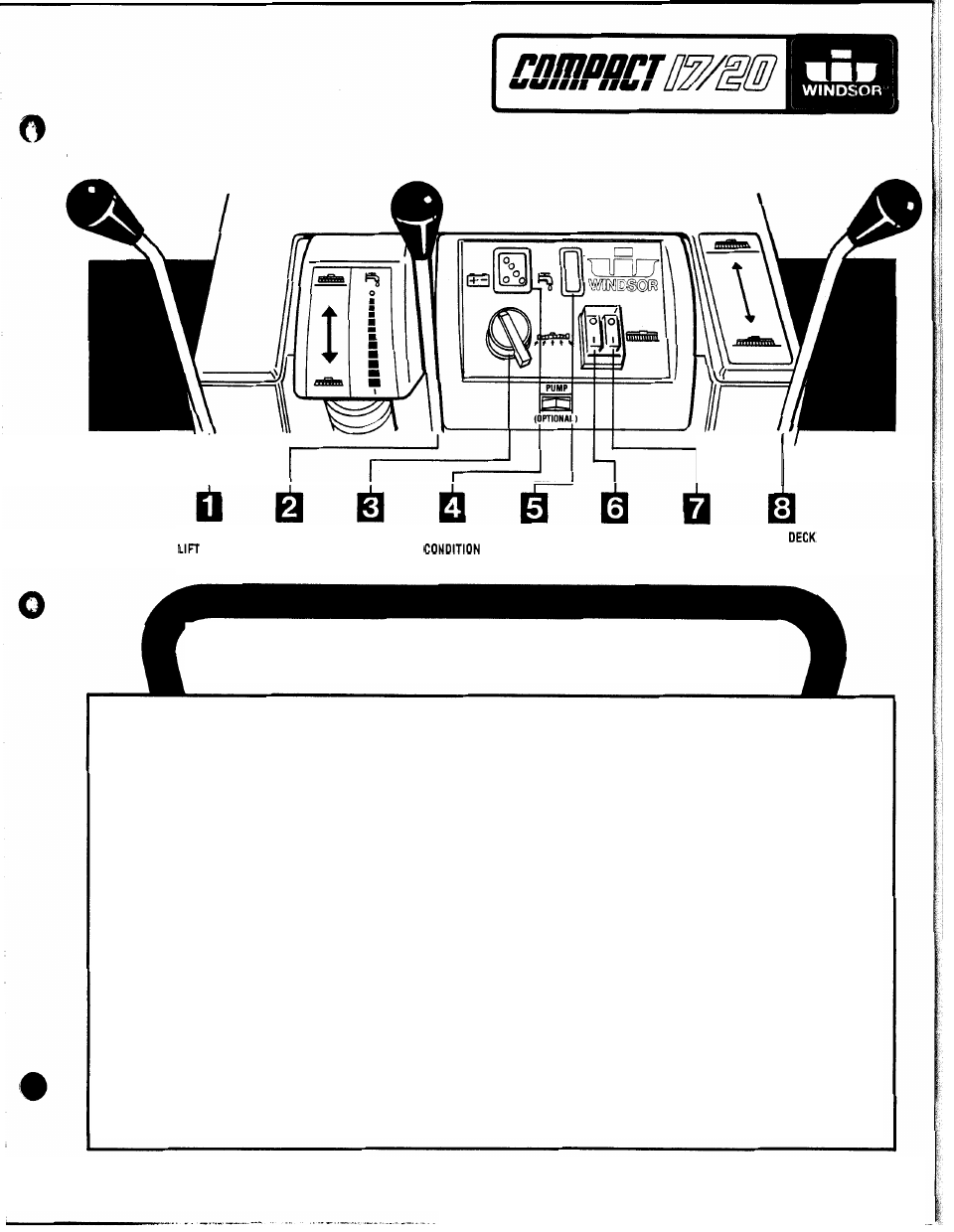

OPERATOR CONTROL HANDLE

1.

Raises and lowers squeegee assembly.

2.

Controls flow of cleaning solution to floor.

3.

Controls electric power to all switched components.

4.

Indicates charge condition of batteries.

5.

Light “ON” indicates solution valve is open.

6.

Switches on vacuum motor.

7.

Switches on brush drive motor.

8.

Raises and lowers scrub deck assembly.

3

.
