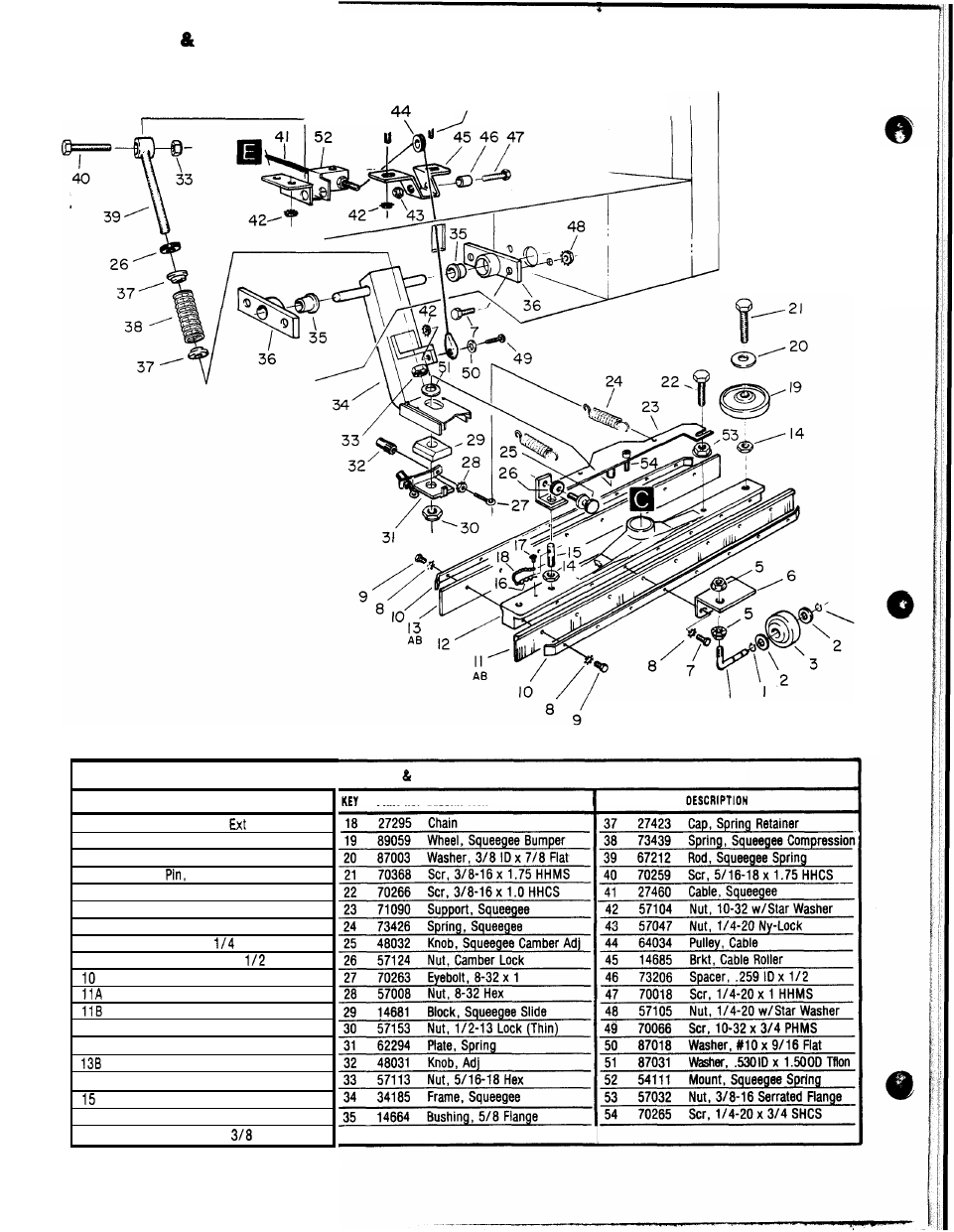

SQUEEGEE SQUEEOEE LIFT MECHANISM
Frame
I
-
Frame
4
KEY PART NO. OESCRIPTION
1 67103 Ring, 5/16 Snap
2 87029 Washer, 5/16 Flat
3 89058 Wheel, Squeegee Roller
4 66108 Squeegee Wheel
5 57112 Nut, 5/16-18 Flange
6 14482 Brkt, Squeegee Wheel
7 70011 Scr, 1/4-20 x 5/8 HHMS
8 87025 Washer, Star
9 70020 Scr, 1/4-20 x HHMS
67217 Retainer, Squeegee
73416 Squeegee Blade, Rear
02165 Squeegee Blade, Urethane
12 73428 Squeegee Shoe
13A 73415 Squeegee Blade, Front
02165 Squeegee Blade, Urethane
14 57085 Nut, 3/8-16 Hex Jam
14483 Bolt, Squeegee Stud
16 66092 Pin, Hair Spring Cotter
17 70098 Scr, 8-32 x PHST
12
SQUEEGEE SQUEEGEE LIFT MECHANISM
PART NO. OESCRIPTION KEY PART NO.
36 27382 Collar, Squeegee
