TECHNICAL SPECIFICATIONS

CMPS 86290230 02/22/07


ITEM DIMENSION/CAPACITY
Electrical

115V, 12A, 60HZ

Electric Pump Motor

1/3hp, 1725rpm

Solution Pump

500psi (34 bars), Axial plunger

Electric Vacuum Motor

2stage, 1.25hp (2.80m

3

/min.)

Waterlift

82 in. (208 cm)

Solution Capacity

29 gallons (111L)

Recovery Capacity

19 gallons (70L)

Wheels
-

Front (2)

-

Rear (2)


6 in. dia. (15.24cm) X 1.5
12 in. dia. ( 30.48cm)X 1.75

Dimensions – Weight (CMPS)

155 lb. (70kg)

Dimensions – Weight (CMPSR)

157 lb. (71kg)

Dimensions – Length (CMPS)

36 in. (91.4cm)

Dimensions – Length (CMPSR)

41.5 (105.4 cm)

Dimensions - Height

43 in. (109.2cm)

Dimensions - Width

24.75 in. (62.87cm)

Power Cable

50 ft. (127m) 14 gauge

LENGTH

CMPS

WIDTH

HEIGHT

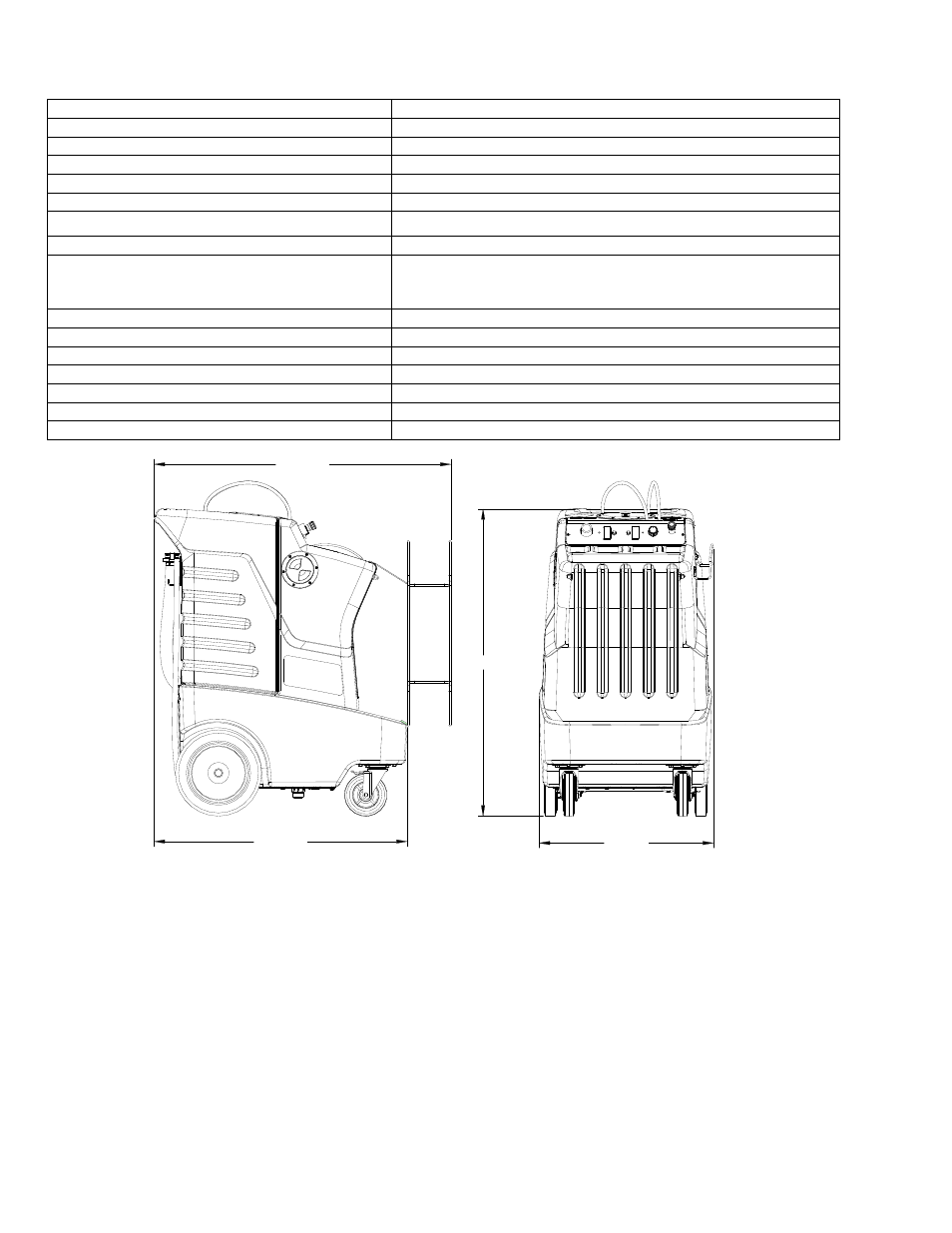

FRONT VIEW

SIDE VIEW

LENGTH
CMPSR*

*NOTE: Hose rack standard ONLY on CMPSR.

SPECIAL NOTES:

The sound pressure level at 1m from the machine was measured to be 79 dBA. This was a nearfield,
broadband measurement taken in a typical industrial environment on a tile floor. This appliance
contains no possible source of impact noise. The instantaneous sound pressure is below 63 Pa.

The weighted root mean square acceleration at the operator’s arms was measured to be below
2.5m/s

2

. This was a tri-axial, third-octave-band measurement made during normal operation on a

composite tile floor. The measurement and related calculations were made in accordance with ANSI
S3.34-T986.
